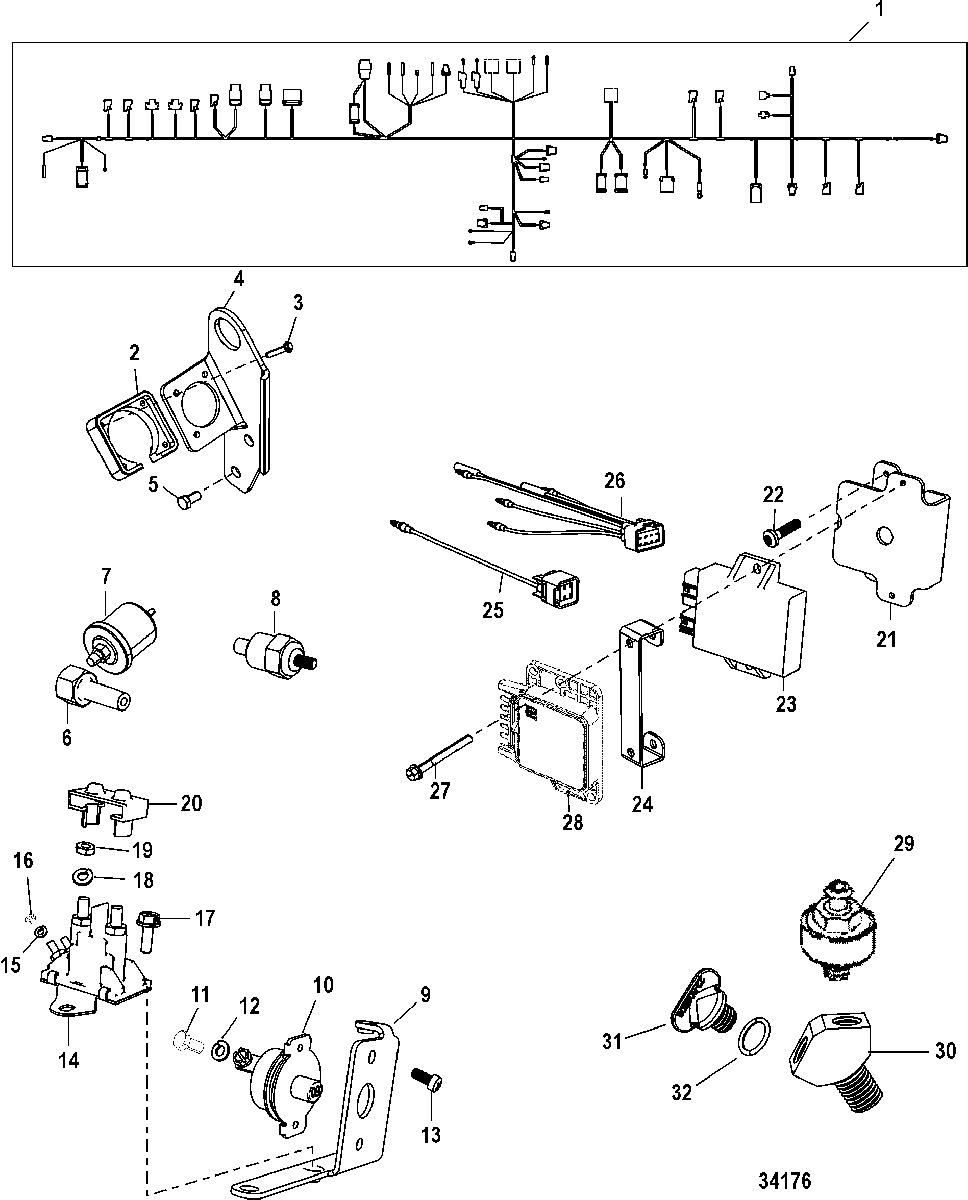

Electrical Components для Mercruiser - 350 (4BBL) Crate Inboard 1G800000 & Up

  • №
    Артикул
    Название
  • 1
    84-860216A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    865480T BRACKET
    BRACKET
  • 5
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 6
    22-8053281 FITTING, Elbow (90 Degree - .125)
    FITTING, Elbow (90 Degree - .125)
  • 7
    8M0068784 OIL PRESSURE SENDER, Oil Pressure
    OIL PRESSURE SENDER, Oil Pressure
  • 8
    806490T SENDER, Water Temperature
    SENDER, Water Temperature
  • 9
    899719T01 BRACKET
    BRACKET
  • 10
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 11
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 12
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 13
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 14
    89-96158T SOLENOID
    SOLENOID
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 17
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 20
    85-97861 INSULATOR
    INSULATOR
  • 21
    807763T BRACKET
    BRACKET
  • 22
    10-861520 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 23
    807264A01 CONVERSION KIT, Ignition Control Module
    350 Alpha
    CONVERSION KIT, Ignition Control Module
    350 Alpha
  • 23
    807645A01 CONVERSION KIT, Ignition Control Module
    350 Bravo/Inboard
    CONVERSION KIT, Ignition Control Module
    350 Bravo/Inboard
  • 24
    861517 BRACKET
    BRACKET
  • 25
    84-863869 HARNESS ASSEMBLY, 4 Pin
    HARNESS ASSEMBLY, 4 Pin
  • 26
    84-863870 HARNESS ASSEMBLY, 8 Pin
    HARNESS ASSEMBLY, 8 Pin
  • 27
    8M2000330 SCREW, (8-32 x 1.5 Inches)
    SCREW, (8-32 x 1.5 Inches)
  • 28
    806611T MODULE, Knock Control
    MODULE, Knock Control
  • 29
    806612T SENSOR, Knock
    SENSOR, Knock
  • 30
    22-8067051 FITTING, Dual
    FITTING, Dual
  • 31
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 32
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
