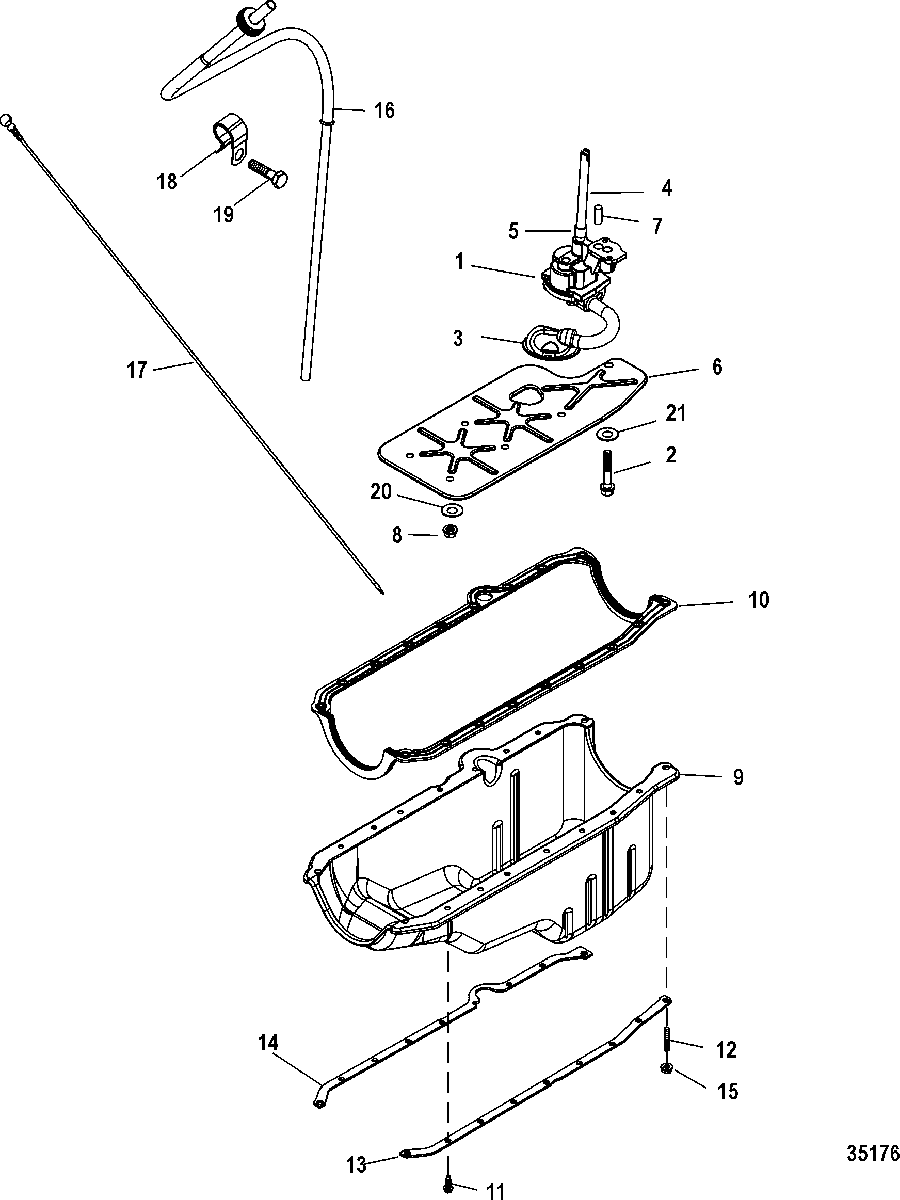

Oil Pan and Oil Pump для Mercruiser - 350 (4BBL) Crate Alpha 1G800000 & Up
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick-UpSCREEN, Oil Pump Pick-Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel, Alignment,Oil PumpPIN, Dowel, Alignment,Oil Pump
-
811-37500 NUT, (3/8-16)NUT, (3/8-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1110-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1216-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1314257 REINFORCEMENT
PortREINFORCEMENT
Port -
1414256 REINFORCEMENT
StarboardREINFORCEMENT
Starboard -
1511-11971 NUT, (.312-18)NUT, (.312-18)
-
16860274A2 TUBE ASSEMBLY, DipstickTUBE ASSEMBLY, Dipstick
-
17861942T7 DIPSTICKDIPSTICK
-
1854-805625 CLIP, Dipsitck TubeCLIP, Dipsitck Tube
-
1910-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2012-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2112-27339 WASHERWASHER
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
