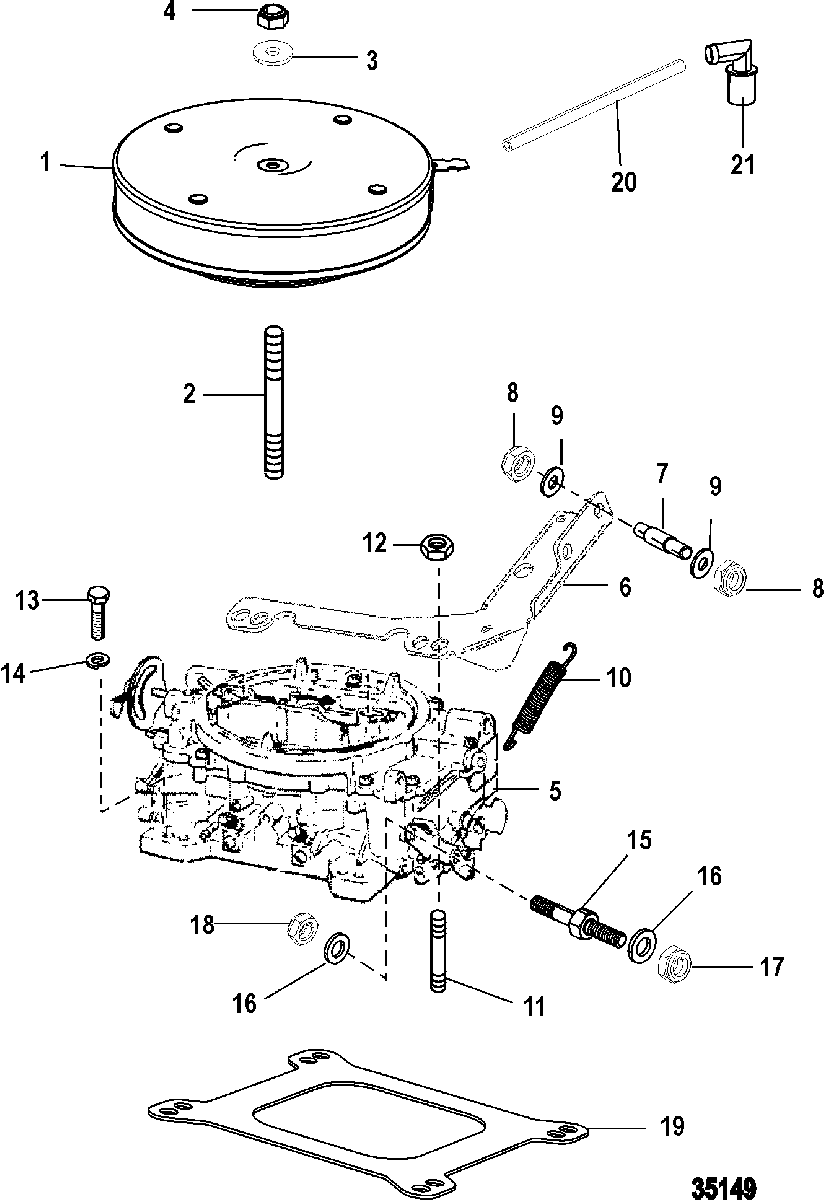

Carburetor and Throttle Linkage для Mercruiser - 350 (4BBL) Crate Alpha 1G800000 & Up

  • №
    Артикул
    Название
  • 1
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 2
    16-805296 STUD, (4.50 Inch)
    STUD, (4.50 Inch)
  • 3
    12-86400 WASHER
    WASHER
  • 4
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 5
    3310-8M0047211 CARBURETOR, 4 Barrel
    350 Alpha
    CARBURETOR, 4 Barrel
    350 Alpha
  • 5
    3310-8M0047212 CARBURETOR
    350 Gen+
    CARBURETOR
    350 Gen+
  • 6
    805359T BRACKET
    BRACKET
  • 7
    16-818192 STUD
    STUD
  • 8
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 9
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 10
    24-897454 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 11
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 12
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 13
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 14
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 15
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 17
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 18
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 19
    27-41610 GASKET
    GASKET
  • 20
    32-8M0086022 HOSE, (16.50 Inches Bulk)
    HOSE, (16.50 Inches Bulk)
  • 21
    97850T ELBOW, 90 Degree
    ELBOW, 90 Degree
