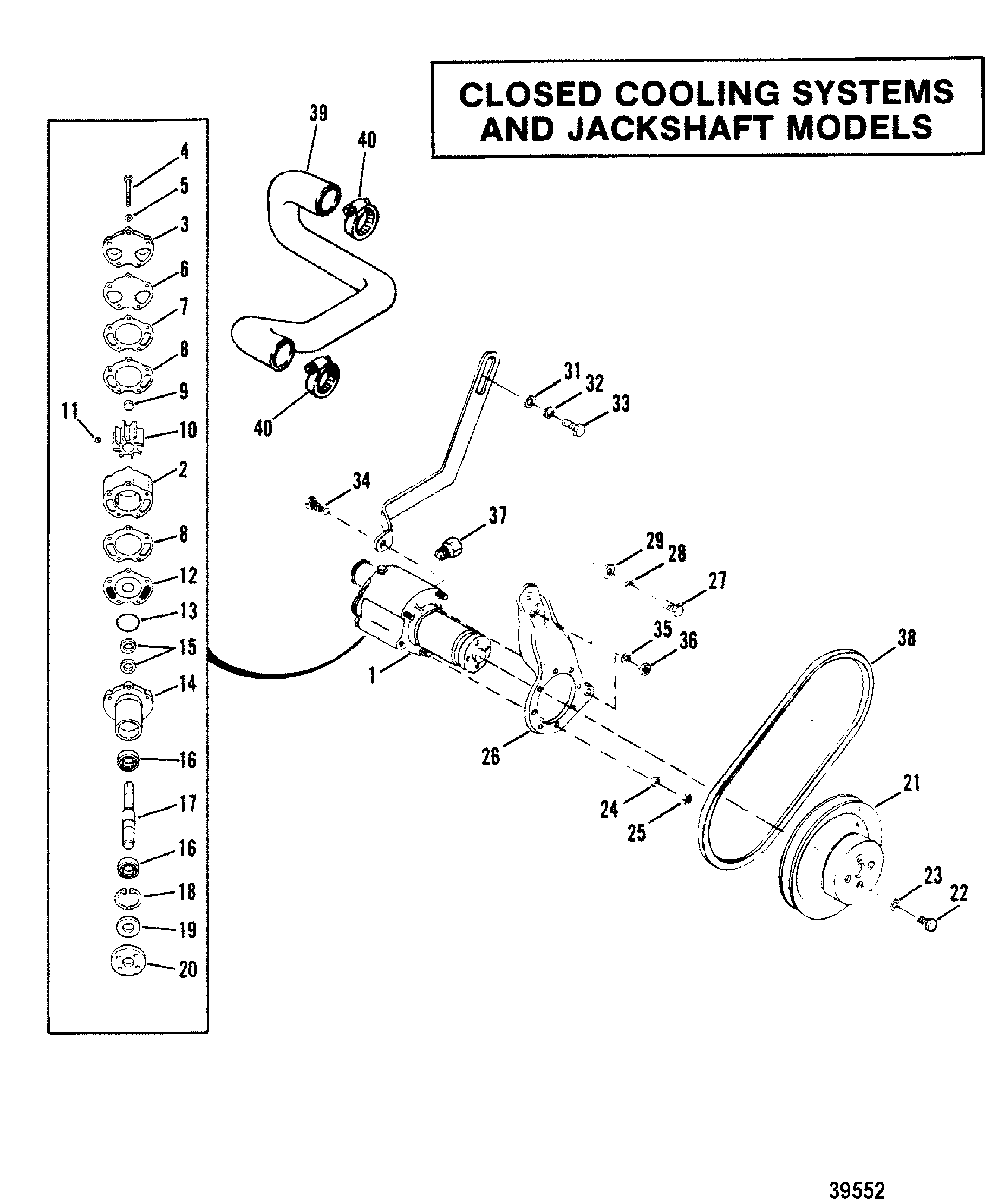

SEA WATER PUMP, CLOSED COOLING/JACKSHAFT MODELS для Mercruiser - 230 (4 BBL.) GM 305 V-8 1985-1986 6218462 THRU 0B525981
-
№АртикулНазвание
-
146-72774A32 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-72774A40 BODY ASSEMBLY, Sea Water - CompleteBODY ASSEMBLY, Sea Water - Complete
-
387631A4 COVER, WATER PUMPCOVER, WATER PUMP
-
410-73275 SCREW, (.312-18 x 2.88), WATER PUMPSCREW, (.312-18 x 2.88), WATER PUMP
-
410-52743 SCREW, (.312-18 x 3.750), WATER PUMPSCREW, (.312-18 x 3.750), WATER PUMP
-
512-20084 WASHER, (.328 x .562 x .062), COVER SCREWWASHER, (.328 x .562 x .062), COVER SCREW
-
627-8052151 GASKET, COVER TO OUTER WEAR PLATEGASKET, COVER TO OUTER WEAR PLATE
-
794916 WEAR PLATE, OUTERWEAR PLATE, OUTER
-
827-94914 GASKET, BODY TO WEAR PLATEGASKET, BODY TO WEAR PLATE
-
919-59504 PLUG, IMPELLERPLUG, IMPELLER
-
1047-59362T1 IMPELLERIMPELLER
-
1128-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
1294576 WEAR PLATE, INNERWEAR PLATE, INNER
-
1325-94288 QUAD RING, PUMP HOUSINGQUAD RING, PUMP HOUSING
-
1446-94913A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1526-90562 SEAL, (1.254 x .312), WATER PUMP SHAFTSEAL, (1.254 x .312), WATER PUMP SHAFT
-
1630-72961 BEARING, Ball, WATER PUMP SHAFTBEARING, Ball, WATER PUMP SHAFT
-
1759501A1 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1853-23720 RING, Retaining, BALL BEARINGRING, Retaining, BALL BEARING
-
1926-72785 SEAL, WATER PUMP SHAFTSEAL, WATER PUMP SHAFT
-
2047530 HUB, WATER PUMP PULLEYHUB, WATER PUMP PULLEY
-
2173798A1 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
2210-47277 SCREW, (.312-24 x .750), PULLEYSCREW, (.312-24 x .750), PULLEY
-
2313-39107 LOCKWASHER, (.312-24), PULLEY SCREWLOCKWASHER, (.312-24), PULLEY SCREW
-
2413-39107 LOCKWASHER, (.312-24), WATER PUMP SCREWLOCKWASHER, (.312-24), WATER PUMP SCREW
-
2511-21908 NUT, (.312-18) Cad Plated, WATER PUMP SCREWNUT, (.312-18) Cad Plated, WATER PUMP SCREW
-
2689535T BRACKET, WATER PUMPBRACKET, WATER PUMP
-
2710-34353 SCREW, (.375-16 x 1.00), WATER PUMP BRACKETSCREW, (.375-16 x 1.00), WATER PUMP BRACKET
-
2813-35048 LOCKWASHER, (.375), WATER PUMP BRACKET SCREWLOCKWASHER, (.375), WATER PUMP BRACKET SCREW
-
2912-34714 WASHER, WATER PUMP BRACKET SCREWWASHER, WATER PUMP BRACKET SCREW
-
3089609 BRACE, WATER PUMP ADJUSTINGBRACE, WATER PUMP ADJUSTING
-
3110-26487 SCREW, (.375-16 x 1.12), ADJUSTING BRACESCREW, (.375-16 x 1.12), ADJUSTING BRACE
-
3213-35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREWLOCKWASHER, (.375), ADJUSTING BRACE SCREW
-
3312-34714 WASHER, ADJUSTING BRACE SCREWWASHER, ADJUSTING BRACE SCREW
-
3425-35789 SCREW, ADJUSTING BRACE (1")SCREW, ADJUSTING BRACE (1")
-
3513-35048 LOCKWASHER, (.375), ADJUSTING BRACE SCREWLOCKWASHER, (.375), ADJUSTING BRACE SCREW
-
3611-46335 NUT, ADJUSTING BRACE SCREWNUT, ADJUSTING BRACE SCREW
-
3722-328022 PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)PLUG, Pipe (.125-27) (FOR WATER PUMP BODY)
-
3857-74271Q BELT, WATER PUMP (35")BELT, WATER PUMP (35")
-
3932-88795 HOSE, SEA WATER PUMP TO OIL COOLERHOSE, SEA WATER PUMP TO OIL COOLER
-
4054-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
