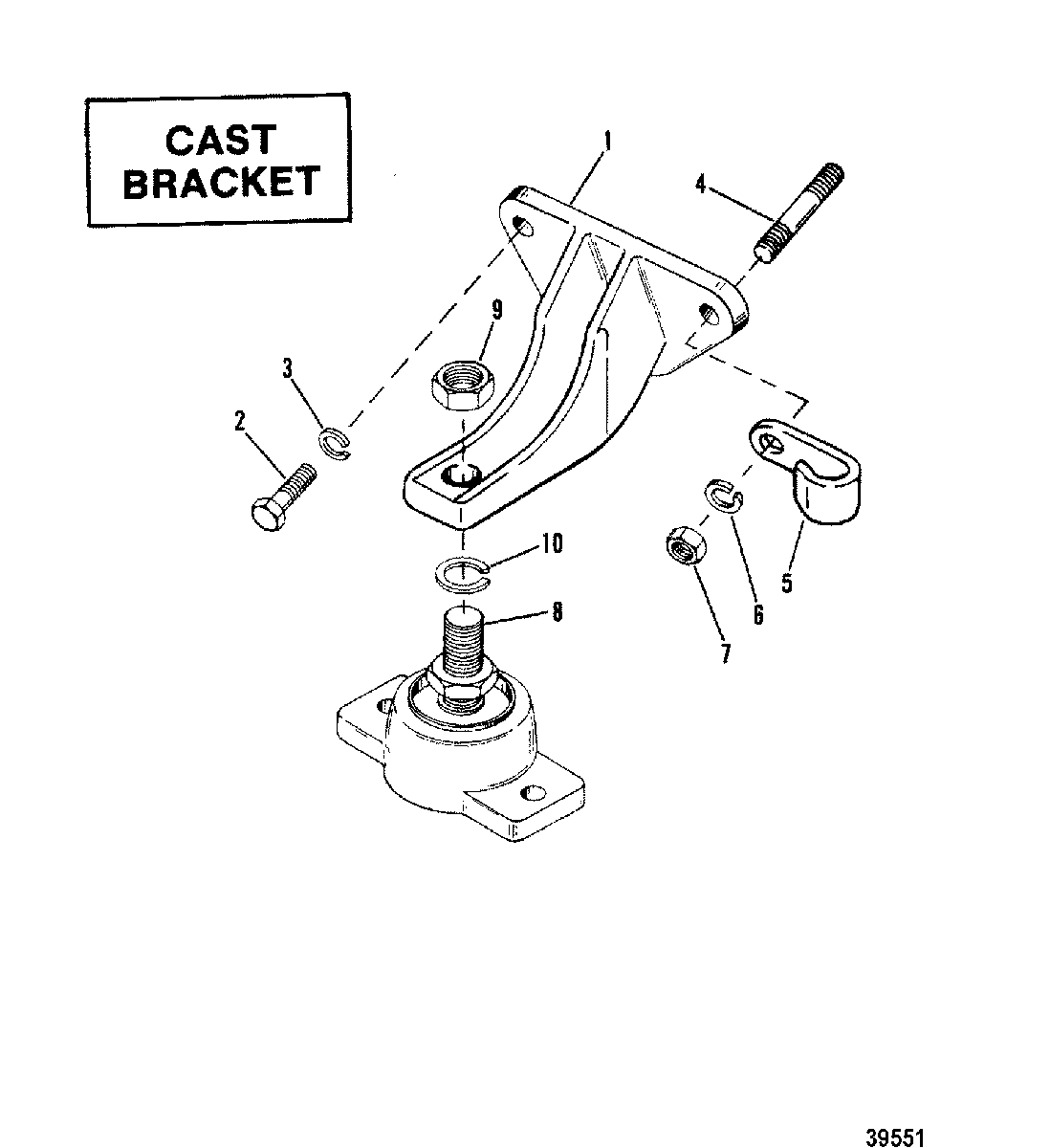

ENGINE MOUNTING(CAST BRACKET) для Mercruiser - 230 (4 BBL.) GM 305 V-8 1985-1986 6218462 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET, MOUNTING - ENGINE (FRONT)
    BRACKET, MOUNTING - ENGINE (FRONT)
  • 2
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    PORT
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    PORT
  • 2
    10-68101 SCREW, (.375-16 x 1.375), MOUNTING BRACKET TO ENGINE
    PORT
    SCREW, (.375-16 x 1.375), MOUNTING BRACKET TO ENGINE
    PORT
  • 2
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE (1-1/4")
    STARBOARD
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE (1-1/4")
    STARBOARD
  • 3
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    PORT/STARBOARD
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    PORT/STARBOARD
  • 3
    12-46132 WASHER, MOUNTING BRACKET SCEW
    PORT
    WASHER, MOUNTING BRACKET SCEW
    PORT
  • 4
    16-861316 STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET TO ENGINE
    STARBOARD
    STUD, (.375-16 x 2.750) Special, MOUNTING BRACKET TO ENGINE
    STARBOARD
  • 5
    54-90204 CLIP, WIRING HARNESS
    STARBOARD
    CLIP, WIRING HARNESS
    STARBOARD
  • 6
    13-35048 LOCKWASHER, (.375)
    STARBOARD
    LOCKWASHER, (.375)
    STARBOARD
  • 7
    11-32219 NUT, (.375-16), MOUNTING BRACKET STUD
    STARBOARD
    NUT, (.375-16), MOUNTING BRACKET STUD
    STARBOARD
  • 8
    66284A2 BASE ASSEMBLY, ENGINE MOUNT
    BASE ASSEMBLY, ENGINE MOUNT
  • 9
    11-20739 NUT, (.750-16), JAM - ENGINE MOUNT BASE
    NUT, (.750-16), JAM - ENGINE MOUNT BASE
  • 10
    13-68102 LOCKWASHER, (.750), MOUNTING BRACKET
    LOCKWASHER, (.750), MOUNTING BRACKET
