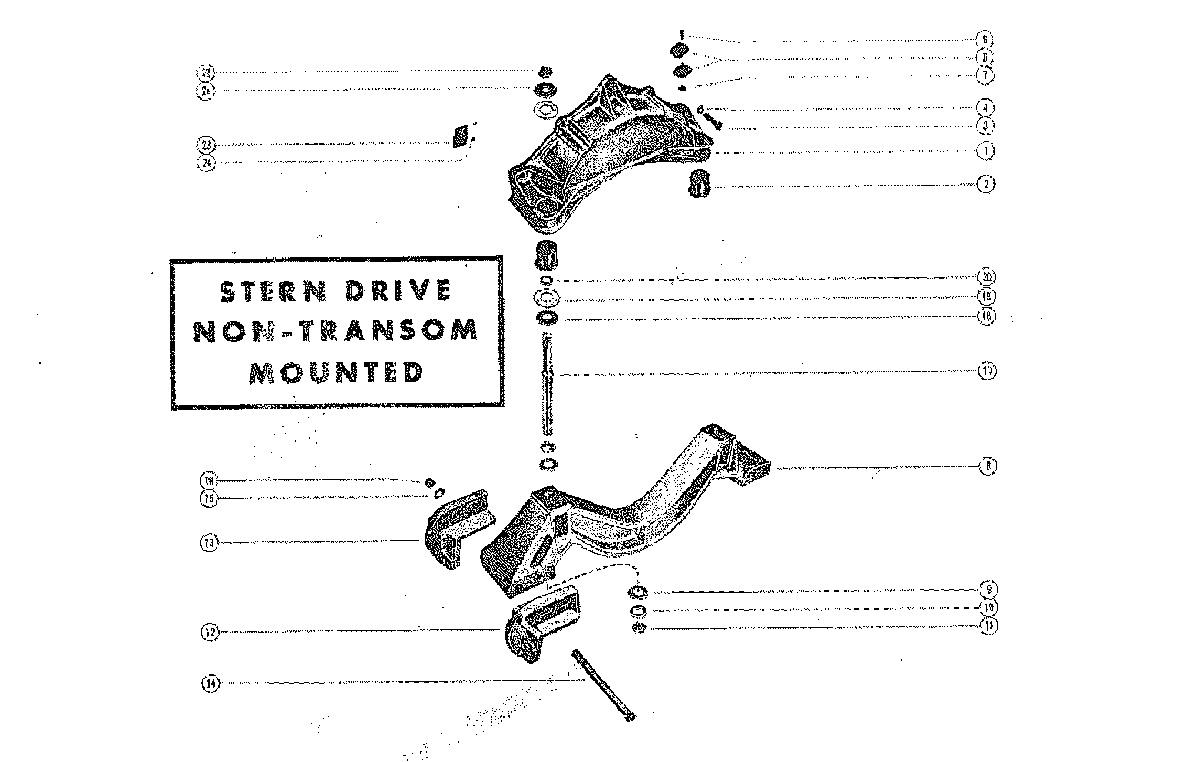

FLYWHEEL HOUSING AND MOUNTING BRACKETS (NON-TRANSOM MOUNTED) для Mercruiser - 225 (2 BBL.) GM 327 V-8 1967-1969 2278647 THRU 2694014
-
№АртикулНазвание
-
146354A1 HOUSING ASSEMBLY, FLYWHEELHOUSING ASSEMBLY, FLYWHEEL
-
235852 MOUNT, FLYWHEEL HOUSINGMOUNT, FLYWHEEL HOUSING
-
310-34354 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/2)SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/2)
-
310-20359 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1")SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1")
-
310-37612 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 1/4")
-
310-32132 SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")SCREW, FLYWHEEL HOUSING TO CYLINDER BLOCK (1 3/4")
-
413-35048 LOCKWASHER, FLYWHEEL HOUSING SCREWLOCKWASHER, FLYWHEEL HOUSING SCREW
-
539974 CONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSINGCONNECTOR, HARNESS LEADS TO FLYWHEEL HOUSING
-
610-45210 SCREW, CONNECTOR TO FLYWHEEL HOUSING (1 1/4")SCREW, CONNECTOR TO FLYWHEEL HOUSING (1 1/4")
-
711-24656 NUT, CONNECTOR SCREWNUT, CONNECTOR SCREW
-
832888 BRACKET, REAR SUPPORTBRACKET, REAR SUPPORT
-
912-34726 WASHER, REAR SUPPORT BRACKET ADJUSTING STUDWASHER, REAR SUPPORT BRACKET ADJUSTING STUD
-
1013-33164 LOCKWASHER, REAR SUPPORT BRACKET ADJUSTING STUDLOCKWASHER, REAR SUPPORT BRACKET ADJUSTING STUD
-
1111-20739 NUT, JAM-REAR SUPPORT BRACKET ADJUSTING STUDNUT, JAM-REAR SUPPORT BRACKET ADJUSTING STUD
-
1232889 PLATE, BEARING-REAR SUPPORT BRACKETPLATE, BEARING-REAR SUPPORT BRACKET
-
1332890 PLATE, BEARING-REAR SUPPORT BRACKETPLATE, BEARING-REAR SUPPORT BRACKET
-
1410-33158 SCREW, BEARING PLATE TO REAR SUPPORT BRACKET (5 1/2")SCREW, BEARING PLATE TO REAR SUPPORT BRACKET (5 1/2")
-
1512-20553 WASHER, BEARING PLATE SCREWWASHER, BEARING PLATE SCREW
-
1611-25269 NUT, BEARING PLATE TO REAR SUPPORT BRACKET SCREWNUT, BEARING PLATE TO REAR SUPPORT BRACKET SCREW
-
1716-33172 STUD, ADJUSTING- REAR SUPPORT BRACKETSTUD, ADJUSTING- REAR SUPPORT BRACKET
-
1812-33869 WASHER, REAR SUPPORT BRACKET ADJUSTING STUDWASHER, REAR SUPPORT BRACKET ADJUSTING STUD
-
1912-32638 WASHER, RUBBER-REAR SUPPORT BRACKET ADJUSTING STUDWASHER, RUBBER-REAR SUPPORT BRACKET ADJUSTING STUD
-
2012-27727 WASHER, REAR SUPPORT BRACKET ADJUSTING STUD (SMALL)WASHER, REAR SUPPORT BRACKET ADJUSTING STUD (SMALL)
-
2112-33171 WASHER, REAR SUPPORT BRACKET ADJUSTING STUDWASHER, REAR SUPPORT BRACKET ADJUSTING STUD
-
2211-22339 NUT, REAR SUPPORT BRACKET ADJUSTING STUD (TOP)NUT, REAR SUPPORT BRACKET ADJUSTING STUD (TOP)
-
2338-31042 SERIAL PLATE, CYLINDER BLOCKSERIAL PLATE, CYLINDER BLOCK
-
2410-20314 SCREW, DRIVE-SERIAL PLATE TO CYLINDER BLOCKSCREW, DRIVE-SERIAL PLATE TO CYLINDER BLOCK
