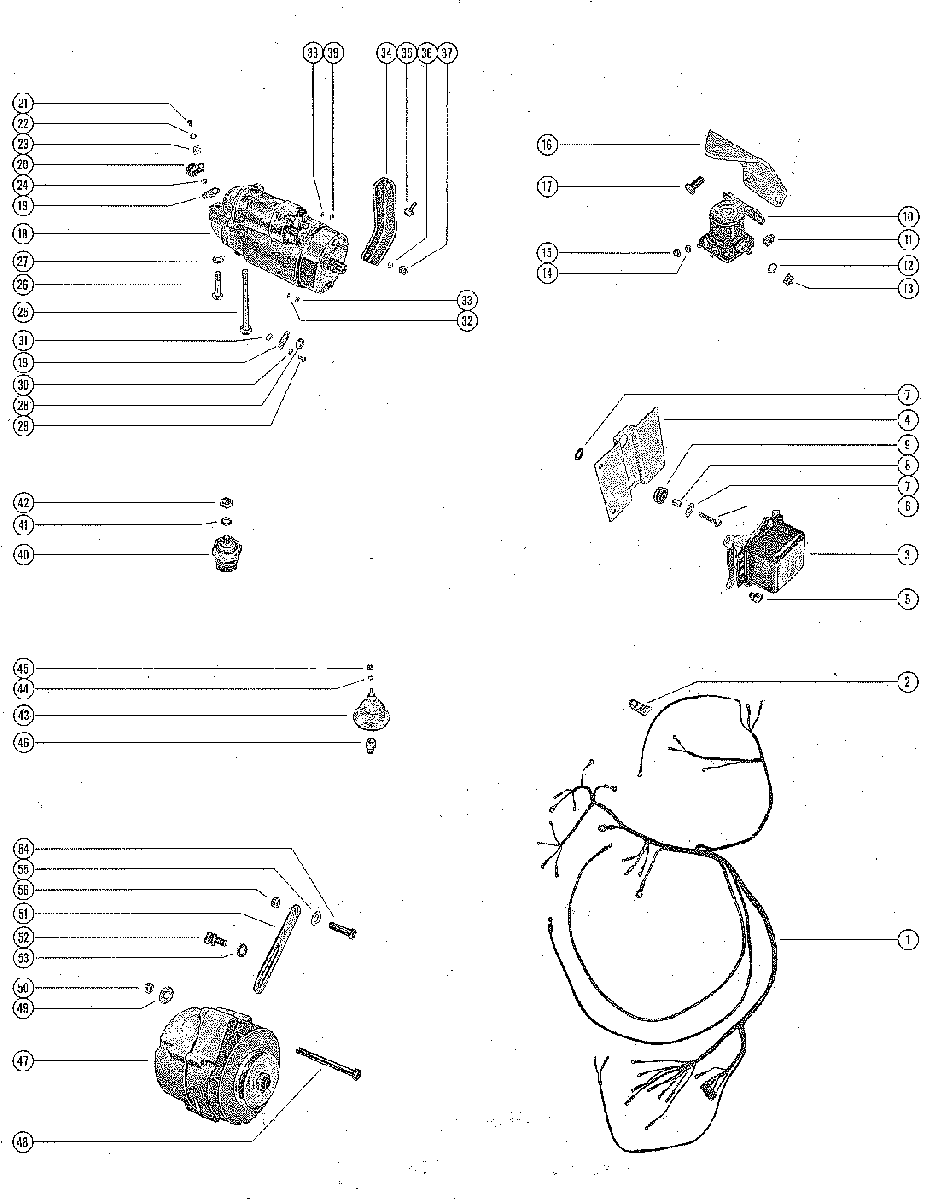

STARTER MOTOR, ALTERNATOR AND WIRING HARNESS для Mercruiser - 225 (2 BBL.) GM 327 V-8 1963-1966 1539620 THRU 2278646

  • №
    Артикул
    Название
  • 1
    33207 WIRING HARNESS, EXTERNAL
    WIRING HARNESS, EXTERNAL
  • 1
    37710A1 WIRING HARNESS, EXTERNAL
    WIRING HARNESS, EXTERNAL
  • 2
    54-33361 CLIP, WIRING HARNESS LEADS TO ROCKER VALVE COVER
    CLIP, WIRING HARNESS LEADS TO ROCKER VALVE COVER
  • 3
    32702 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 3
    38084A1 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 4
    33614A1 MOUNT ASSEMBLY, VOLTAGE REGULATOR
    MOUNT ASSEMBLY, VOLTAGE REGULATOR
  • 5
    10-29238 SCREW, VOLTAGE REGULATOR TO MOUNT (3/8")
    SCREW, VOLTAGE REGULATOR TO MOUNT (3/8")
  • 6
    10-35401 SCREW, VOLTAGE REGULATOR MOUNT TO TRANSOM (1")
    SCREW, VOLTAGE REGULATOR MOUNT TO TRANSOM (1")
  • 7
    12-22887 WASHER, VOLTAGE REGULATOR MOUNT SCREW
    WASHER, VOLTAGE REGULATOR MOUNT SCREW
  • 8
    23-32818 SPACER, VOLTAGE REGULATOR MOUNT SCREW
    SPACER, VOLTAGE REGULATOR MOUNT SCREW
  • 9
    25-28627 GROMMET, VOLTAGE REGULATOR MOUNT
    GROMMET, VOLTAGE REGULATOR MOUNT
  • 10
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 11
    10-29238 SCREW, STARTER SOLENIOD TO MOUNTING BRACKET (3/8")
    SCREW, STARTER SOLENIOD TO MOUNTING BRACKET (3/8")
  • 12
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 13
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 14
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 15
    11-68219 NUT, STARTER SOLENOID TERMINAL (#10)
    NUT, STARTER SOLENOID TERMINAL (#10)
  • 16
    33396 BRACKET, MOUNTING-STARTER SOLENOID AND FUEL FILTER
    BRACKET, MOUNTING-STARTER SOLENOID AND FUEL FILTER
  • 17
    10-98261 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3/4")
    SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (3/4")
  • 18
    50-8M0090697 STARTER MOTOR ASSEMBLY
    SEE B14 FOR BREAKDOWN
    STARTER MOTOR ASSEMBLY
    SEE B14 FOR BREAKDOWN
  • 19
    32786 TAB, SOLENOID SWITCH TERMINAL AND STARTER MOTOR BOLT
    TAB, SOLENOID SWITCH TERMINAL AND STARTER MOTOR BOLT
  • 20
    54-22690 CLIP, WIRING HARNESS TO STARTER MOTOR (11/16")
    CLIP, WIRING HARNESS TO STARTER MOTOR (11/16")
  • 21
    10-20566 SCREW, WIRING HARNESS CLIP TO TAB (3/8")
    SCREW, WIRING HARNESS CLIP TO TAB (3/8")
  • 22
    13-26995 LOCKWASHER, WIRING HARNESS CLIP SCREW
    LOCKWASHER, WIRING HARNESS CLIP SCREW
  • 23
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 24
    11-26419 NUT, WIRING HARNESS CLIP SCREW
    NUT, WIRING HARNESS CLIP SCREW
  • 25
    10-94435001 BOLT, STARTER MOTOR TO CYCLINDER BLOCK (4 21/32")
    BOLT, STARTER MOTOR TO CYCLINDER BLOCK (4 21/32")
  • 26
    10-8053433 BOLT, STARTER MOTOR TO CYCLINDER BLOCK (1 15/16")
    BOLT, STARTER MOTOR TO CYCLINDER BLOCK (1 15/16")
  • 27
    12-32648 WASHER, STARTER MOTOR BOLT
    WASHER, STARTER MOTOR BOLT
  • 28
    11-32219 NUT, SOLENOID SWITCH TERMINAL (3/8")
    NUT, SOLENOID SWITCH TERMINAL (3/8")
  • 29
    10-20566 SCREW, WIRING HARNESS LEAD TO TAB (3/8")
    SCREW, WIRING HARNESS LEAD TO TAB (3/8")
  • 30
    13-26995 LOCKWASHER, WIRING HARNESS LEAD SCREW
    LOCKWASHER, WIRING HARNESS LEAD SCREW
  • 31
    11-26419 NUT, WIRING HARNESS LEAD SCREW
    NUT, WIRING HARNESS LEAD SCREW
  • 32
    13-26996 LOCKWASHER, SOLENOID SWITCH TERMINAL (#10)
    LOCKWASHER, SOLENOID SWITCH TERMINAL (#10)
  • 33
    11-68219 NUT, SOLENOID SWITCH TERMINAL (#10)
    NUT, SOLENOID SWITCH TERMINAL (#10)
  • 34
    35363 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 35
    10-35192 SCREW, STARTER MOTOR BRACE TO CYLINDER BLOCK (3/4")
    SCREW, STARTER MOTOR BRACE TO CYLINDER BLOCK (3/4")
  • 35
    10-35765A1 SCREW, STARTER MOTOR BRACE TO CYLINDER BLOCK (5/8")
    SCREW, STARTER MOTOR BRACE TO CYLINDER BLOCK (5/8")
  • 36
    13-35367 LOCKWASHER, BRACE TO STARTER MOTOR TERMINAL
    LOCKWASHER, BRACE TO STARTER MOTOR TERMINAL
  • 37
    11-20890 NUT, BRACE TO STARTER MOTOR TERMINAL
    NUT, BRACE TO STARTER MOTOR TERMINAL
  • 38
    13-26995 LOCKWASHER, SOLENOID SWITCH TERMINAL (#8)
    LOCKWASHER, SOLENOID SWITCH TERMINAL (#8)
  • 39
    11-26419 NUT, SOLENOID SWITCH TERMINAL (#8)
    NUT, SOLENOID SWITCH TERMINAL (#8)
  • 40
    32828 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 40
    97258A1 WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 41
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 42
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 43
    32830 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 43
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 44
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 45
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 46
    22-32974 ADAPTOR, OIL PRESSURE SENDER
    ADAPTOR, OIL PRESSURE SENDER
  • 47
    47456A1 ALTERNATOR ASSEMBLY
    SEE C2 FOR BREAKDOWN
    ALTERNATOR ASSEMBLY
    SEE C2 FOR BREAKDOWN
  • 48
    10-33162 SCREW, ALTERNATOR TO FRONT MOUNTING BRACKET (4")
    SCREW, ALTERNATOR TO FRONT MOUNTING BRACKET (4")
  • 49
    12-20553 WASHER, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
    WASHER, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
  • 49
    12-20553 WASHER, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
    WASHER, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
  • 50
    11-25269 NUT, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
    NUT, ALTERNATOR TO FRONT MOUNTING BRACKET SCREW
  • 51
    32895 BRACE, ALTERNATOR MOUNTING
    BRACE, ALTERNATOR MOUNTING
  • 52
    10-29198 SCREW, ALTERNATOR TO ALTERNATOR BRACE (7/8")
    SCREW, ALTERNATOR TO ALTERNATOR BRACE (7/8")
  • 53
    12-26168 WASHER, ALTERNATOR TO ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR TO ALTERNATOR BRACE SCREW
  • 54
    10-24217 SCREW, ALTERNATOR BRACE TO FRONT MOUNTING BRACKET (1 1/2")
    SCREW, ALTERNATOR BRACE TO FRONT MOUNTING BRACKET (1 1/2")
  • 55
    12-20553 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 56
    11-25269 NUT, ALTERNATOR BRACE TO FRONT MOUNTING BRACKET SCREW
    NUT, ALTERNATOR BRACE TO FRONT MOUNTING BRACKET SCREW
