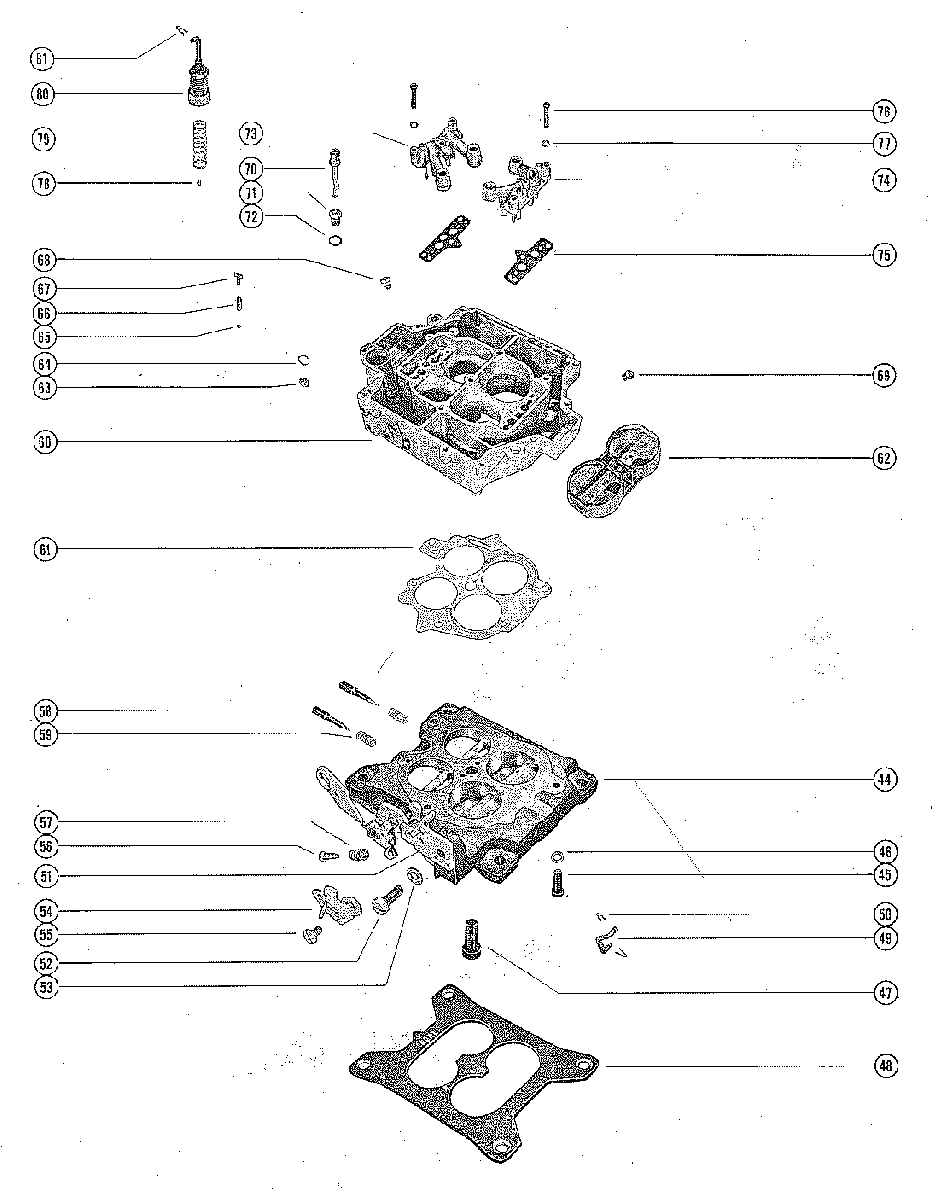

CARBURETOR ASSEMBLY, (FLOAT BOWL AND THROTTLE BODY) для Mercruiser - 225 (2 BBL.) GM 327 V-8 1963-1966 1539620 THRU 2278646

  • №
    Артикул
    Название
  • -
    1337-2604 CARBURETOR ASSEMBLY, COMPLETE
    SEE NOTE BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    SEE NOTE BELOW
  • 44
    1397-2138 THROTTLE, BODY ASSEMBLY
    THROTTLE, BODY ASSEMBLY
  • 45
    10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL (SMALL)
    SCREW, THROTTLE BODY TO FLOAT BOWL (SMALL)
  • 46
    13-21547 LOCKWASHER, THROTTLE BODY TO FLOAT BOWL SCREW
    LOCKWASHER, THROTTLE BODY TO FLOAT BOWL SCREW
  • 47
    10-33562 SCREW, THROTTLE BODY TO FLOAT BOWL (LARGE)
    SCREW, THROTTLE BODY TO FLOAT BOWL (LARGE)
  • 48
    27-33230 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 49
    1397-2123 LINK, SECONDARY LEVER - THROTTLE BODY
    LINK, SECONDARY LEVER - THROTTLE BODY
  • 50
    90-8M0143356 CLIP, SECONDARY LEVER LINK TO THROTTLE BODY
    CLIP, SECONDARY LEVER LINK TO THROTTLE BODY
  • 51
    1397-2122 BRASKET ASSEMBLY, CAM MOUNTING
    BRASKET ASSEMBLY, CAM MOUNTING
  • 52
    10-33553 SCREW, CAM MOUNTING BRACKET TO THROTTLE BODY
    SCREW, CAM MOUNTING BRACKET TO THROTTLE BODY
  • 53
    13-26993 LOCKWASHER, CAM MOUNTING BRACKET TO SCREW
    LOCKWASHER, CAM MOUNTING BRACKET TO SCREW
  • 54
    1397-2136 CAM, FAST IDLE - MOUNTING BRACKET
    CAM, FAST IDLE - MOUNTING BRACKET
  • 55
    10-33042 SCREW, FAST IDLE CAM TO CAM MOUNTING BRACKET
    SCREW, FAST IDLE CAM TO CAM MOUNTING BRACKET
  • 56
    1397-2061 IDLE STOP SCREW, THROTTLE BODY
    IDLE STOP SCREW, THROTTLE BODY
  • 57
    24-33559 SPRING, IDLE STOP SCREW
    SPRING, IDLE STOP SCREW
  • 58
    1397-2120 IDLE ADJUSTING NEEDLE, THROTTLE BODY
    IDLE ADJUSTING NEEDLE, THROTTLE BODY
  • 59
    24-33050 SPRING, IDLE ADJUSTING NEEDLE
    SPRING, IDLE ADJUSTING NEEDLE
  • 60
    1397-2607 FLOAT BOWL ASSEMBLY
    ALSO SHOWN ON C10 - REF. #1
    FLOAT BOWL ASSEMBLY
    ALSO SHOWN ON C10 - REF. #1
  • 61
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 62
    1397-2119 THROTTLE VALVE ASSEMBLY, AUXILIARY - FLOAT BOWL
    THROTTLE VALVE ASSEMBLY, AUXILIARY - FLOAT BOWL
  • 63
    90-8M0143356 STRAINER, INLET - FLOAT BOWL
    STRAINER, INLET - FLOAT BOWL
  • 64
    90-8M0143356 RETAINER, INLET STRAINER TO FLOAT BOWL
    RETAINER, INLET STRAINER TO FLOAT BOWL
  • 65
    90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL
    BALL, PUMP DISCHARGE - FLOAT BOWL
  • 66
    90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL
    SPRING, PUMP DISCHARGE - FLOAT BOWL
  • 67
    90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL
    GUIDE, PUMP DISCHARGE - FLOAT BOWL
  • 68
    1397-2453 JET, PRIMARY - FLOAT BOWL
    JET, PRIMARY - FLOAT BOWL
  • 69
    1397-2451 JET, SECONDARY - FLOAT BOWL
    JET, SECONDARY - FLOAT BOWL
  • 70
    1397-2129 POWER PISTON ASSEMBLY
    POWER PISTON ASSEMBLY
  • 71
    90-8M0143356 POWER VALVE ASSEMBLY, FLOAT BOWL
    POWER VALVE ASSEMBLY, FLOAT BOWL
  • 72
    90-8M0143356 GASKET, POWER VALVE
    GASKET, POWER VALVE
  • 73
    1397-2127 VENTURI CLUSTER ASSEMBLY, PRIMARY - FLOAT BOWL
    VENTURI CLUSTER ASSEMBLY, PRIMARY - FLOAT BOWL
  • 74
    1397-2128 VENTURI CLUSTER ASSEMBLY, SECONDARY - FLOAT BOWL
    VENTURI CLUSTER ASSEMBLY, SECONDARY - FLOAT BOWL
  • 75
    90-8M0143356 GASKET, VENTURI CLUSTER
    GASKET, VENTURI CLUSTER
  • 76
    10-33569 SCREW, VENTURI CLUSTER TO FLOAT BOWL
    SCREW, VENTURI CLUSTER TO FLOAT BOWL
  • 77
    13-26995 LOCKWASHER, VENTURI CLUSTER GO FLOAT BOWL SCREW
    LOCKWASHER, VENTURI CLUSTER GO FLOAT BOWL SCREW
  • 78
    90-8M0143356 BALL, FLOAT BOWL PUMP INLET CHECK
    BALL, FLOAT BOWL PUMP INLET CHECK
  • 79
    90-8M0143356 SPRING, FLOAT BOWL PUMP RETURN
    SPRING, FLOAT BOWL PUMP RETURN
  • 80
    90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
    PUMP ASSEMBLY, FLOAT BOWL
  • 81
    90-8M0143356 PIN, HAIR - FLOAT BOWL PUMP
    PIN, HAIR - FLOAT BOWL PUMP
  • -
    1397-2605 OVERHAUL KIT
    OVERHAUL KIT
  • -
    1397-2606 OFF ENGINE KIT
    OFF ENGINE KIT
  • -
    1397-2134 GASKET KIT
    GASKET KIT
  • -
    1397-2217 ALTITUDE KIT (5,000 FT.)
    ALTITUDE KIT (5,000 FT.)
  • -
    1397-2218 ALTITUDE KIT (10,000 FT.)
    ALTITUDE KIT (10,000 FT.)
