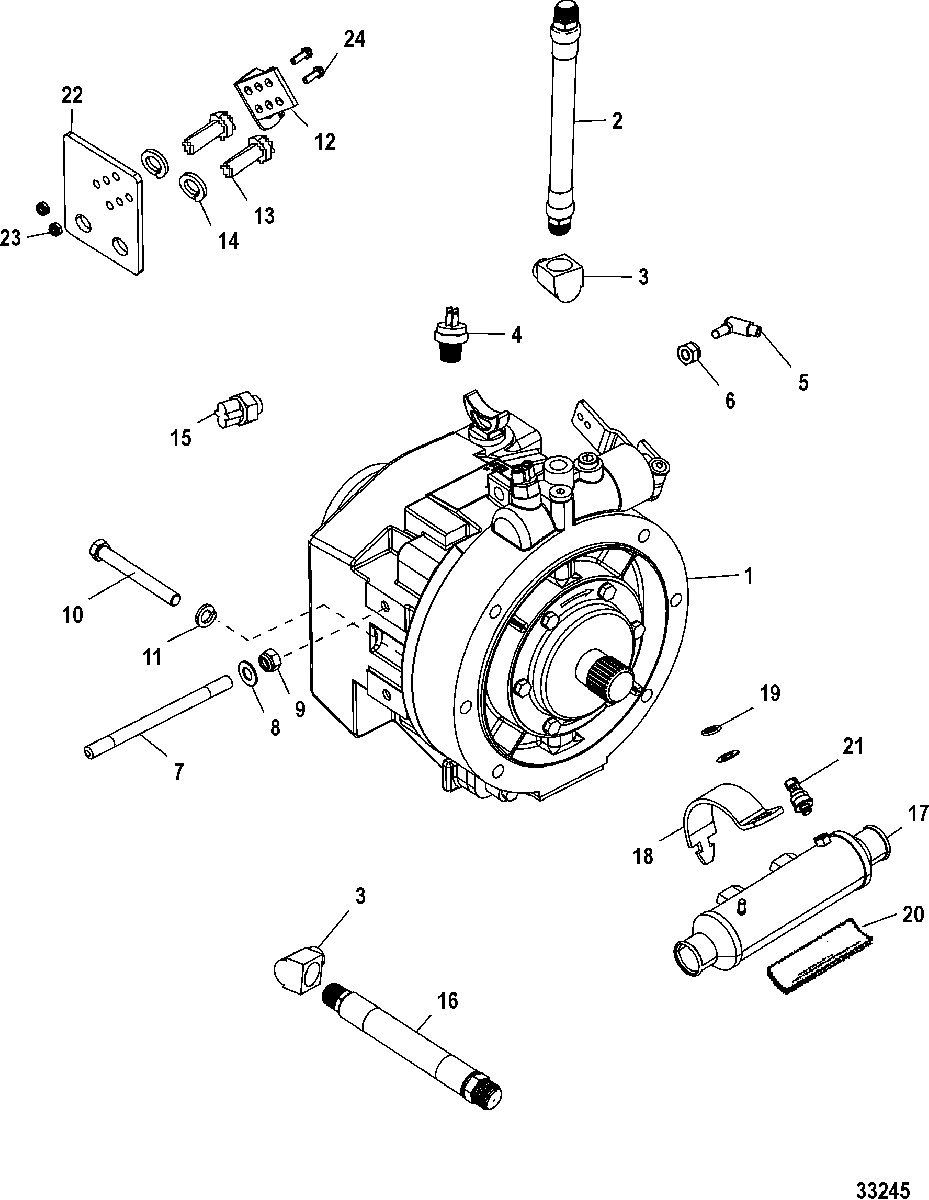

Transmission and Related Parts(ZF - 45C) для Mercruiser - SCORPION 377 0W698433 & Up

  • №
    Артикул
    Название
  • 1
    60-864336A03 TRANSMISSION (45C) (1.0:1)
    TRANSMISSION (45C) (1.0:1)
  • 2
    32-8054782 HOSE, (23.00 Inches)
    HOSE, (23.00 Inches)
  • 3
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 4
    87-88031 SWITCH ASSEMBLY, Temperature
    SWITCH ASSEMBLY, Temperature
  • 5
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 6
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 7
    16-864857 STUD, (.438 x 6.38)
    STUD, (.438 x 6.38)
  • 8
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 9
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 10
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 13
    10-40001124 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 14
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 15
    47613 SWITCH, Neutral Safety
    SWITCH, Neutral Safety
  • 16
    32-8126993 HOSE, (11.50)
    HOSE, (11.50)
  • 17
    879194T60 COOLER, Transmission Oil (45C)
    COOLER, Transmission Oil (45C)
  • 18
    807445T CLAMP, Cooler
    CLAMP, Cooler
  • 19
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 20
    772234 PAD
    PAD
  • 21
    8M6000623 SENSOR, Pressure
    SENSOR, Pressure
  • 22
    866077 BRACKET, Shift Cable
    BRACKET, Shift Cable
  • 23
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 24
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
