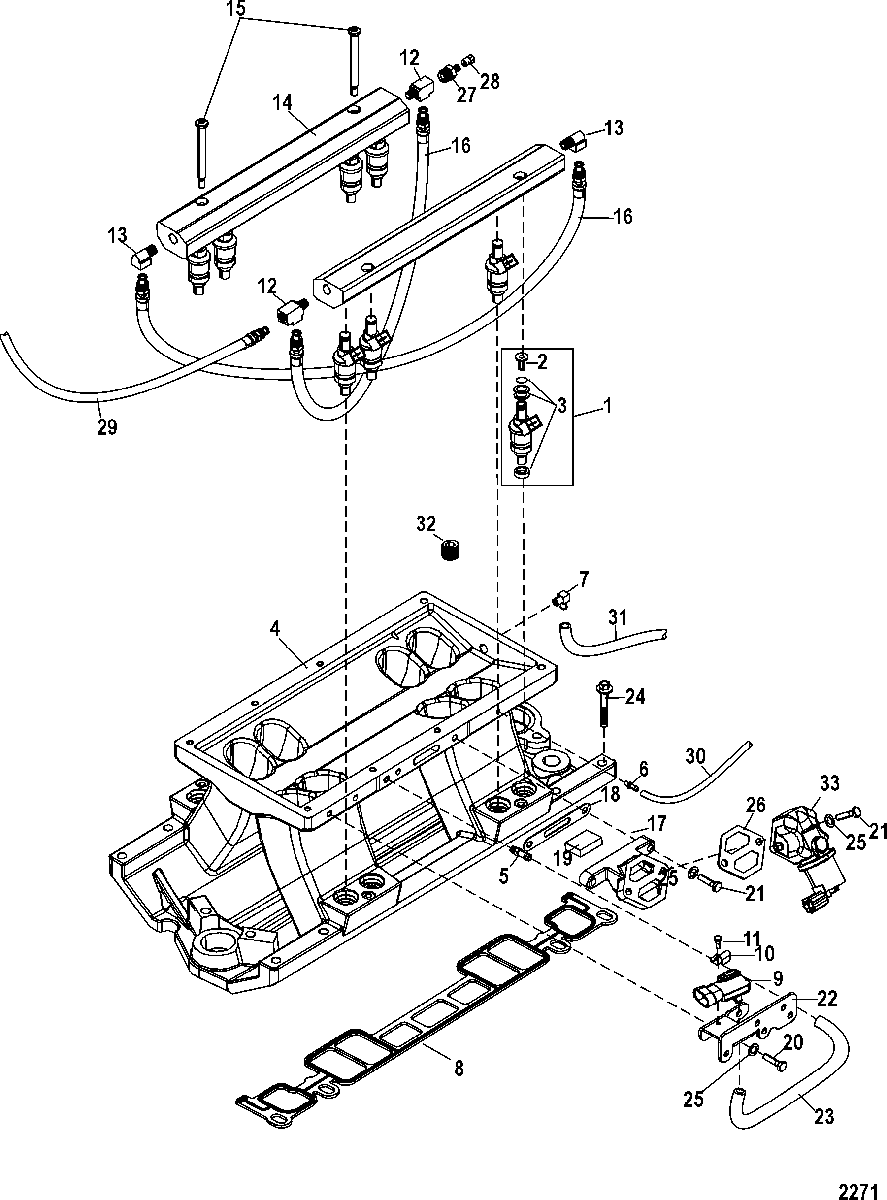

Intake Manifold And Fuel Rail для Mercruiser - SCORPION 377 0W698433 & Up

  • №
    Артикул
    Название
  • 1
    805225A1 INJECTOR ASSEMBLY, Fuel
    INJECTOR ASSEMBLY, Fuel
  • 2
    35-17422 FILTER, Injector
    FILTER, Injector
  • 3
    25-805511A1 SEALING KIT, Fuel Injector
    SEALING KIT, Fuel Injector
  • 4
    807352A12 MANIFOLD ASSEMBLY, Intake
    Air Actuated Drain
    MANIFOLD ASSEMBLY, Intake
    Air Actuated Drain
  • 4
    807352A12 MANIFOLD ASSEMBLY, Intake
    Manual Drain
    MANIFOLD ASSEMBLY, Intake
    Manual Drain
  • 5
    22-805691 FITTING, (.250) Barb
    FITTING, (.250) Barb
  • 6
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 7
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 8
    27-807473A1 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 9
    861425 SENSOR, Manifold Air Pressure
    SENSOR, Manifold Air Pressure
  • 10
    861198 CLIP
    CLIP
  • 11
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 12
    860265 FITTING, Tee
    FITTING, Tee
  • 13
    22-93385 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 14
    861085T FUEL RAIL
    FUEL RAIL
  • 15
    10-806943 SHOULDER SCREW, (.250-20 x 2.625)
    SHOULDER SCREW, (.250-20 x 2.625)
  • 16
    32-8M2015533 LINE ASSEMBLY, Fuel
    350/377
    LINE ASSEMBLY, Fuel
    350/377
  • 17
    865167T ADAPTOR, Intake Air Control
    ADAPTOR, Intake Air Control
  • 18
    27-865228 GASKET, Intake Air Control Adaptor
    GASKET, Intake Air Control Adaptor
  • 19
    35-865266 FILTER, Intake Air Control Adaptor
    FILTER, Intake Air Control Adaptor
  • 20
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 21
    10-28667 SCREW, (.250-20 x 1.00) Stainless Steel
    SCREW, (.250-20 x 1.00) Stainless Steel
  • 22
    865220T BRACKET
    BRACKET
  • 23
    32-8M0040618 HOSE, (54.00 Inches Bulk), Cut to Appropriate Length
    HOSE, (54.00 Inches Bulk), Cut to Appropriate Length
  • 24
    10-881892 SCREW, (.312-18 x 1.750)
    SCREW, (.312-18 x 1.750)
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 26
    27-866326 GASKET, Flame Arrestor, Intake Air Control
    GASKET, Flame Arrestor, Intake Air Control
  • 27
    22-860266 VALVE, Fuel Pressure Service
    VALVE, Fuel Pressure Service
  • 28
    19-8M0046566 CAP, Shrader Valve - Brass, Fuel Pressure Service Valve
    CAP, Shrader Valve - Brass, Fuel Pressure Service Valve
  • 29
    32-862617A02 LINE ASSEMBLY, Fuel
    LINE ASSEMBLY, Fuel
  • 30
    32-8M0063567 HOSE, (58.00 Inches Bulk)
    HOSE, (58.00 Inches Bulk)
  • 31
    32-8M0062321 HOSE, (33.00 Inches Bulk)
    HOSE, (33.00 Inches Bulk)
  • 32
    22-860075 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 33
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • -
    27-807670A96 GASKET/SEAL SET, Engine Overhaul
    GASKET/SEAL SET, Engine Overhaul
