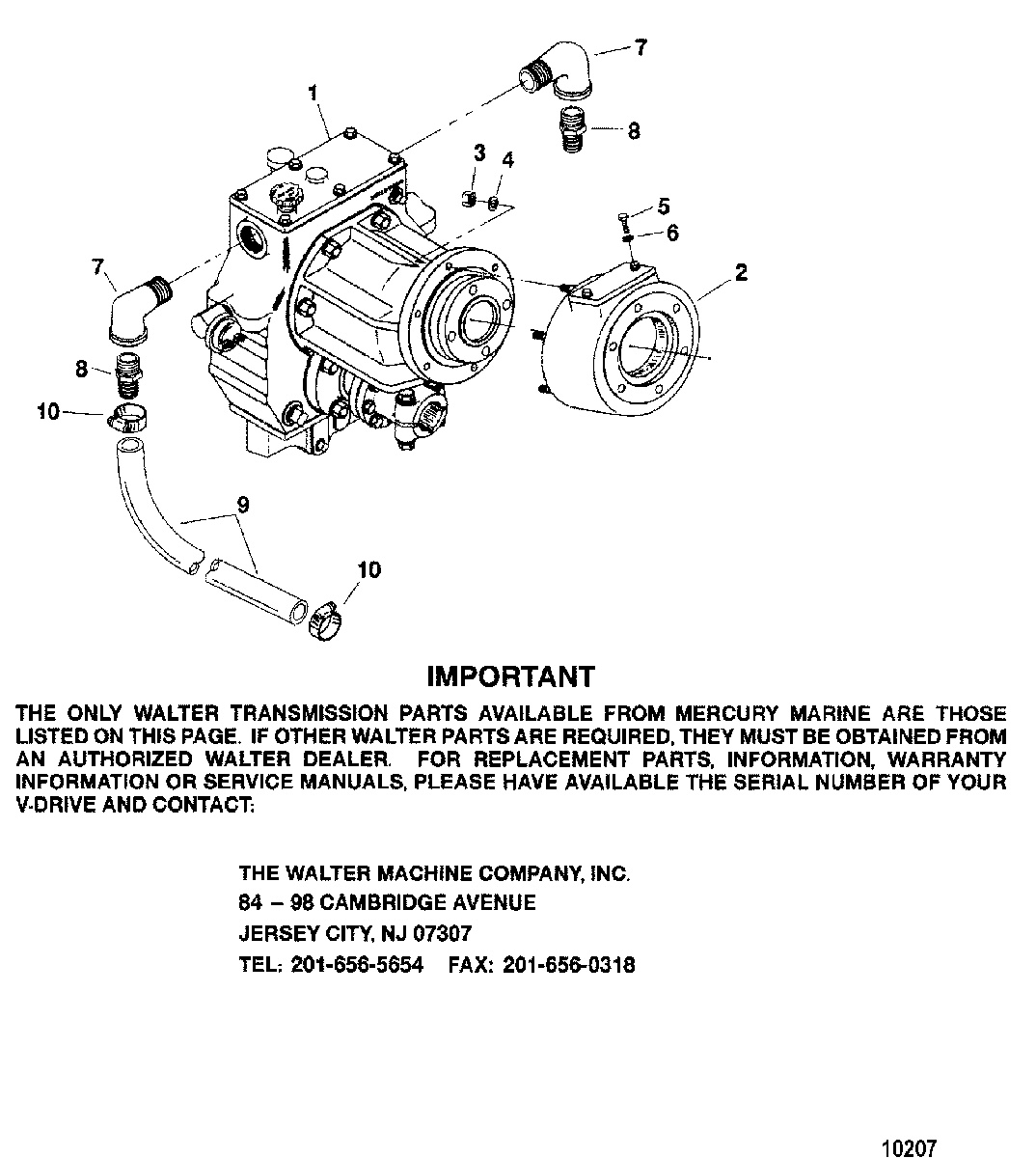

Transmission(Walter V-Drive) для Mercruiser - SCORPION 350 0W698433 & Up
-
№АртикулНазвание
-
1860362A2 TRANSMISSIONTRANSMISSION
-
2860308A3 HOUSING ASSEMBLY, AdaptorHOUSING ASSEMBLY, Adaptor
-
311-86226 NUT, (.375-16)NUT, (.375-16)
-
413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
510-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
722-860378 ELBOW (90 Degree)ELBOW (90 Degree)
-
822-860379 FITTING, BarbFITTING, Barb
-
932-8M0062666 HOSE, (96.00 Inches Bulk), To Sea Water PumpHOSE, (96.00 Inches Bulk), To Sea Water Pump
-
1054-815504222 CLAMP, Worm Gear (1.98 DIameter), HoseCLAMP, Worm Gear (1.98 DIameter), Hose
-
N.S.19-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
Все узлы модели:
- Alternator And Brackets
- Cylinder Block - Flywheel Housing
- Cylinder Block, Camshaft And Crankshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Exhaust Manifold, Elbow And Pipes - Air Actuated Drain
- Exhaust Manifold, Elbow And Pipes - Manual Drain
- Front Cover And Circulating Pump
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-807670A96), Engine Overhaul
- Intake Manifold And Fuel Rail
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Standard Cooling System, Air Actuated Drain
- Standard Cooling System, Manual Drain
- Starter Motor
- Thermostat And Housing, Air Actuated Drain
- Thermostat and Housing, Manual Drain - 0W690193 and Up
- Throttle Body And Air Plenum
- Transmission and Engine Mounting
- Transmission And Related Parts(Borg-Warner 71C/ 72C)
- Transmission and Related Parts(ZF - 45C)
- • Transmission(Walter V-Drive)
- Water Distribution Housing
- Water Drain, Air Manifold And Air Pump
