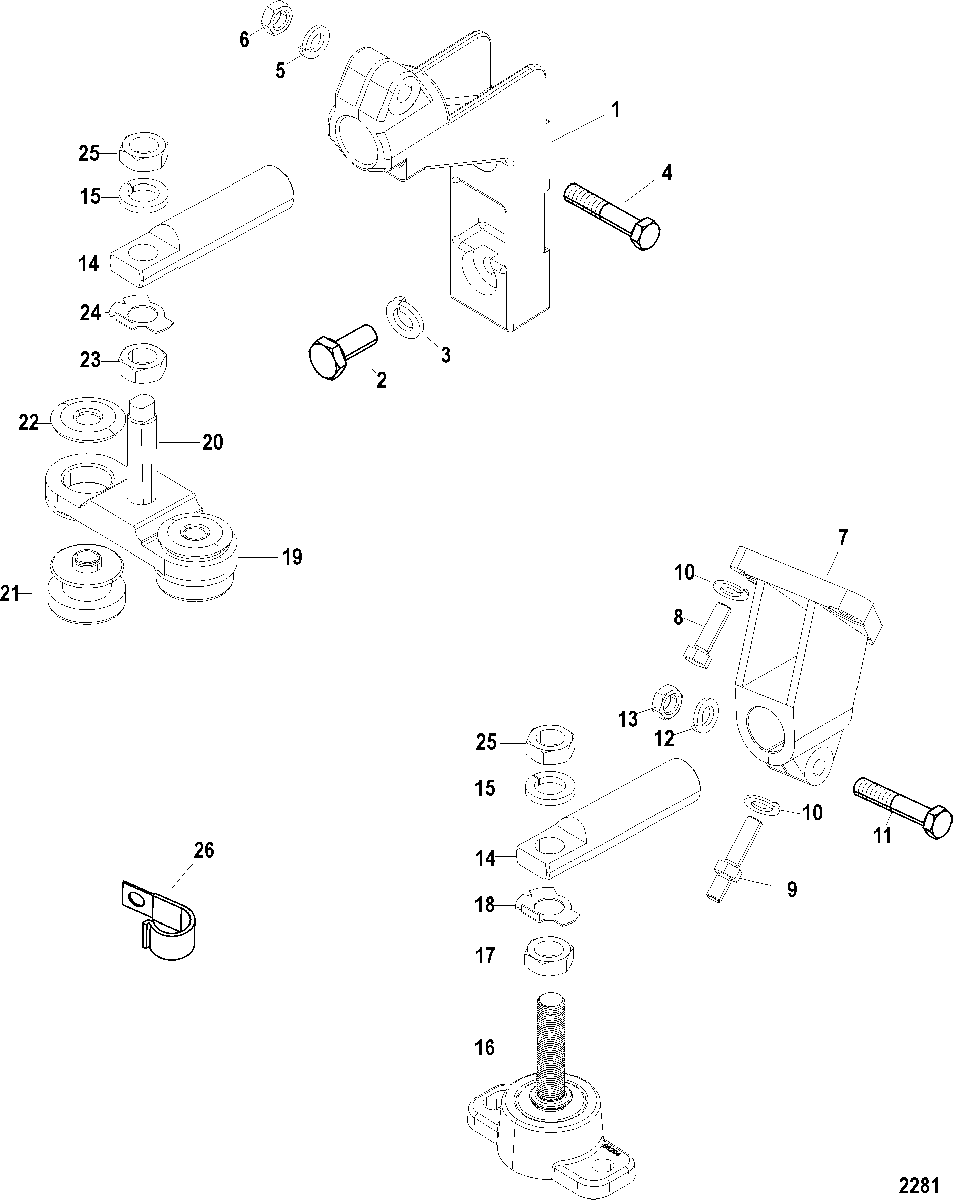

Transmission and Engine Mounting для Mercruiser - SCORPION 350 0W698433 & Up
-
№АртикулНазвание
-
1805597A1 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
210-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
210-91903 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
771128A2 BRACKETBRACKET
-
810-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
916-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
1013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1110-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1311-82670814 NUT, (.437-14)NUT, (.437-14)
-
148066985 TRUNNIONTRUNNION
-
1513-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1666284A2 BASE ASSEMBLY, Engine EndBASE ASSEMBLY, Engine End
-
1711-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1814-66658 TAB WASHERTAB WASHER
-
19816326A2 BASE ASSEMBLY, Transmission EndBASE ASSEMBLY, Transmission End
-
2016-8M0022149 STUD, (.750-16 x Special)STUD, (.750-16 x Special)
-
2147656 MOUNTMOUNT
-
2212-48611 WASHERWASHER
-
2311-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2414-66658 TAB WASHERTAB WASHER
-
2511-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2654-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
