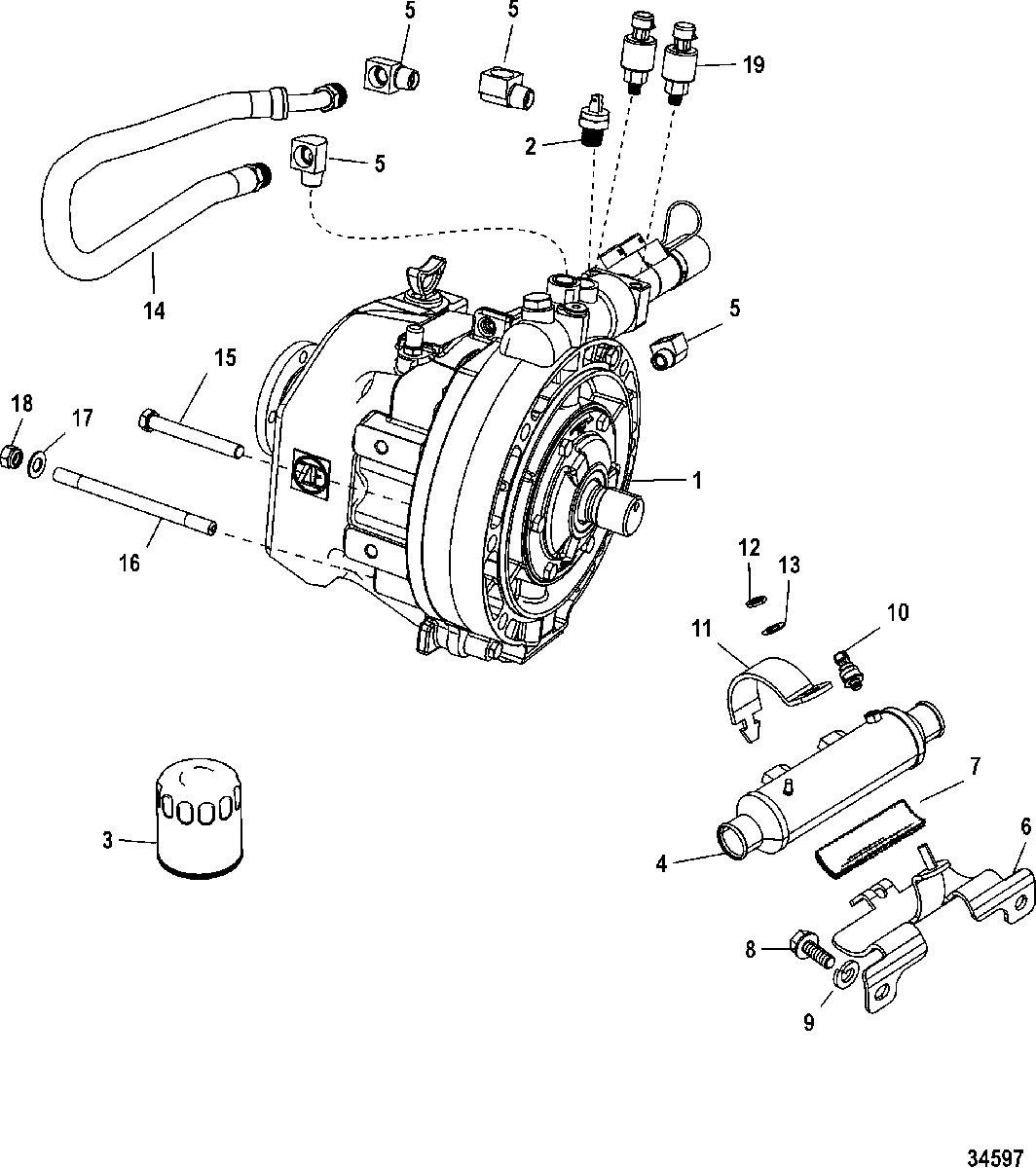

Transmission And Related Parts(ZF - 45C) (ZF - 63C) для Mercruiser - SCORPION 350 EC 0W698433 & Up

  • №
    Артикул
    Название
  • 1
    879194T11 TRANSMISSION (45C)
    Scorpion 350
    TRANSMISSION (45C)
    Scorpion 350
  • 1
    879194T12 TRANSMISSION (45C)
    (With Walters Adaptor) Scorpion 350
    TRANSMISSION (45C)
    (With Walters Adaptor) Scorpion 350
  • 1
    879172T36 TRANSMISSION (63C)
    Scorpion 377 HO
    TRANSMISSION (63C)
    Scorpion 377 HO
  • 1
    879172T37 TRANSMISSION (63C)
    (With Walters Adaptor) Scorpion 377 HO
    TRANSMISSION (63C)
    (With Walters Adaptor) Scorpion 377 HO
  • 2
    87-88031 SWITCH ASSEMBLY, Temperature
    SWITCH ASSEMBLY, Temperature
  • 3
    35-879312T25 FILTER
    FILTER
  • 4
    879194T60 COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 5
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 6
    865219T BRACKET, Cooler
    BRACKET, Cooler
  • 7
    772234 PAD
    PAD
  • 8
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 9
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 10
    8M6000623 SENSOR, Pressure
    SENSOR, Pressure
  • 11
    807445T CLAMP, Cooler
    CLAMP, Cooler
  • 12
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 13
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 14
    32-879288T75 HOSE, Transmission to Cooler
    HOSE, Transmission to Cooler
  • 15
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 16
    16-864857 STUD, (.438 x 6.38)
    STUD, (.438 x 6.38)
  • 17
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 18
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 19
    865664 PRESSURE TRANSDUCER, 500 PSI
    PRESSURE TRANSDUCER, 500 PSI
