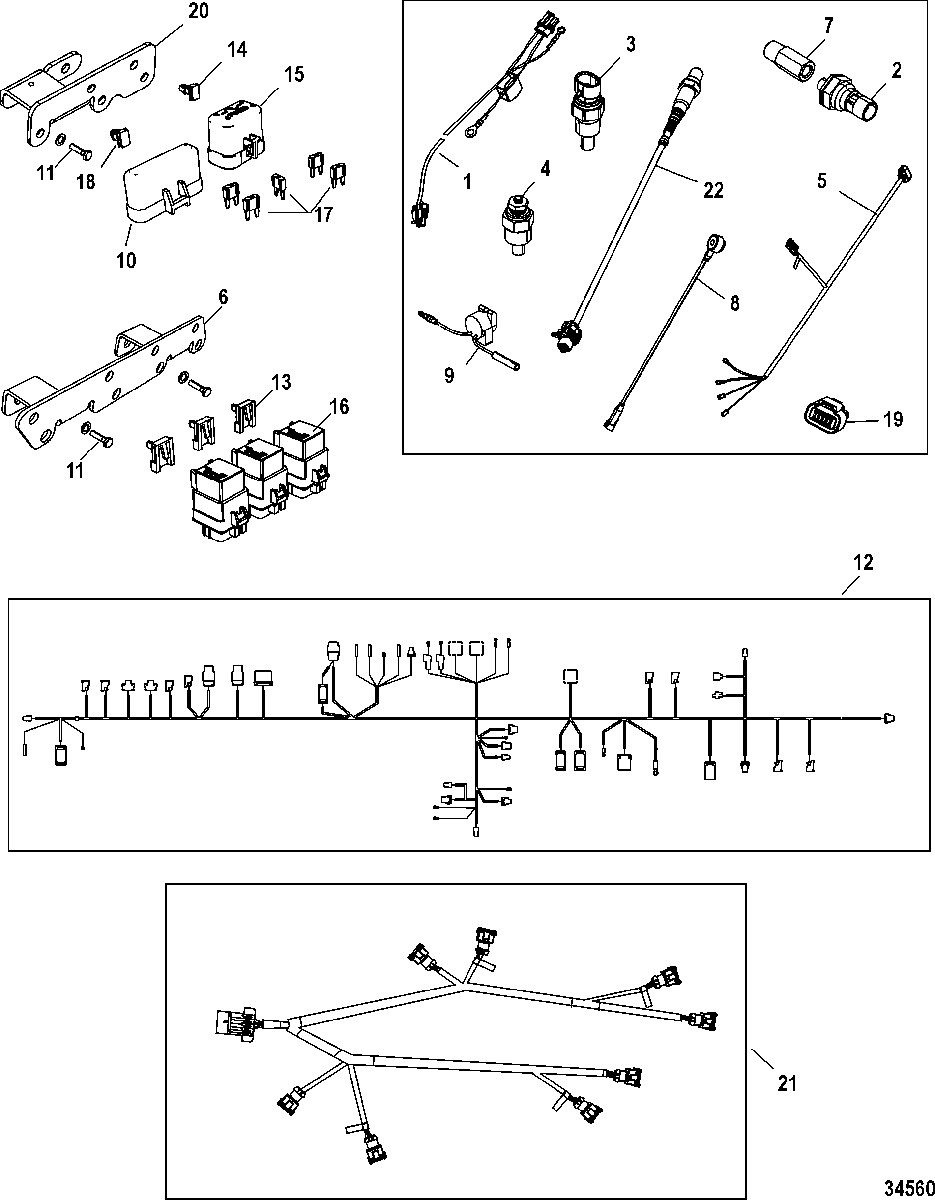

Electrical Components, Relay and Harness Assembly для Mercruiser - SCORPION 350 EC 0W698433 & Up

  • №
    Артикул
    Название
  • 1
    84-8M0113732 HARNESS ASSEMBLY, Clean Power
    HARNESS ASSEMBLY, Clean Power
  • 2
    881879T11 SENSOR, Pressure (0 - 100 PSI), Oil Pressure
    SENSOR, Pressure (0 - 100 PSI), Oil Pressure
  • 3
    805218T SENSOR, Coolant
    SENSOR, Coolant
  • 4
    806490T SENDER, Coolant Temperature
    SENDER, Coolant Temperature
  • 5
    84-865676T02 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 6
    879288T37 BRACKET, Relay Mounting
    BRACKET, Relay Mounting
  • 7
    22-805059 FITTING
    FITTING
  • 8
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 9
    816492A6 ALARM KIT
    ALARM KIT
  • 10
    831960 COVER
    COVER
  • 11
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 12
    84-8M0046437 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 13
    86-865205 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 14
    54-879962 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 15
    858754 COVER, Fuse
    COVER, Fuse
  • 16
    882751 RELAY
    RELAY
  • 17
    88-83296910 FUSE, Mini - Red - 10 Ampere
    FUSE, Mini - Red - 10 Ampere
  • 17
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 18
    54-892448 CLIP
    CLIP
  • 19
    859318T1 TERMINATOR, 10 Pin (CAN 1 and 2)
    TERMINATOR, 10 Pin (CAN 1 and 2)
  • 20
    865220T BRACKET
    BRACKET
  • 21
    84-8M2100101 HARNESS ASSEMBLY, Fuel Injector
    HARNESS ASSEMBLY, Fuel Injector
  • 22
    8M2003959 SENSOR, Oxygen
    SENSOR, Oxygen
