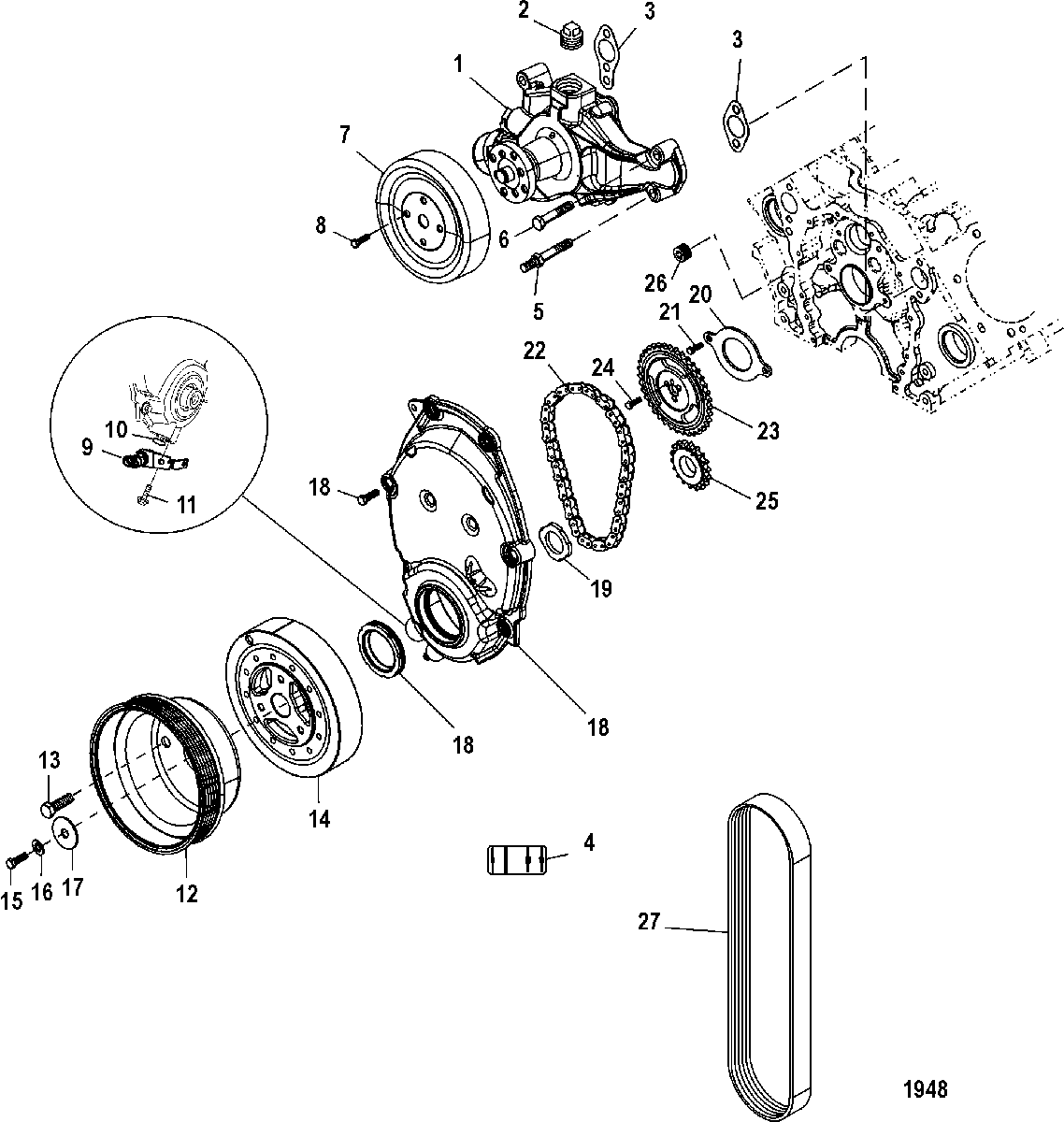

Front Cover And Circulating Pump для Mercruiser - BLACK SCORPION MX 6.2L MPI 0M391750 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    22-428611 PLUG, Pipe
    (Standard Cooling)
    PLUG, Pipe
    (Standard Cooling)
  • 3
    27-34897 GASKET, Water Pump
    GASKET, Water Pump
  • 4
    37-8M0079626 TIMING DECAL
    (Carbureted Engines Only)
    TIMING DECAL
    (Carbureted Engines Only)
  • 5
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 6
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 6
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 7
    807729T PULLEY
    (Standard Cooling)
    PULLEY
    (Standard Cooling)
  • 8
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 9
    864297T01 SENSOR ASSEMBLY, Crankshaft Position
    SENSOR ASSEMBLY, Crankshaft Position
  • 10
    25-885192 O-RING
    O-RING
  • 11
    10-884018001 SCREW
    SCREW
  • 12
    807730T PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 13
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 14
    863397 HARMONIC BALANCER
    HARMONIC BALANCER
  • 15
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 16
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    12-71458 WASHER
    WASHER
  • 18
    863396001 TIMING COVER ASSEMBLY
    (Screws, Grommets, Oil Seal, and Gasket Are Not Sold Seperately)
    TIMING COVER ASSEMBLY
    (Screws, Grommets, Oil Seal, and Gasket Are Not Sold Seperately)
  • 19
    863398 RELUCTOR WHEEL
    RELUCTOR WHEEL
  • 20
    845941 RETAINER, Camshaft
    RETAINER, Camshaft
  • 21
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 22
    17161T CHAIN, Timing
    CHAIN, Timing
  • 23
    43-8116591 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 24
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 25
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 26
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 27
    57-865615Q05 BELT, Serpentine
    BELT, Serpentine
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    (350 Mag)
    LONGBLOCK ASSEMBLY
    (350 Mag)
  • -
    8M0061211 LONGBLOCK ASSEMBLY
    (6.2L)
    LONGBLOCK ASSEMBLY
    (6.2L)
  • -
    27-807670A96 GASKET/SEAL SET, Engine Overhaul
    GASKET/SEAL SET, Engine Overhaul
