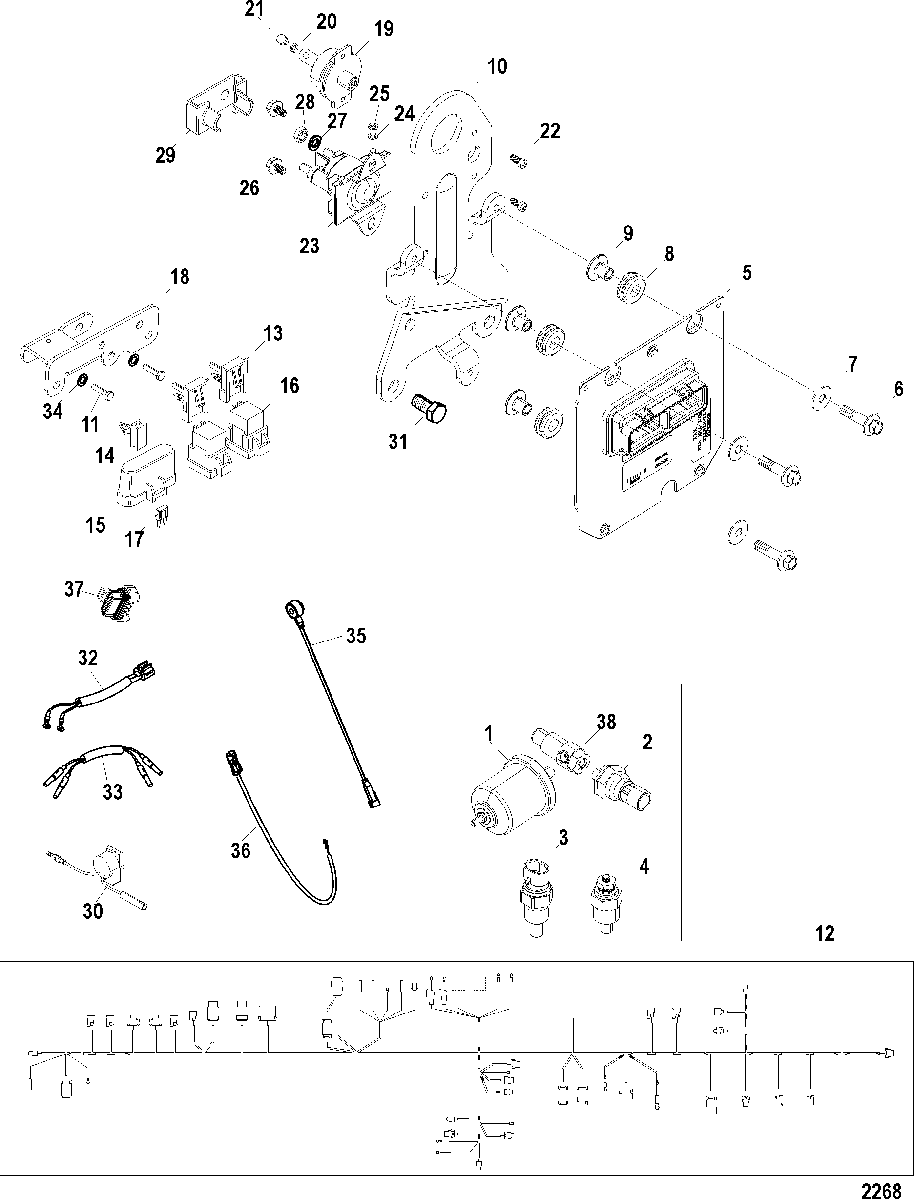

Electrical Components для Mercruiser - BLACK SCORPION MX 6.2L MPI 0M391750 THRU 0W689999

  • №
    Артикул
    Название
  • 1
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 2
    881879T11 SENSOR, (0 - 100 PSI), Oil Pressure
    SENSOR, (0 - 100 PSI), Oil Pressure
  • 3
    805218T SENSOR, Coolant
    SENSOR, Coolant
  • 4
    806490T SENDER, Coolant Temperature
    SENDER, Coolant Temperature
  • 5
    865155T06 ECM, Engine Control Module
    (350 MPI ) SN# 0W395629 & Below
    ECM, Engine Control Module
    (350 MPI ) SN# 0W395629 & Below
  • 5
    865155T06 MODULE ASSEMBLY, ECM
    (350 MPI ) SN# 0W395630 & Up
    MODULE ASSEMBLY, ECM
    (350 MPI ) SN# 0W395630 & Up
  • 5
    865156T07 MODULE ASSEMBLY, ECM
    (6.2L MPI) SN# 0W395624 & Below
    MODULE ASSEMBLY, ECM
    (6.2L MPI) SN# 0W395624 & Below
  • 5
    865156T07 MODULE ASSEMBLY, ECM
    (6.2L MPI) SN# 0W395625 & Up
    MODULE ASSEMBLY, ECM
    (6.2L MPI) SN# 0W395625 & Up
  • 6
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 7
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 8
    25-834985 GROMMET
    GROMMET
  • 9
    23-856954 BUSHING
    BUSHING
  • 10
    865218T BRACKET , ECM Mounting
    BRACKET , ECM Mounting
  • 11
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 12
    84-865245T02 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 13
    86-865205 CLIP, Relay Mounting
    CLIP, Relay Mounting
  • 14
    54-879962 CLIP, Fuse Block Mounting
    CLIP, Fuse Block Mounting
  • 15
    831960 COVER, Fuse
    COVER, Fuse
  • 16
    86-865202T RELAY
    RELAY
  • 17
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 18
    865220T BRACKET, Relay Mounting
    BRACKET, Relay Mounting
  • 19
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 20
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 21
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 22
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 23
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 24
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 25
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 26
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 27
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 28
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 29
    85-97861 INSULATOR, Starter Solenoid
    INSULATOR, Starter Solenoid
  • 30
    816492A6 ALARM KIT
    ALARM KIT
  • 31
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 32
    84-861940T1 HARNESS ASSEMBLY, Neutral Safety Switch
    HARNESS ASSEMBLY, Neutral Safety Switch
  • 33
    84-862021T1 HARNESS ASSEMBLY, Transmission Temperature
    HARNESS ASSEMBLY, Transmission Temperature
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 35
    8M6003194 SENSOR ASSEMBLY, Knock
    SENSOR ASSEMBLY, Knock
  • 36
    865145T02 HARNESS ASSEMBLY, Wiring
    (In Gear Indicator)
    HARNESS ASSEMBLY, Wiring
    (In Gear Indicator)
  • 37
    8M3000055 CAP, Weather Proof, 10 Pin Harness Plug
    CAP, Weather Proof, 10 Pin Harness Plug
  • 38
    22-864669 FITTING
    FITTING
