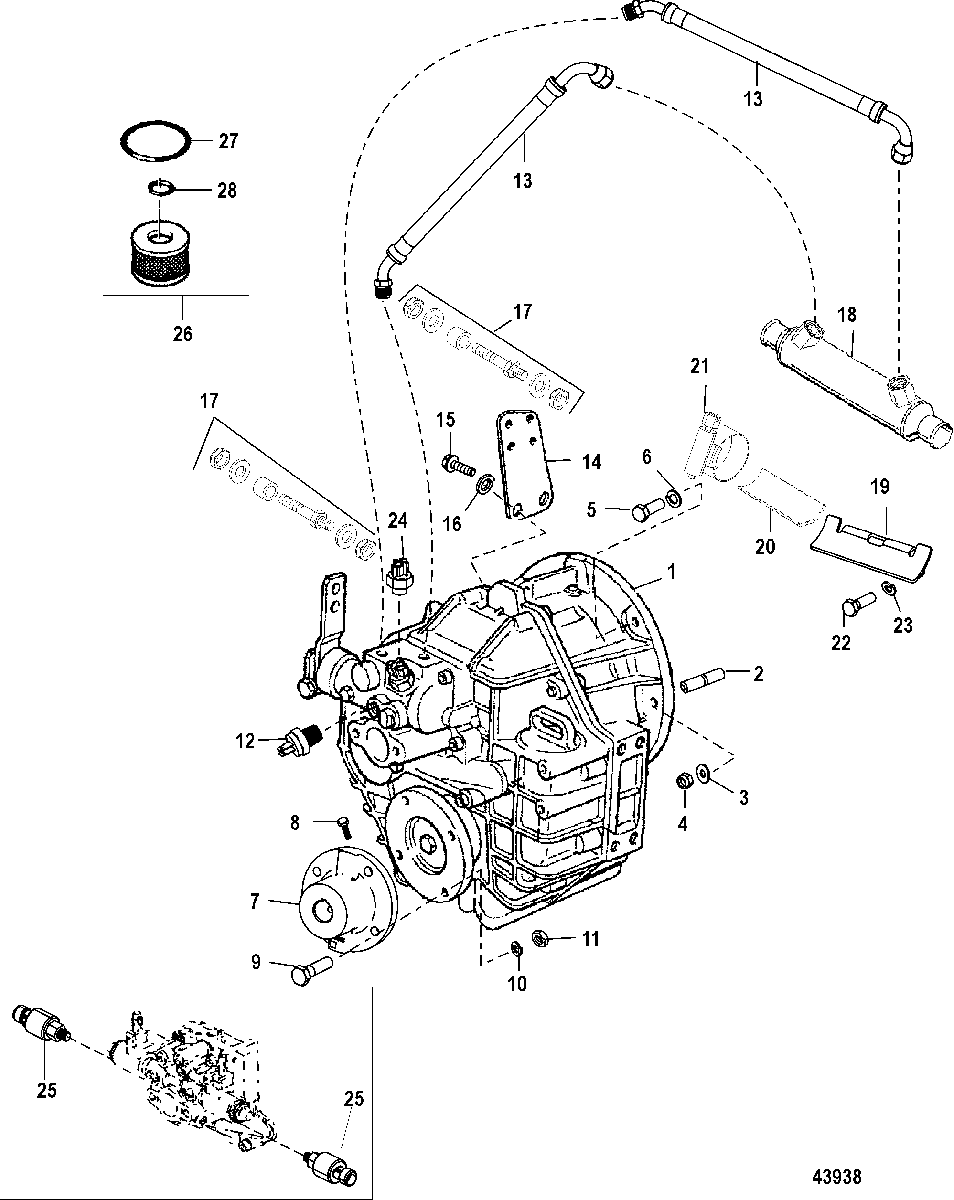

Transmission and Related Parts(Hurth 630/800) для Mercruiser - 5.7L MPI HORIZON MIE 1A092169 & Up
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Mechanical ShiftTRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Mechanical Shift -
1863744T3 TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Mechanical ShiftTRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Mechanical Shift -
1863744T4 TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Mechanical ShiftTRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Mechanical Shift -
1863744T5 TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Mechanical ShiftTRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Mechanical Shift -
1806730A1 TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Mechanical ShiftTRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Mechanical Shift -
18M0070754 TRANSMISSION, (1.2:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (1.2:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T02 TRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (1.5:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T03 TRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.0:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T04 TRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.50:1 Ratio) (630A) Down Angle
Electric Shift -
1865703T05 TRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Electric ShiftTRANSMISSION, (2.70:1 Ratio) (630A) Down Angle
Electric Shift -
1865705T01 TRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Electric ShiftTRANSMISSION, (2.85:1 Ratio) (800A) Down Angle
Electric Shift -
1863745T2 TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Mechanical ShiftTRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Mechanical Shift -
1863745T3 TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Mechanical ShiftTRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Mechanical Shift -
1863745T4 TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Mechanical ShiftTRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Mechanical Shift -
1865704T02 TRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (1.5:1 Ratio) (630V) V-Drive
Electric Shift -
1865704T03 TRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (2.0:1 Ratio) (630V) V-Drive
Electric Shift -
1865704T04 TRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Electric ShiftTRANSMISSION, (2.5:1 Ratio) (630V) V-Drive
Electric Shift -
216-805259 STUDSTUD
-
216-8M0034453 STUD, (.437-14/.437-20 x 2.190)
(Hurth 800A Only)STUD, (.437-14/.437-20 x 2.190)
(Hurth 800A Only) -
312-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
312-79552 WASHER, (.453 x .750 x .062) Stainless Steel
(Hurth 800A Only)WASHER, (.453 x .750 x .062) Stainless Steel
(Hurth 800A Only) -
411-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
411-859116 NUT, (.437-20)
(Hurth 800A Only)NUT, (.437-20)
(Hurth 800A Only) -
510-47462 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
779476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
779476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
779476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
779476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
779476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
810-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
810-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
910-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1111-22024 NUT, (.437-14)NUT, (.437-14)
-
1287-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1332-8054781 HOSE, (19.50)HOSE, (19.50)
-
14806238 BRACKETBRACKET
-
1510-40001124 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
1613-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
1716-97477A3 STUD KITSTUD KIT
-
18863832T01 COOLER, Transmission OilCOOLER, Transmission Oil
-
19805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
20772233 PADPAD
-
2154-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
2210-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2487-813300 SWITCH, Neutral SafetySWITCH, Neutral Safety
-
25865664 PRESSURE TRANSDUCER, 500 PSI
Digital Throttle and ShiftPRESSURE TRANSDUCER, 500 PSI
Digital Throttle and Shift -
2635-879194241 FLUID FILTER KITFLUID FILTER KIT
-
2725-813407 O-RINGO-RING
-
28NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
