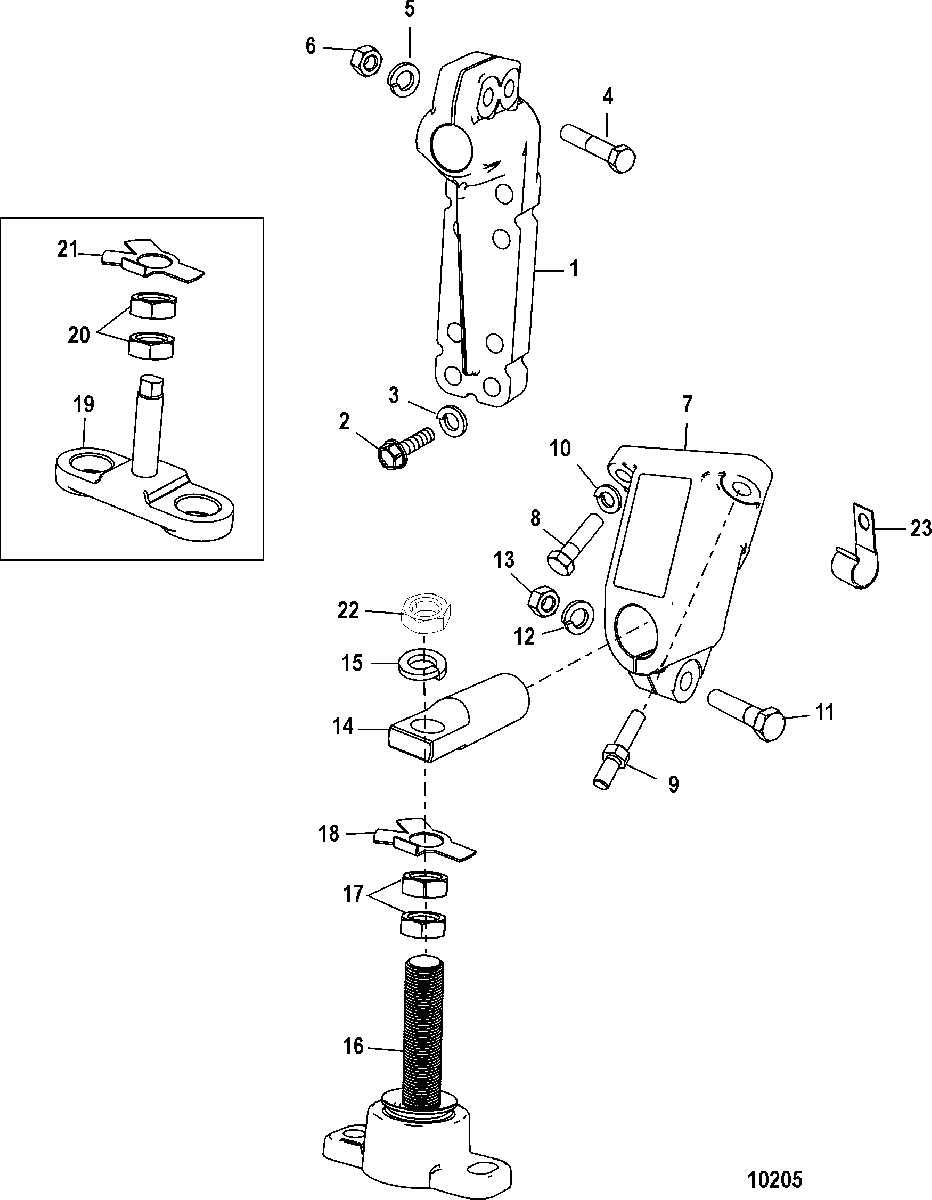

Transmission and Engine Mounting(HURTH 630) для Mercruiser - 5.7L MPI HORIZON MIE 1A092169 & Up
-
№АртикулНазвание
-
118903T02 BRACKET, RearBRACKET, Rear
-
210-806195 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
313-38829 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
410-57357 SCREW, (.437-13 x 2.250)SCREW, (.437-13 x 2.250)
-
513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
611-82670814 NUT, (.437-14)NUT, (.437-14)
-
771128A2 BRACKET, FrontBRACKET, Front
-
810-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
916-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
1013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1110-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
1213-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1311-82670814 NUT, (.437-14)NUT, (.437-14)
-
1466166A4 TRUNNIONTRUNNION
-
1513-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1666284A2 BASE ASSEMBLY, Engine EndBASE ASSEMBLY, Engine End
-
1711-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1814-66658 TAB WASHER, TabTAB WASHER, Tab
-
19816326A2 BASE ASSEMBLY, Transmission EndBASE ASSEMBLY, Transmission End
-
2011-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2114-66658 TAB WASHER, TabTAB WASHER, Tab
-
2211-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2354-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
