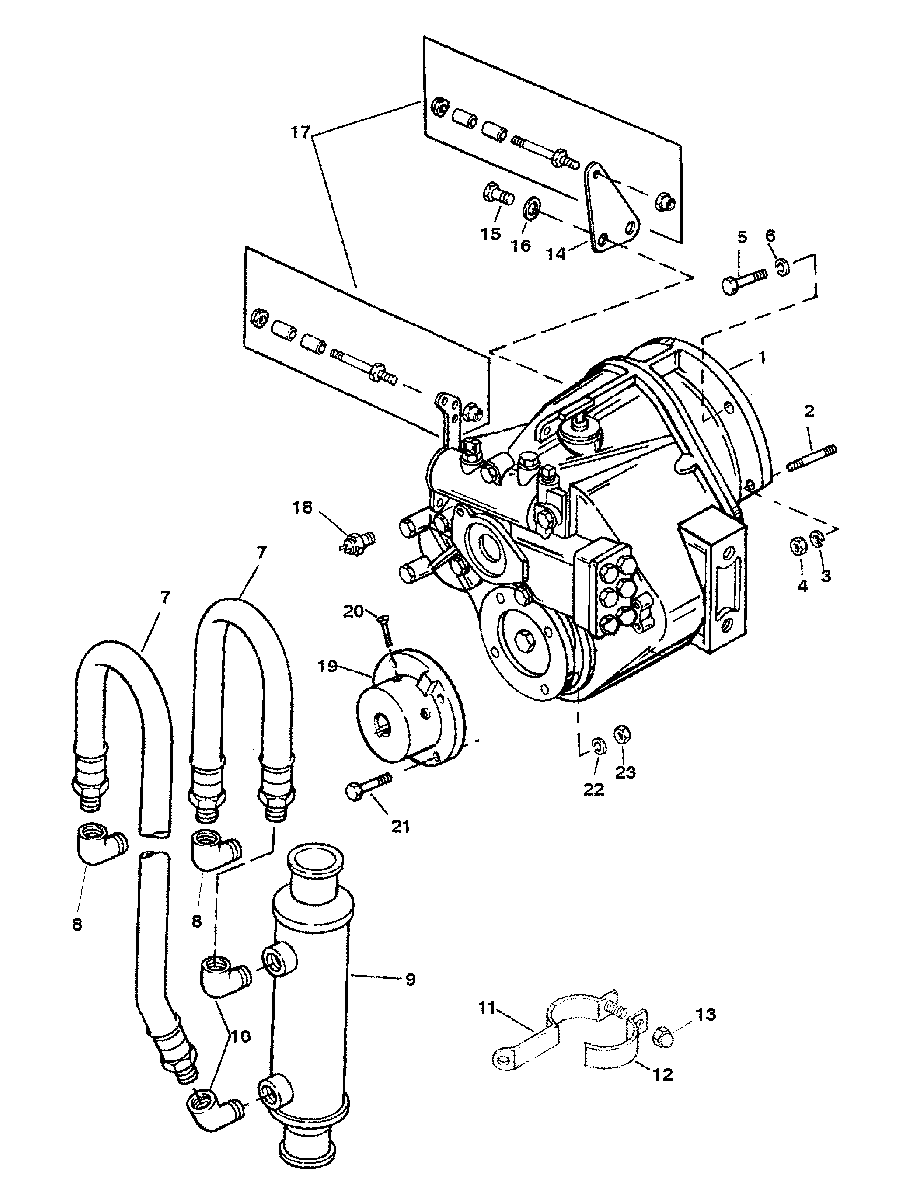

TRANSMISSION AND RELATED PARTS (B/W 5000) для Mercruiser - 5.7L MIE GM 350 V-8 1996 0F746100 THRU 0K040306

  • №
    Артикул
    Название
  • 1
    805495R57 TRANSMISSION
    (1.5:1 RATIO) IN-LINE
    TRANSMISSION
    (1.5:1 RATIO) IN-LINE
  • 1
    805495R58 TRANSMISSION
    (2.0:1 RATIO) IN-LINE
    TRANSMISSION
    (2.0:1 RATIO) IN-LINE
  • 1
    805495R59 TRANSMISSION
    (2.45:1 RATIO) IN-LINE
    TRANSMISSION
    (2.45:1 RATIO) IN-LINE
  • 2
    16-805259 STUD
    STUD
  • 3
    12-22248 WASHER
    WASHER
  • 4
    11-34933 NUT
    NUT
  • 5
    10-47462 SCREW
    SCREW
  • 6
    13-32993 LOCKWASHER
    LOCKWASHER
  • 7
    32-4751613 HOSE
    HOSE
  • 8
    22-63835 ELBOW (45_)
    ELBOW (45_)
  • 9
    63832A1 COOLER ASSEMBLY
    COOLER ASSEMBLY
  • 10
    22-47629 ELBOW (90_)
    ELBOW (90_)
  • 11
    807402T BRACKET
    BRACKET
  • 12
    807445T CLAMP
    CLAMP
  • 13
    11-8267088 NUT
    NUT
  • 14
    806238 BRACKET
    BRACKET
  • 15
    10-40001124 SCREW
    SCREW
  • 16
    13-400247 LOCKWASHER
    LOCKWASHER
  • 17
    16-97477A3 STUD KIT
    STUD KIT
  • 18
    87-88031 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 19
    79476A1 FLANGE ASSEMBLY (1 IN.)
    FLANGE ASSEMBLY (1 IN.)
  • 19
    79476A2 FLANGE ASSEMBLY (1-1/8 IN.)
    FLANGE ASSEMBLY (1-1/8 IN.)
  • 19
    79476A3 FLANGE ASSEMBLY (1-1/4 IN.)
    FLANGE ASSEMBLY (1-1/4 IN.)
  • 19
    79476A4 FLANGE ASSEMBLY (1-3/8 IN.)
    FLANGE ASSEMBLY (1-3/8 IN.)
  • 19
    79476A5 FLANGE ASSEMBLY (1-1/2 IN.)
    FLANGE ASSEMBLY (1-1/2 IN.)
  • 19
    79476A6 FLANGE ASSEMBLY (1-3/4 IN.)
    FLANGE ASSEMBLY (1-3/4 IN.)
  • 19
    79476A7 FLANGE ASSEMBLY (2 IN.)
    FLANGE ASSEMBLY (2 IN.)
  • 20
    10-60171 SCREW-FLANGE (1-1/4 IN.)
    SCREW-FLANGE (1-1/4 IN.)
  • 20
    10-60169 SCREW-FLANGE (3/4 IN.)
    SCREW-FLANGE (3/4 IN.)
  • 21
    10-805159 SCREW-FLANGE (1-1/2 IN.)
    SCREW-FLANGE (1-1/2 IN.)
  • 22
    13-32993 LOCKWASHER
    LOCKWASHER
  • 23
    11-22024 NUT
    NUT
