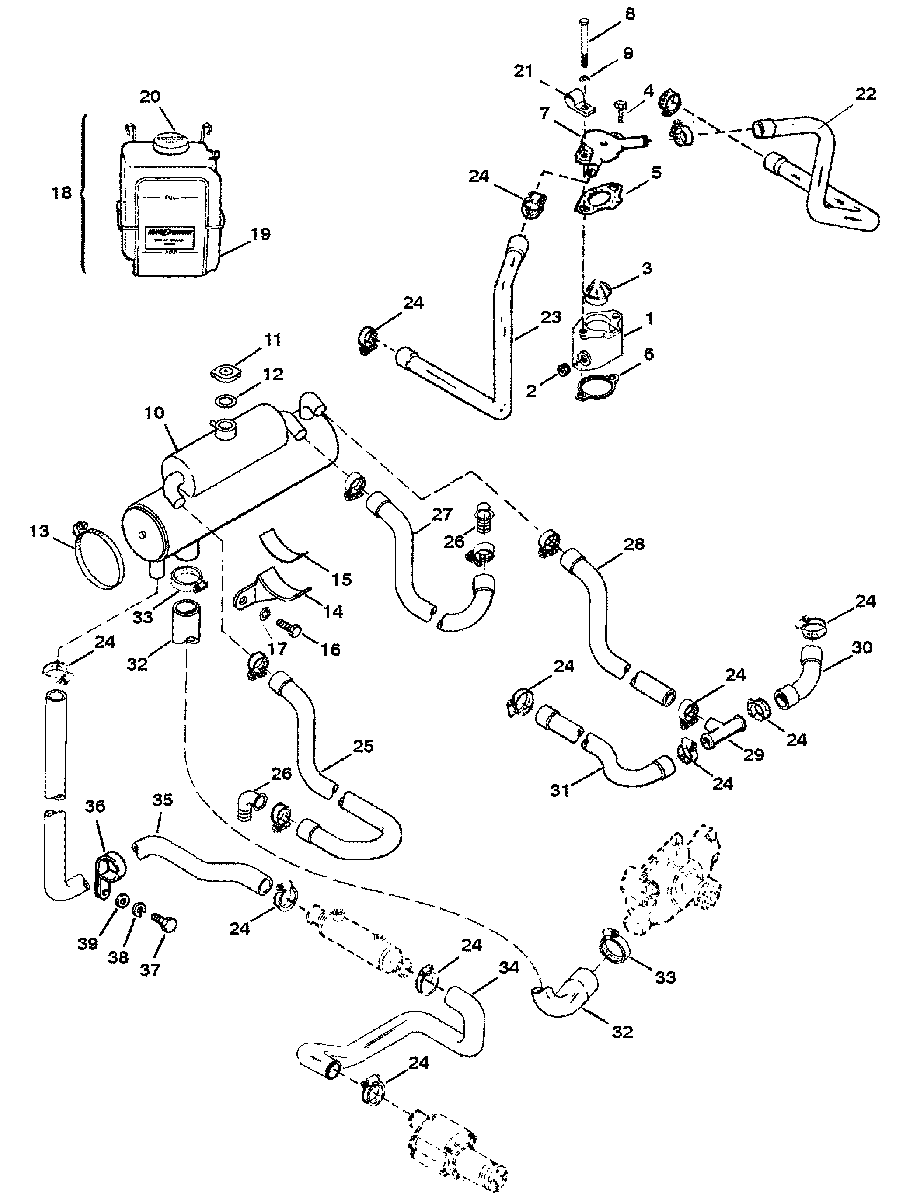

CLOSED COOLING SYSTEM для Mercruiser - 5.7L MIE GM 350 V-8 1996 0F746100 THRU 0K040306

  • №
    Артикул
    Название
  • 1
    55131A5 THERMOSTAT HOUSING
    THERMOSTAT HOUSING
  • 2
    22-32803 PIPE PLUG
    PIPE PLUG
  • 3
    8M0109441 THERMOSTAT (1605)
    THERMOSTAT (1605)
  • 4
    22-328022 DRAIN FITTING
    DRAIN FITTING
  • 5
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 6
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 7
    NSS COVER
    (PART OF REF #1)
    COVER
    (PART OF REF #1)
  • 8
    10-48115 SCREW
    SCREW
  • 9
    13-35048 LOCKWASHER
    LOCKWASHER
  • 10
    78094A3 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • -
    22-328022 PLUG
    PLUG
  • -
    27-65128 GASKET-END COVER
    GASKET-END COVER
  • -
    66221 COVER-END
    COVER-END
  • -
    10-66223 SCREW-END COVER
    SCREW-END COVER
  • -
    12-75451 WASHER
    WASHER
  • 11
    36-55143Q PRESSURE CAP
    PRESSURE CAP
  • 12
    27-71614 GASKET
    GASKET
  • 13
    54-815504372 CLAMP
    CLAMP
  • 14
    79437A2 BRACKET
    (PORT - BORG WARNER)
    BRACKET
    (PORT - BORG WARNER)
  • 14
    78092A1 BRACKET
    (PORT - V-DRIVE AND HURTH)
    BRACKET
    (PORT - V-DRIVE AND HURTH)
  • 14
    79438A3 BRACKET
    (STARBOARD - BORG WARNER)
    BRACKET
    (STARBOARD - BORG WARNER)
  • 14
    78093A3 BRACKET
    (STARBOARD - V-DRIVE AND HURTH)
    BRACKET
    (STARBOARD - V-DRIVE AND HURTH)
  • 15
    772233 PAD
    PAD
  • 16
    10-37612 SCREW
    SCREW
  • 17
    13-35048 LOCKWASHER
    LOCKWASHER
  • 18
    71587A10 COOLANT RECOVERY SYSTEM
    (SEE NOTE)
    COOLANT RECOVERY SYSTEM
    (SEE NOTE)
  • 19
    71587A11 PLASTIC BOTTLE
    PLASTIC BOTTLE
  • 20
    72058 CAP
    CAP
  • 21
    54-97862 CLAMP
    CLAMP
  • 22
    32-8066351 HOSE-COVER TO MANIFOLD
    (PORT)
    HOSE-COVER TO MANIFOLD
    (PORT)
  • 23
    32-8066361 HOSE-COVER TO MANIFOLD
    (STARBOARD)
    HOSE-COVER TO MANIFOLD
    (STARBOARD)
  • 24
    54-815504220 CLAMP
    CLAMP
  • 25
    32-19403 HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD)
    HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD)
  • 25
    32-919542 HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD - V-DRIVE)
    HOSE-RESERVOIR TO MANIFOLD
    (STARBOARD - V-DRIVE)
  • 26
    22-36305T ELBOW
    (TOP - 90 DEG.)
    ELBOW
    (TOP - 90 DEG.)
  • 27
    32-19404 HOSE-RESERVOIR TO MANIFOLD
    (PORT)
    HOSE-RESERVOIR TO MANIFOLD
    (PORT)
  • 27
    32-919542 HOSE-RESERVOIR TO MANIFOLD
    (PORT - V-DRIVE)
    HOSE-RESERVOIR TO MANIFOLD
    (PORT - V-DRIVE)
  • 28
    32-8M0062665 HOSE-TEE TO RESERVOIR
    (REVERSE ELBOW V-DRIVE)
    HOSE-TEE TO RESERVOIR
    (REVERSE ELBOW V-DRIVE)
  • 28
    32-91033 HOSE-TEE TO RESERVOIR
    HOSE-TEE TO RESERVOIR
  • 29
    22-55133 TEE
    TEE
  • 30
    32-8174382 HOSE-TEE TO EXHAUST ELBOW
    (PORT)
    HOSE-TEE TO EXHAUST ELBOW
    (PORT)
  • 31
    32-8174392 HOSE-TEE TO EXHAUST ELBOW
    (STARBOARD)
    HOSE-TEE TO EXHAUST ELBOW
    (STARBOARD)
  • 32
    32-97525 HOSE-RESERVOIR TO WATER PUMP
    HOSE-RESERVOIR TO WATER PUMP
  • 33
    54-815504232 CLAMP
    CLAMP
  • 34
    32-92833 HOSE-WATER PUMP TO OIL COOLER
    HOSE-WATER PUMP TO OIL COOLER
  • 35
    32-92837 HOSE-RESERVOIR TO OIL COOLER
    HOSE-RESERVOIR TO OIL COOLER
  • 36
    54-47715 CLIP
    CLIP
  • 37
    10-47277 SCREW
    SCREW
  • 38
    13-39107 LOCKWASHER
    LOCKWASHER
  • 39
    12-26825 WASHER
    WASHER
  • -
    27-806871A96 GASKET SET-OVERHAUL
    GASKET SET-OVERHAUL
