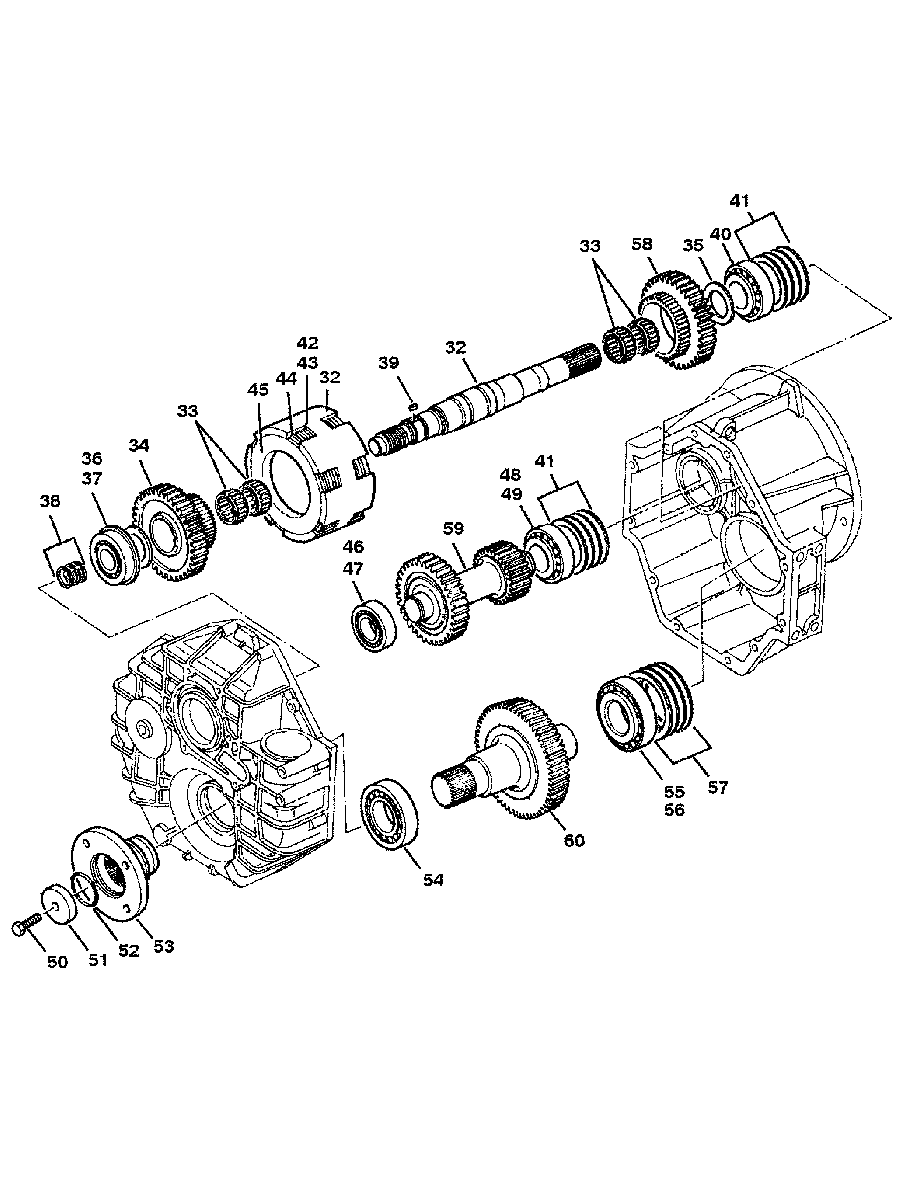

TRANSMISSION (DIRECT DRIVE)(HURTH) для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F622151 THRU 0F746099

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (1.5:1 RATIO)
  • -
    863744T3 TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.0:1 RATIO)
  • -
    863744T4 TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
    TRANSMISSION ASSEMBLY
    (2.5:1 RATIO)
  • 32
    813306 INPUT SHAFT
    INPUT SHAFT
  • 33
    31-813307 ROLLER BEARING
    ROLLER BEARING
  • 34
    43-813308 GEAR
    GEAR
  • 35
    12-813309 WASHER
    WASHER
  • 36
    31-852066 TAPERED ROLLER BEARING (INNER)
    TAPERED ROLLER BEARING (INNER)
  • 37
    31-852066 TAPERED ROLLER BEARING (OUTER)
    TAPERED ROLLER BEARING (OUTER)
  • 38
    53-813312 SNAP RING
    SNAP RING
  • 39
    28-813313 KEY
    KEY
  • 40
    30-813314 BALL BEARING
    BALL BEARING
  • 41
    15-813315 SHIM (.10 MM)
    SHIM (.10 MM)
  • 41
    15-813316 SHIM (.15 MM)
    SHIM (.15 MM)
  • 41
    15-813317 SHIM (.20MM)
    SHIM (.20MM)
  • 41
    15-813318 SHIM (.50 MM)
    SHIM (.50 MM)
  • 42
    813319 INNER CLUTCH DISC
    INNER CLUTCH DISC
  • 43
    813320 OUTER CLUTCH DISC
    OUTER CLUTCH DISC
  • 44
    53-813321 SNAP RING
    SNAP RING
  • 45
    813322 PRESSURE DISC
    PRESSURE DISC
  • 46
    31-813323 TAPERED ROLLER BEARING (INNER)
    TAPERED ROLLER BEARING (INNER)
  • 47
    31-813324 TAPERED ROLLER BEARING (OUTER)
    TAPERED ROLLER BEARING (OUTER)
  • 48
    31-813325 TAPERED ROLLER BEARING (INNER)
    TAPERED ROLLER BEARING (INNER)
  • 49
    31-813326 TAPERED ROLLER BEARING (OUTER)
    TAPERED ROLLER BEARING (OUTER)
  • 50
    10-813327 SCREW
    SCREW
  • 51
    23-813328 SPACER
    SPACER
  • 52
    25-813329 O-RING
    O-RING
  • 53
    813330 OUTPUT FLANGE
    OUTPUT FLANGE
  • 54
    31-813331 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 55
    31-813332 TAPERED ROLLER BEARING (INNER)
    TAPERED ROLLER BEARING (INNER)
  • 56
    31-813333 TAPERED ROLLER BEARING (OUTER)
    TAPERED ROLLER BEARING (OUTER)
  • 57
    15-813334 SHIM (.10 MM)
    SHIM (.10 MM)
  • 57
    15-813335 SHIM (.15 MM)
    SHIM (.15 MM)
  • 57
    15-813336 SHIM (.30 MM)
    SHIM (.30 MM)
  • 57
    15-813337 SHIM (.50MM)
    SHIM (.50MM)
  • 58
    43-813338 GEAR
    1.5:1 RATIO
    GEAR
    1.5:1 RATIO
  • 59
    813339 INTERMEDIATE SHAFT
    1.5:1 RATIO
    INTERMEDIATE SHAFT
    1.5:1 RATIO
  • 60
    813340 OUTPUT SHAFT
    1.5:1 RATIO
    OUTPUT SHAFT
    1.5:1 RATIO
  • 58
    43-813341 GEAR
    2.0:1 RATIO
    GEAR
    2.0:1 RATIO
  • 59
    813342 INTERMEDIATE SHAFT
    2.0:1 RATIO
    INTERMEDIATE SHAFT
    2.0:1 RATIO
  • 60
    813343 OUTPUT SHAFT
    2.0:1 RATIO
    OUTPUT SHAFT
    2.0:1 RATIO
  • 58
    43-813344 GEAR
    2.5:1 RATIO
    GEAR
    2.5:1 RATIO
  • 59
    813345 INTERMEDIATE SHAFT
    2.5:1 RATIO
    INTERMEDIATE SHAFT
    2.5:1 RATIO
  • 60
    813346 OUTPUT SHAFT
    2.5:1 RATIO
    OUTPUT SHAFT
    2.5:1 RATIO
