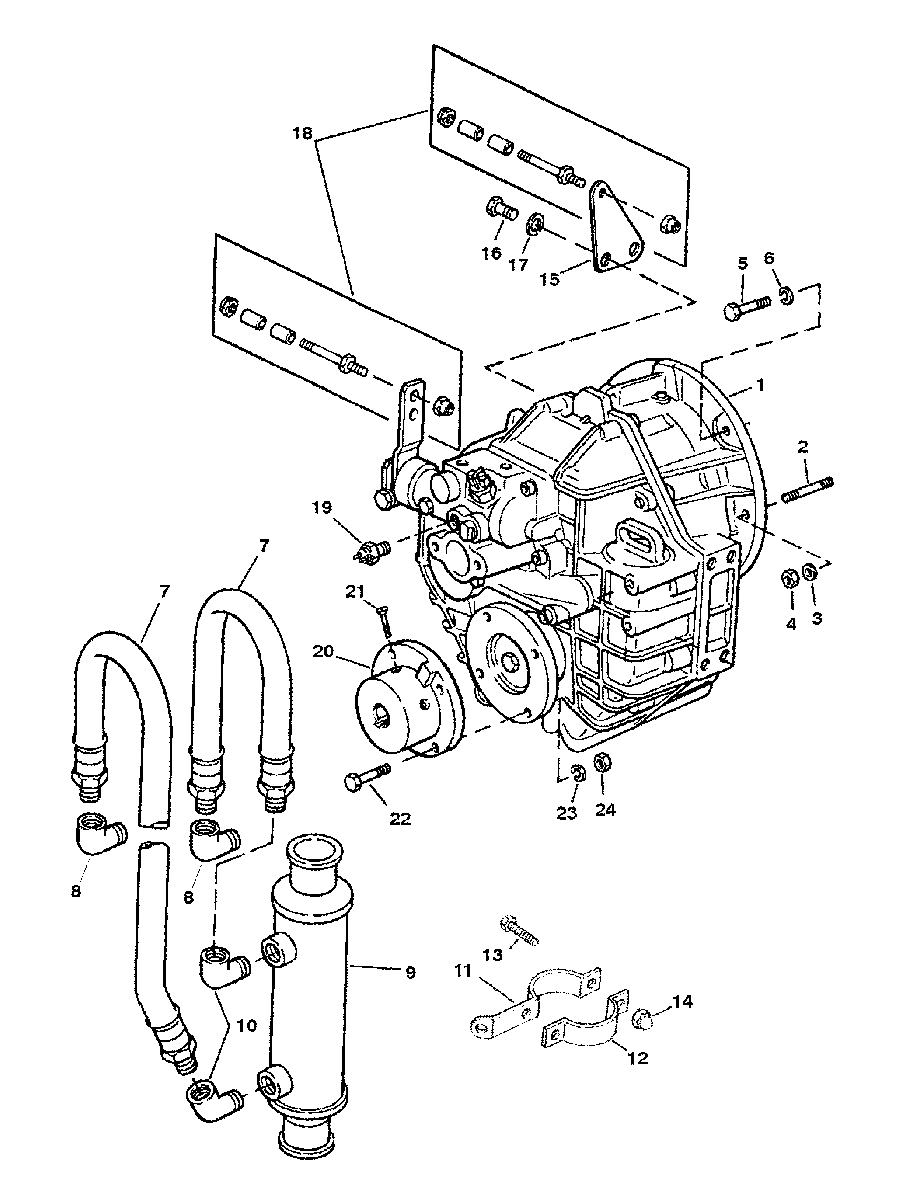

TRANSMISSION AND RELATED PARTS (HURTH) для Mercruiser - 5.7L MIE GM 350 V-8 1994-1995 0F622151 THRU 0F746099

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION (1.5:1 RATIO)
    DIRECT DRIVE
    TRANSMISSION (1.5:1 RATIO)
    DIRECT DRIVE
  • 1
    863744T3 TRANSMISSION (2.0:1 RATIO)
    DIRECT DRIVE
    TRANSMISSION (2.0:1 RATIO)
    DIRECT DRIVE
  • 1
    863744T4 TRANSMISSION (2.5:1 RATIO)
    DIRECT DRIVE
    TRANSMISSION (2.5:1 RATIO)
    DIRECT DRIVE
  • 1
    863745T2 TRANSMISSION (1.5:1 RATIO)
    V-DRIVE
    TRANSMISSION (1.5:1 RATIO)
    V-DRIVE
  • 1
    863745T3 TRANSMISSION (2.0:1 RATIO)
    V-DRIVE
    TRANSMISSION (2.0:1 RATIO)
    V-DRIVE
  • 2
    16-805259 STUD
    STUD
  • 3
    12-22248 WASHER
    WASHER
  • 4
    11-34933 NUT
    NUT
  • 5
    10-47462 SCREW
    SCREW
  • 6
    13-32993 LOCKWASHER
    LOCKWASHER
  • 7
    32-4751613 HOSE
    HOSE
  • 8
    22-63835 ELBOW (45_)
    ELBOW (45_)
  • 9
    63832A1 COOLER ASSEMBLY
    COOLER ASSEMBLY
  • 10
    22-47629 ELBOW (90_)
    ELBOW (90_)
  • 11
    63820T BRACKET (LONG)
    BRACKET (LONG)
  • 12
    56328A1 BRACKET (SHORT)
    BRACKET (SHORT)
  • 13
    10-60300 SCREW
    SCREW
  • 14
    11-30506 NUT
    NUT
  • 15
    806238 BRACKET
    BRACKET
  • 16
    10-40001124 SCREW
    SCREW
  • 17
    13-400247 LOCKWASHER
    LOCKWASHER
  • 18
    16-97477A3 STUD KIT
    STUD KIT
  • 19
    87-88031 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 20
    79476A1 FLANGE ASSEMBLY (1")
    FLANGE ASSEMBLY (1")
  • 20
    79476A2 FLANGE ASSEMBLY (1-1/8")
    FLANGE ASSEMBLY (1-1/8")
  • 20
    79476A3 FLANGE ASSEMBLY (1-1/4")
    FLANGE ASSEMBLY (1-1/4")
  • 20
    79476A4 FLANGE ASSEMBLY (1-3/8")
    FLANGE ASSEMBLY (1-3/8")
  • 20
    79476A5 FLANGE ASSEMBLY (1-1/2")
    FLANGE ASSEMBLY (1-1/2")
  • 20
    79476A6 FLANGE ASSEMBLY (1-3/4")
    FLANGE ASSEMBLY (1-3/4")
  • 20
    79476A7 FLANGE ASSEMBLY (2")
    FLANGE ASSEMBLY (2")
  • 21
    10-60171 SCREW-FLANGE (1-1/4")
    SCREW-FLANGE (1-1/4")
  • 21
    10-60169 SCREW-FLANGE (3/4")
    SCREW-FLANGE (3/4")
  • 22
    10-805159 SCREW-FLANGE (1-1/2")
    SCREW-FLANGE (1-1/2")
  • 23
    13-32993 LOCKWASHER
    LOCKWASHER
  • 24
    11-22024 NUT
    NUT
