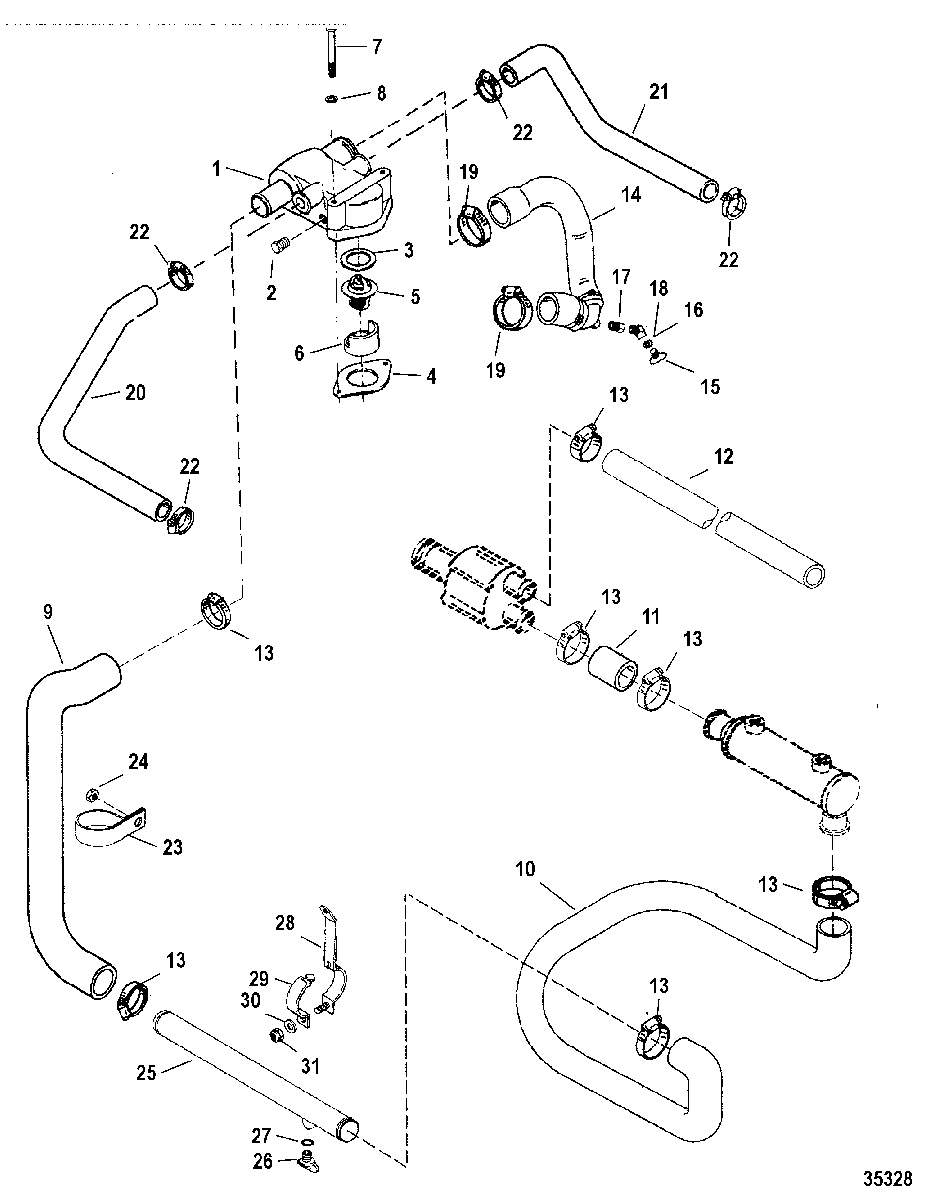

STANDARD COOLING SYSTEM для Mercruiser - 5.7L COMPETITION SKI (GEN+) GM 350 V-8 1998 0L002005 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    860256A4 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    32-808033 HOSE, Molded
    HOSE, Molded
  • 10
    32-808032 HOSE, Molded
    HOSE, Molded
  • 11
    32-866331 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    HOSE, (96.00 Inches Bulk)
  • 13
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 14
    32-861590A05 HOSE, Molded
    HOSE, Molded
  • 14
    32-861590A05 HOSE ASSEMBLY, Thermostat Housing to Water Pump With Drain
    (W/ DRAIN)
    HOSE ASSEMBLY, Thermostat Housing to Water Pump With Drain
    (W/ DRAIN)
  • 15
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 16
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 17
    22-860088 BUSHING
    BUSHING
  • 18
    22-37682 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 18
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 19
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 20
    32-8066351 HOSE
    HOSE
  • 21
    32-807697 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 22
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 23
    54-816398 CLIP
    CLIP
  • 24
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 25
    860315A1 TUBE, Hose Extender
    TUBE, Hose Extender
  • 26
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 27
    25-32509 O-RING, (.489 x .070)
    O-RING, (.489 x .070)
  • 28
    860418T BRACKET
    BRACKET
  • 29
    860417T CLAMP
    CLAMP
  • 30
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 31
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-861246A05 GASKET SET
    GASKET SET
  • -
    807252T5 THERMOSTAT KIT
    THERMOSTAT KIT
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
