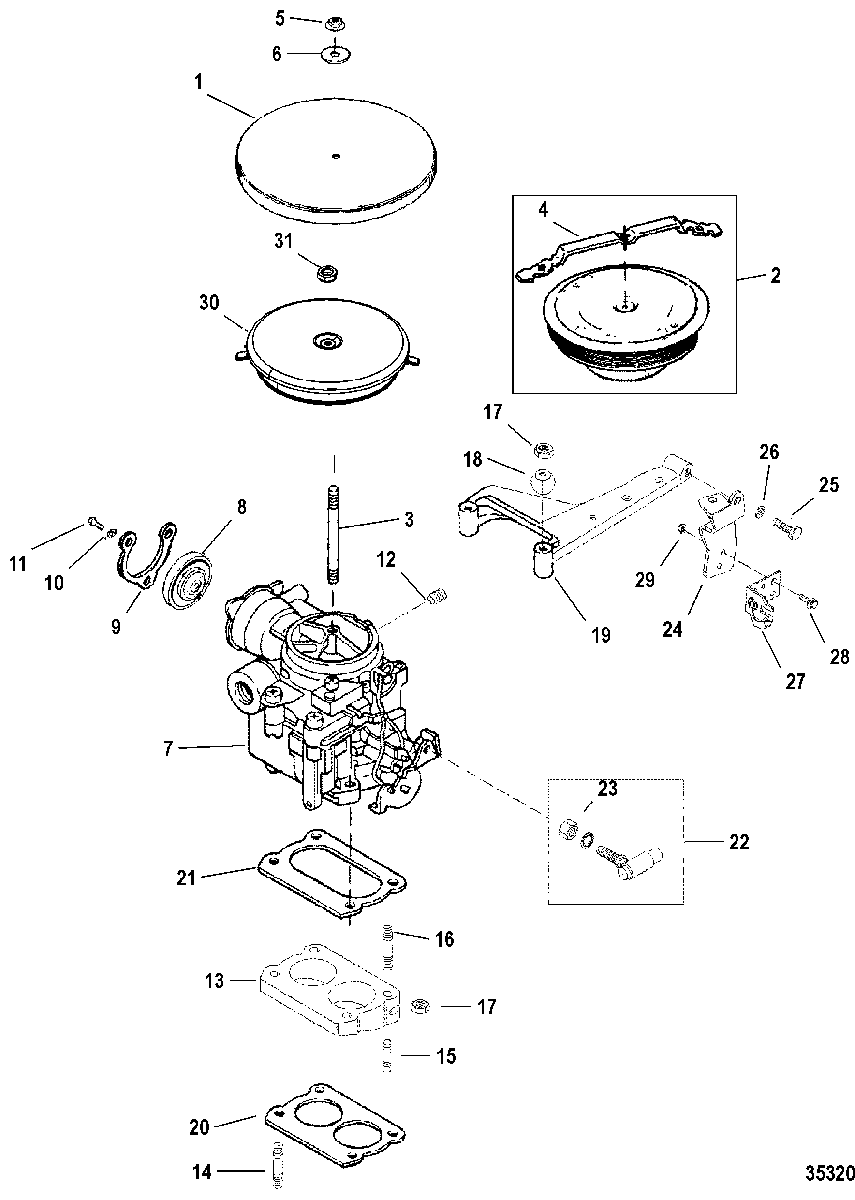

CARBURETOR AND THROTTLE LINKAGE(2 BARREL) для Mercruiser - 5.7L COMPETITION SKI (GEN+) GM 350 V-8 1998 0L002005 THRU 0M316999

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, Carburetor
    COVER, Carburetor
  • 2
    805016A1 FLAME ARRESTOR
    (Without Molded Hose Retainer)
    FLAME ARRESTOR
    (Without Molded Hose Retainer)
  • 3
    16-8M0113181 STUD, (.250-20/.250-28 x Special) (3 IN.)
    STUD, (.250-20/.250-28 x Special) (3 IN.)
  • 4
    805313 RETAINER
    RETAINER
  • 5
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 6
    12-86400 WASHER
    WASHER
  • 7
    3310-864943A01 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 8
    70125A02 COVER, Choke
    COVER, Choke
  • 9
    10-33047 SCREW
    SCREW
  • 10
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 11
    53-805140 PLATE
    PLATE
  • 12
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 13
    807265A1 WEDGE
    WEDGE
  • 14
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
  • 15
    16-63332 STUD, (.312 x 1.2812)
    STUD, (.312 x 1.2812)
  • 16
    16-807975 STUD, (.312 x 2.370)
    STUD, (.312 x 2.370)
  • 17
    11-862902 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 18
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 19
    805489T BRACKET
    BRACKET
  • 20
    27-8079821 GASKET
    GASKET
  • 21
    27-861246 GASKET
    GASKET
  • 22
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 23
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 24
    807494T BRACKET
    BRACKET
  • 25
    10-36137 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 26
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 27
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 28
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 29
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 30
    863200 FLAME ARRESTOR
    (With Molded Hose Retainer)
    FLAME ARRESTOR
    (With Molded Hose Retainer)
  • 31
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-861246A05 GASKET SET
    GASKET SET
  • -
    8M0088397 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
