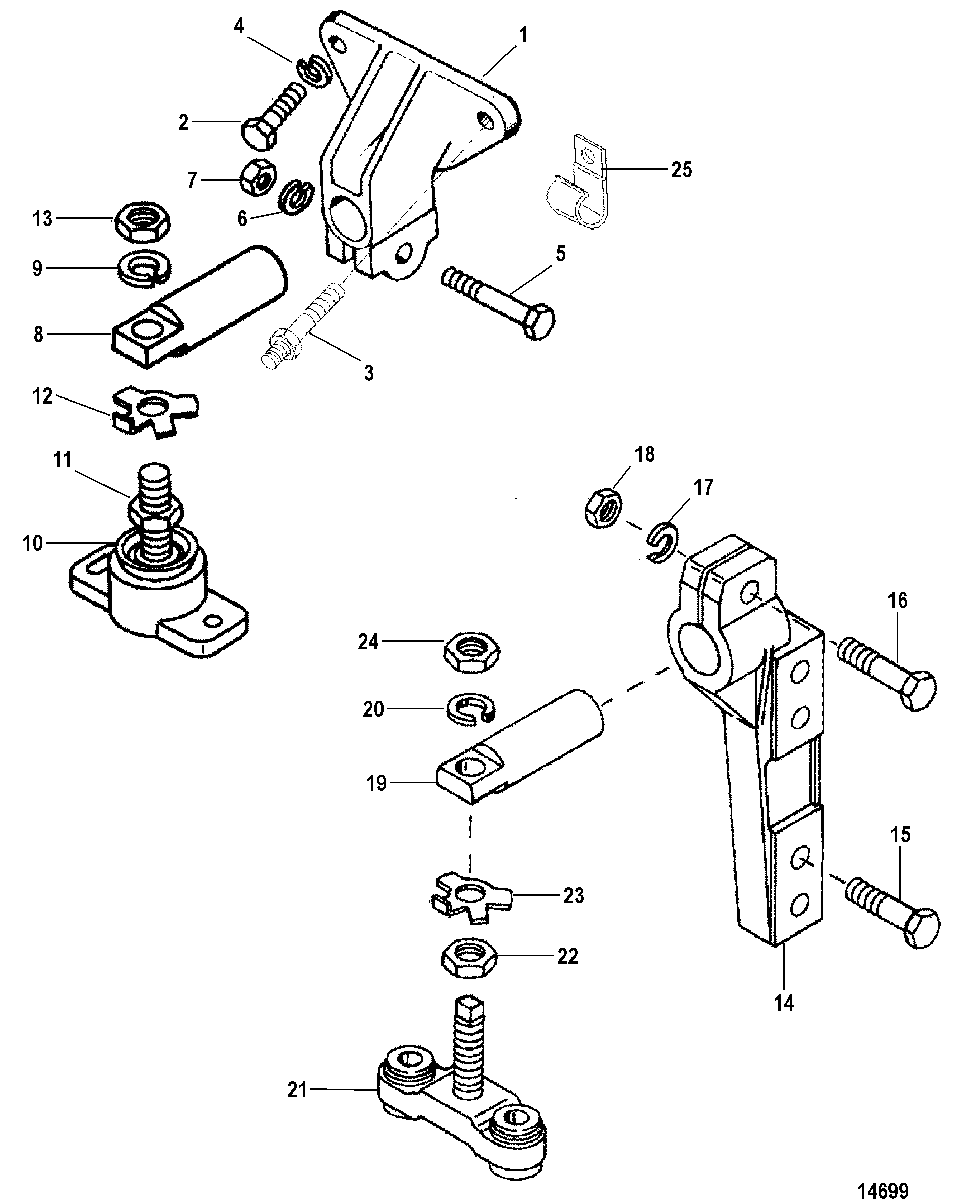

Transmission And Engine Mounting(Borg-Warner 5000) для Mercruiser - 383 MAG STROKER INBOARD 1G300000 & Up
-
№АртикулНазвание
-
171128A2 BRACKETBRACKET
-
210-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
316-8M2004610 STUD, (3/16-16 x 2.25)STUD, (3/16-16 x 2.25)
-
413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
510-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
711-82670814 NUT, (.437-14)NUT, (.437-14)
-
866166A4 TRUNNIONTRUNNION
-
913-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1066284A2 BASE ASSEMBLY, Engine EndBASE ASSEMBLY, Engine End
-
1111-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1214-66658 TAB WASHERTAB WASHER
-
1311-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
14805496T BRACKET
(Port) (Down Angle Transmission)BRACKET
(Port) (Down Angle Transmission) -
14805496T1 BRACKET
(Starboard) (Down Angle Transmission)BRACKET
(Starboard) (Down Angle Transmission) -
14807724T BRACKET
(Port) (V-Drive Transmission)BRACKET
(Port) (V-Drive Transmission) -
14807725T BRACKET
(Starboard) (V-Drive Transmission)BRACKET
(Starboard) (V-Drive Transmission) -
1510-4009760 SCREW, (M12 x 60)SCREW, (M12 x 60)
-
1610-57357 SCREW, (.437-13 x 2.250)
(Down Angle Transmission)SCREW, (.437-13 x 2.250)
(Down Angle Transmission) -
1610-47724 SCREW, (.437-14 x 3.00)
(V-Drive Transmission)SCREW, (.437-14 x 3.00)
(V-Drive Transmission) -
1713-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1811-82670814 NUT, (.437-14)NUT, (.437-14)
-
1966166A4 TRUNNIONTRUNNION
-
2013-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
21816326A2 BASE ASSEMBLY, Transmission EndBASE ASSEMBLY, Transmission End
-
2211-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2314-66658 TAB WASHERTAB WASHER
-
2411-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2554-78945 J CLAMP, Harness Support, ClipJ CLAMP, Harness Support, Clip
