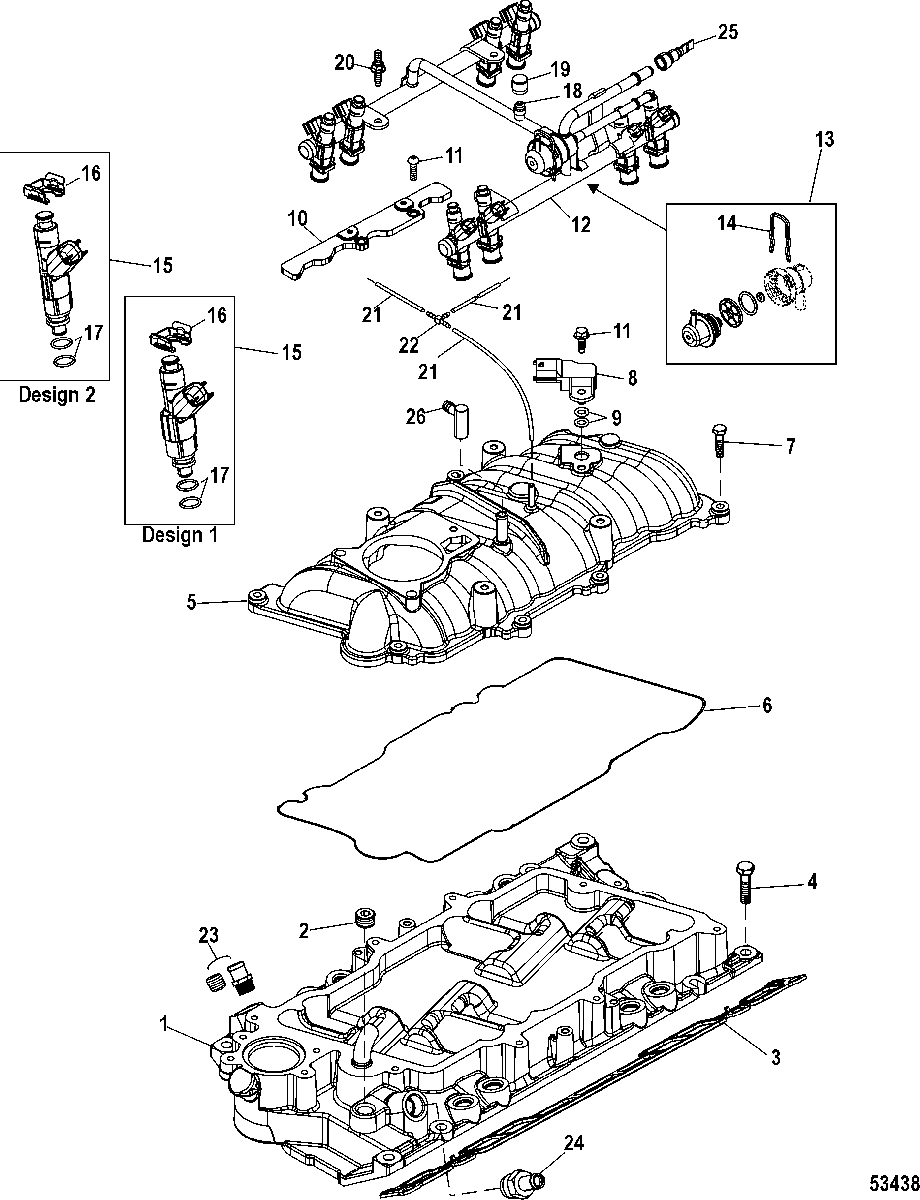

Intake Manifold and Fuel Rail для Mercruiser - 383 MAG STROKER INBOARD 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    8M0104793 MANIFOLD, Intake
    Design I
    MANIFOLD, Intake
    Design I
  • 2
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 3
    27-807473A1 GASKET SET, Intake Manifold
    GASKET SET, Intake Manifold
  • 4
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 5
    8M0097033 MANIFOLD, Intake, Upper
    MANIFOLD, Intake, Upper
  • 6
    27-8M0097034 GASKET, Intake Manifold
    GASKET, Intake Manifold
  • 7
    10-885166 SCREW
    SCREW
  • 8
    8M0087834 SENSOR, Temperature and Pressure
    SENSOR, Temperature and Pressure
  • 9
    25-881733 SEAL
    SEAL
  • 10
    NSS NOT SOLD SEPARATE, Bracket - Component of 885164
    NOT SOLD SEPARATE, Bracket - Component of 885164
  • 11
    10-885180 SCREW
    SCREW
  • 12
    8M0070997 FUEL RAIL ASSEMBLY
    FUEL RAIL ASSEMBLY
  • 13
    885174 REGULATOR, Fuel Pressure
    REGULATOR, Fuel Pressure
  • 14
    885175 CLIP, Retaining
    CLIP, Retaining
  • 15
    885176 INJECTOR, Stamping 125
    For Design I
    INJECTOR, Stamping 125
    For Design I
  • 15
    879312003 INJECTOR, Stamping 126
    For Design II
    INJECTOR, Stamping 126
    For Design II
  • 16
    8M2001570 RETAINER, Injector
    RETAINER, Injector
  • 17
    25-892609 O-RING KIT
    For Design I
    O-RING KIT
    For Design I
  • 17
    25-8M0046869 O-RING KIT
    For Design II
    O-RING KIT
    For Design II
  • 18
    885178 VALVE, Fuel Pressure Service
    VALVE, Fuel Pressure Service
  • 19
    885179 CAP, Fuel Pressure Sevice Valve
    CAP, Fuel Pressure Sevice Valve
  • 20
    10-885180 SCREW
    SCREW
  • 21
    32-8M0063567 HOSE, 58.00 inch Bulk, Cut to Appropriate Length
    HOSE, 58.00 inch Bulk, Cut to Appropriate Length
  • 22
    22-806689 FITTING, Tee
    FITTING, Tee
  • 23
    22-845174 PLUG, (.500-14 x .610) Brass
    PLUG, (.500-14 x .610) Brass
  • 24
    22-863426 FITTING, EGR Plug
    FITTING, EGR Plug
  • 25
    22-8623601 PLUG, Fuel Rail Block Off
    PLUG, Fuel Rail Block Off
  • 26
    22-863432T FITTING
    FITTING
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
