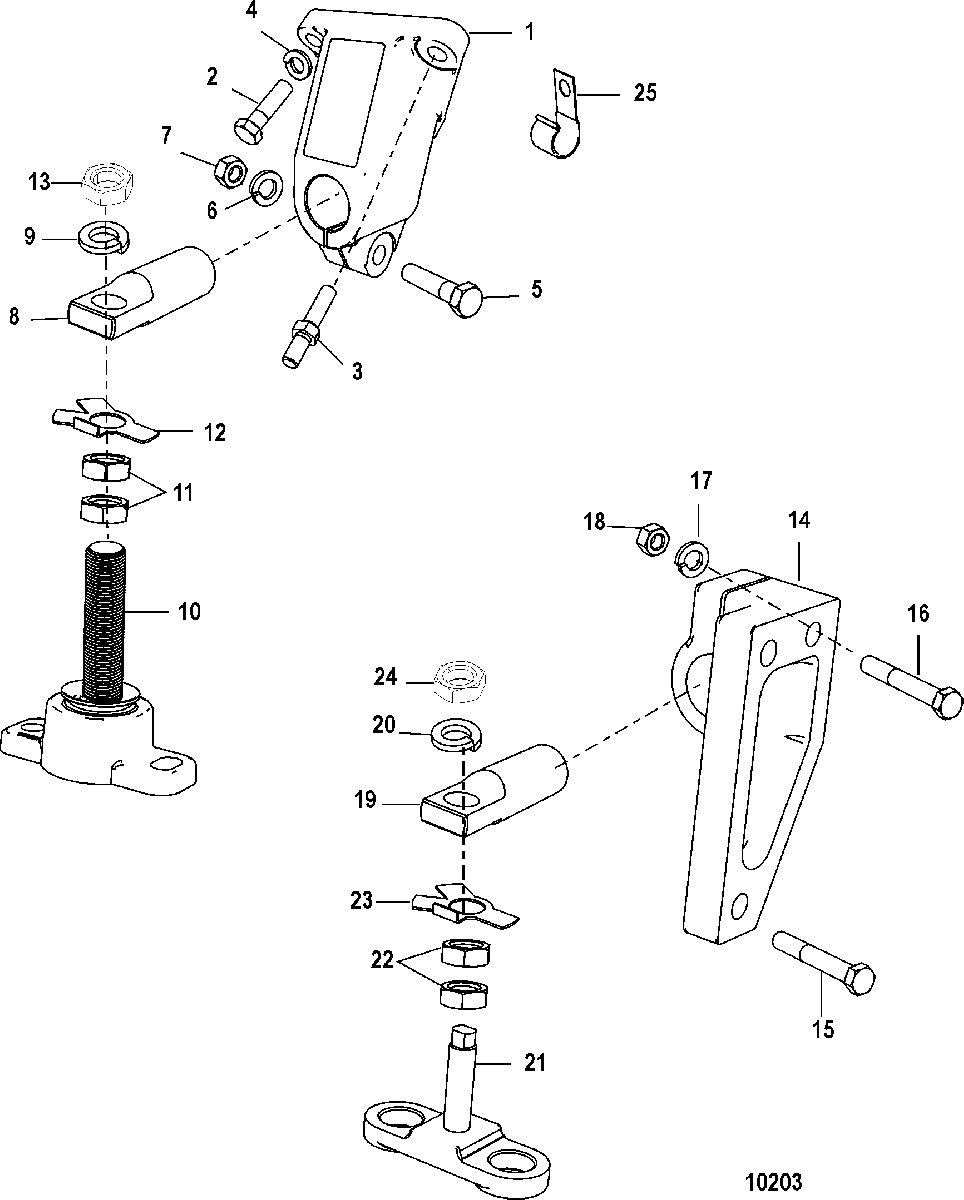

TRANSMISSION AND ENGINE MOUNTING(BORG-WARNER 5000) для Mercruiser - 357 HRZ 630A BOBTAIL RM 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    71128A2 BRACKET, Front
    BRACKET, Front
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    16-8M2004610 STUD, (3/16-16 x 2.25)
    STUD, (3/16-16 x 2.25)
  • 4
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 5
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 6
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 7
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 8
    66166A4 TRUNNION
    TRUNNION
  • 9
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 10
    66284A2 BASE ASSEMBLY, Engine End
    BASE ASSEMBLY, Engine End
  • 11
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 12
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 13
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 14
    805496T BRACKET
    (Port)(Down Angle Transmission)
    BRACKET
    (Port)(Down Angle Transmission)
  • 14
    805496T1 BRACKET
    (Starboard)(Down Angle Transmission)
    BRACKET
    (Starboard)(Down Angle Transmission)
  • 14
    807724T BRACKET
    (Port)(V-Drive Transmission)
    BRACKET
    (Port)(V-Drive Transmission)
  • 14
    807725T BRACKET
    (Starboard)(V-Drive Transmission)
    BRACKET
    (Starboard)(V-Drive Transmission)
  • 15
    10-4009760 SCREW, (M12 x 60)
    SCREW, (M12 x 60)
  • 16
    10-57357 SCREW, (.437-13 x 2.250)
    (Down Angle Transmission)
    SCREW, (.437-13 x 2.250)
    (Down Angle Transmission)
  • 16
    10-47724 SCREW, (.437-14 x 3.00)
    (V-Drive Transmission)
    SCREW, (.437-14 x 3.00)
    (V-Drive Transmission)
  • 17
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 18
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 19
    66166A4 TRUNNION
    TRUNNION
  • 20
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 21
    816326A2 BASE ASSEMBLY, Transmission End
    BASE ASSEMBLY, Transmission End
  • 22
    11-816331 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 23
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 24
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 25
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
