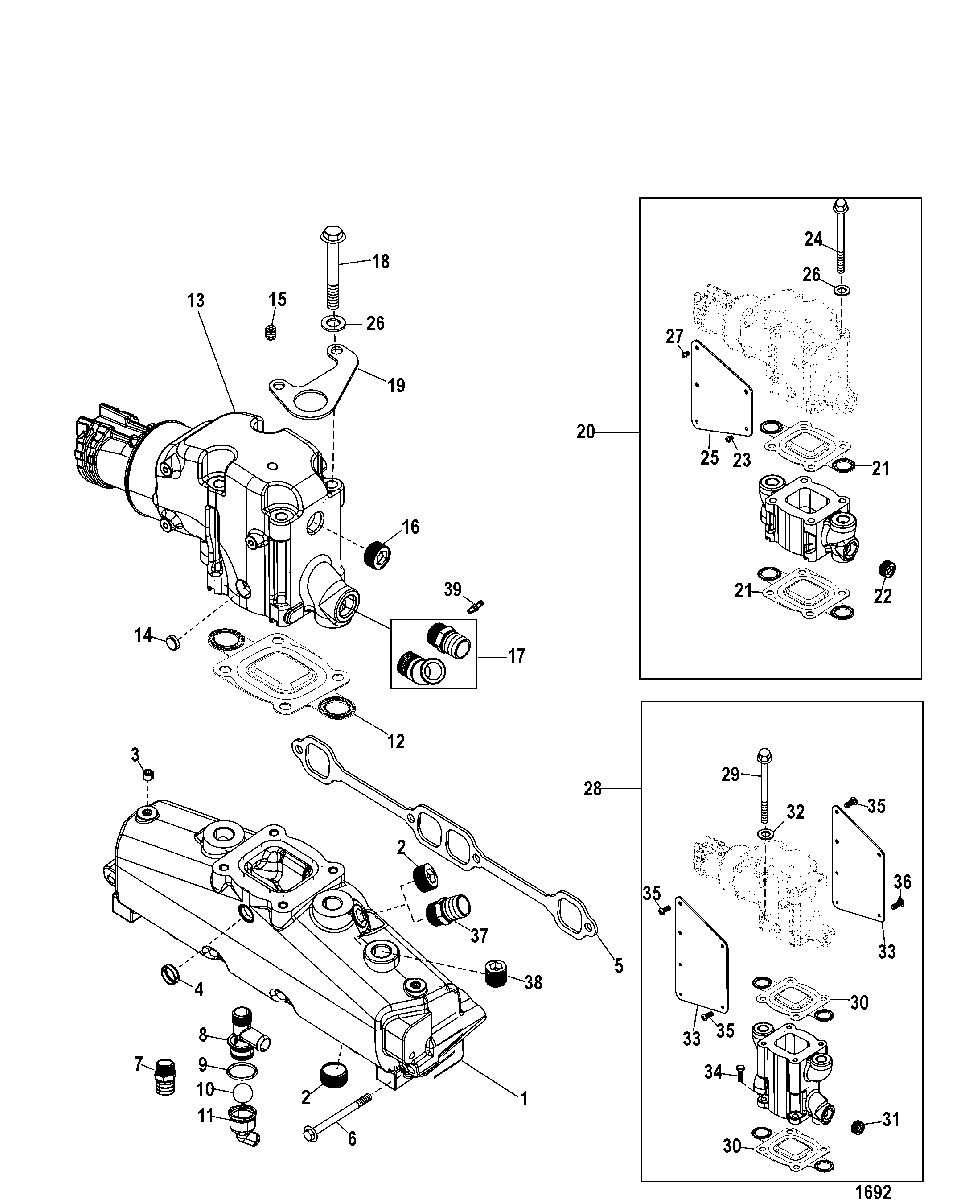

EXHAUST MANIFOLD AND ELBOW для Mercruiser - 357 HRZ 630A BOBTAIL RM 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    22-390721 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 4
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 5
    27-33395 GASKET
    GASKET
  • 6
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 7
    22-866725 FITTING, Straight (.750-14)
    FITTING, Straight (.750-14)
  • 12
    27-864549A02 GASKET, Elbow(Block Off)
    GASKET, Elbow(Block Off)
  • 13
    864591T02 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    19-864689 PLUG, Expansion
    PLUG, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    22-864623A1 FITTING ASSEMBLY, Barb (With Tapped Fitting)
    FITTING ASSEMBLY, Barb (With Tapped Fitting)
  • 17
    22-865159 FITTING, 45 Degree
    FITTING, 45 Degree
  • 18
    10-864665 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 19
    864263 BRACKET, Flushing Attatchment
    BRACKET, Flushing Attatchment
  • 20
    864929A4 RISER EXTENSION KIT (3 In. Warm Riser)
    RISER EXTENSION KIT (3 In. Warm Riser)
  • 21
    27-864549A02 GASKET, Block Off
    GASKET, Block Off
  • 21
    27-864547A02 GASKET, FullFlow
    (With Risers Only)
    GASKET, FullFlow
    (With Risers Only)
  • 22
    22-866725 FITTING, Straight (.750-14)
    FITTING, Straight (.750-14)
  • 23
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 24
    10-864702 BOLT, (.375-16 x 10.500)
    BOLT, (.375-16 x 10.500)
  • 25
    863714T01 BRACKET, ECM Mounting
    BRACKET, ECM Mounting
  • 26
    12-34714 WASHER
    WASHER
  • 27
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 28
    864908A2 RISER EXTENSION KIT (6 In. Warm Riser)
    RISER EXTENSION KIT (6 In. Warm Riser)
  • 29
    10-864665 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 30
    27-864549A02 GASKET, Block Off
    GASKET, Block Off
  • 30
    27-864547A02 GASKET, Full Flow
    (With Risers Only)
    GASKET, Full Flow
    (With Risers Only)
  • 31
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 32
    12-34714 WASHER
    WASHER
  • 33
    863715T01 BRACKET, ECM Mounting
    BRACKET, ECM Mounting
  • 34
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 35
    10-860008 SCREW, (.250-20 x .625) Torx
    SCREW, (.250-20 x .625) Torx
  • 36
    10-864378 SCREW, (.250-20 x .375) Torx
    SCREW, (.250-20 x .375) Torx
  • 37
    22-866725 FITTING, Straight (.750-14)
    FITTING, Straight (.750-14)
  • 38
    22-384071 FITTING, (1/2-14)
    FITTING, (1/2-14)
  • 38
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 39
    22-16604 FITTING, Straight (.125-27), Barb
    FITTING, Straight (.125-27), Barb
  • -
    27-861246A05 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
