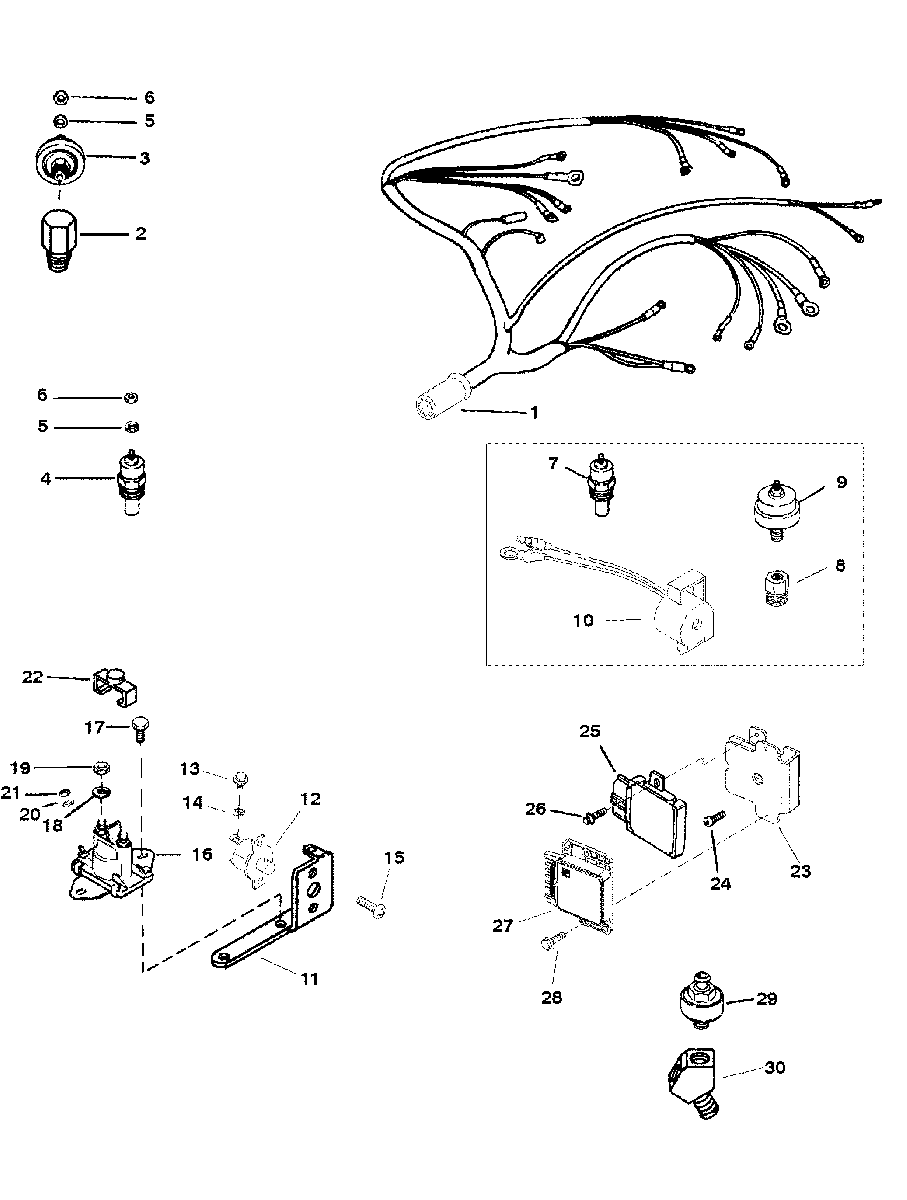

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    84-806967A2 HARNESS-WIRING
    HARNESS-WIRING
  • 2
    22-8053281 ELBOW-90 DEG. (1/8 IN.)
    ELBOW-90 DEG. (1/8 IN.)
  • 3
    8M0068784 SENDER-OIL PRESSURE
    SENDER-OIL PRESSURE
  • 3
    37293T SENDER-OIL PRESSURE
    (DUAL)
    SENDER-OIL PRESSURE
    (DUAL)
  • 4
    806490T SENDER-WATER TEMPERATURE
    SENDER-WATER TEMPERATURE
  • 4
    49734 SENDER-WATER TEMPERATURE
    (DUAL)
    SENDER-WATER TEMPERATURE
    (DUAL)
  • 5
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 6
    11-68219 NUT (#10-32)
    NUT (#10-32)
  • 7
    48952 SWITCH-WATER TEMPERATURE
    AUDIO WARNING SYSTEM
    SWITCH-WATER TEMPERATURE
    AUDIO WARNING SYSTEM
  • 8
    22-48556 BUSHING-REDUCER
    AUDIO WARNING SYSTEM
    BUSHING-REDUCER
    AUDIO WARNING SYSTEM
  • 9
    87-805605A1 SWITCH-OIL PRESSURE
    AUDIO WARNING SYSTEM
    SWITCH-OIL PRESSURE
    AUDIO WARNING SYSTEM
  • 10
    816492A6 ALARM KIT
    AUDIO WARNING SYSTEM
    ALARM KIT
    AUDIO WARNING SYSTEM
  • 11
    899719T01 BRACKET-MOUNTING
    BRACKET-MOUNTING
  • 12
    88-11178A01 BREAKER-CIRCUIT (50 AMP)
    BREAKER-CIRCUIT (50 AMP)
  • 13
    10-68513 SCREW (#10-32 X 3/8 IN.)
    SCREW (#10-32 X 3/8 IN.)
  • 14
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 15
    10-57583T SCREW (#8-32 X 3/8 IN.)
    SCREW (#8-32 X 3/8 IN.)
  • 16
    89-96158T SOLENOID-STARTER
    SOLENOID-STARTER
  • 17
    10-805564 SCREW (1/4-20)
    SCREW (1/4-20)
  • 18
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 19
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 20
    13-26996 LOCKWASHER (#10)
    LOCKWASHER (#10)
  • 21
    11-68219 NUT (10-32)
    NUT (10-32)
  • 22
    85-97861 INSULATOR-STARTER SOLENOID
    INSULATOR-STARTER SOLENOID
  • 23
    807763T BRACKET
    BRACKET
  • 24
    10-861520 SCREW (#10-32 X 1/2 IN.)
    SCREW (#10-32 X 1/2 IN.)
  • 25
    806958A01 MODULE-IGNITION CONTROL
    MODULE-IGNITION CONTROL
  • 26
    10-806826 SCREW (#8-32 X 1/4 IN.)
    SCREW (#8-32 X 1/4 IN.)
  • 27
    806611T MODULE-KNOCK CONTROL
    MODULE-KNOCK CONTROL
  • 28
    10-806827 SCREW (#8-32 X 3/8 IN.)
    SCREW (#8-32 X 3/8 IN.)
  • 29
    806612T SENSOR-KNOCK
    SENSOR-KNOCK
  • 30
    22-8067051 FITTING-Y
    FITTING-Y
