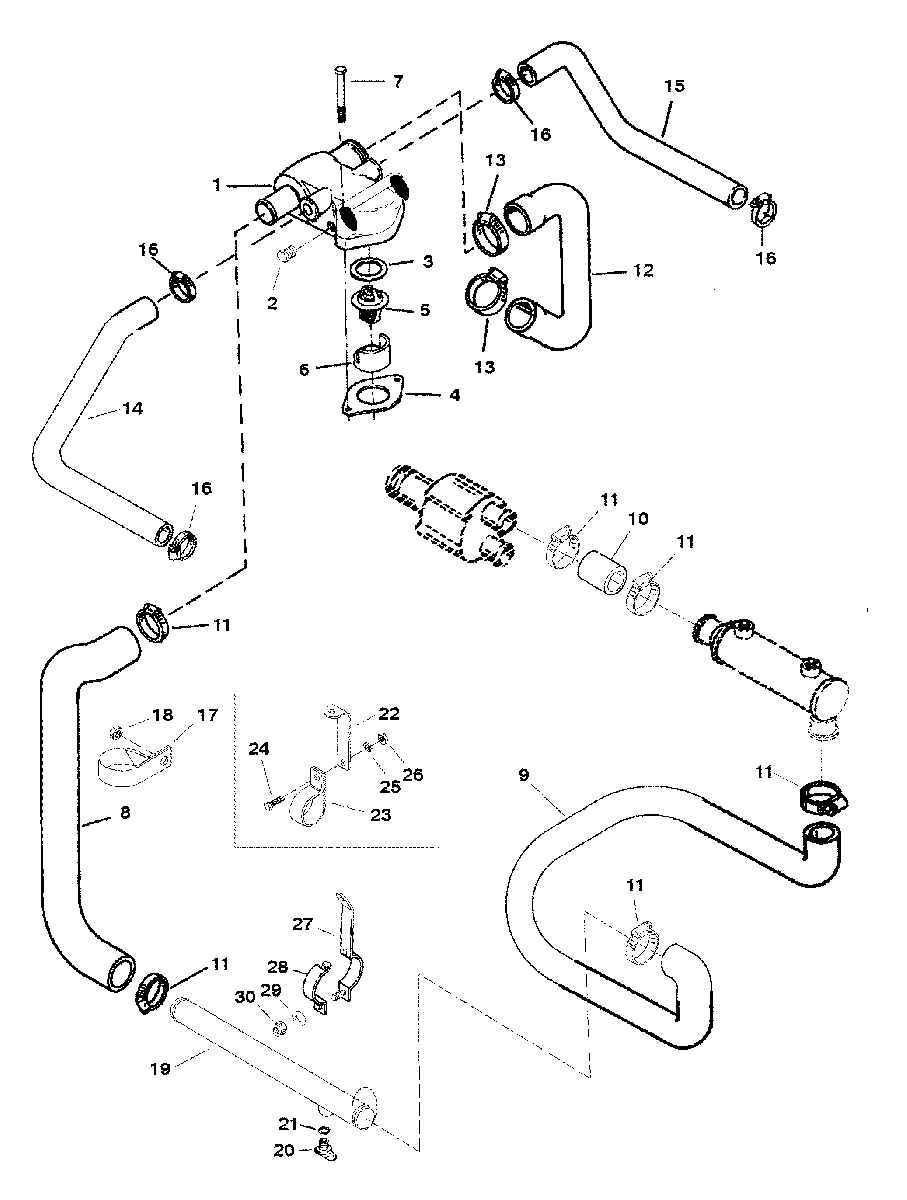

STANDARD COOLING SYSTEM для Mercruiser - 350 MAG (SKI) GM 350 V-8 1997 0K040400 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860256A4 HOUSING ASSEMBLY-THERMOSTAT
    HOUSING ASSEMBLY-THERMOSTAT
  • 2
    22-32803 PLUG-PIPE (3/8 IN.)
    PLUG-PIPE (3/8 IN.)
  • 3
    27-806871 GASKET-THERMOSTAT
    GASKET-THERMOSTAT
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113179 SCREW (3/8-16 X 3 IN.)
    SCREW (3/8-16 X 3 IN.)
  • 8
    32-808033 HOSE-THERMOSTAT HOUSING TO HOSE EXTENDER
    HOSE-THERMOSTAT HOUSING TO HOSE EXTENDER
  • 9
    32-808032 HOSE-HOSE EXTENDER TO TRANSMISSION OIL COOLER
    HOSE-HOSE EXTENDER TO TRANSMISSION OIL COOLER
  • 10
    32-866331 HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
    HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
  • 11
    54-815504222 CLAMP-HOSE
    CLAMP-HOSE
  • 12
    32-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
  • 13
    54-815504232 CLAMP
    CLAMP
  • 14
    32-8066351 HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
    HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
  • 15
    32-807697 HOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
    HOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
  • 16
    54-815504220 CLAMP-HOSE
    CLAMP-HOSE
  • 17
    54-47715 CLIP
    CLIP
  • 18
    11-29250 NUT (5/16-24)
    NUT (5/16-24)
  • 19
    860315A1 EXTENDER-HOSE
    EXTENDER-HOSE
  • 20
    22-8M0119211 PLUG-DRAIN
    PLUG-DRAIN
  • 21
    25-32509 QUAD RING
    QUAD RING
  • 22
    48134 BRACKET
    DESIGN I
    BRACKET
    DESIGN I
  • 23
    54-97862 CLAMP
    DESIGN I
    CLAMP
    DESIGN I
  • 24
    10-54630 SCREW (5/16-24 X 5/8 IN.)
    DESIGN I
    SCREW (5/16-24 X 5/8 IN.)
    DESIGN I
  • 25
    13-39107 LOCKWASHER (5/16 IN.)
    DESIGN I
    LOCKWASHER (5/16 IN.)
    DESIGN I
  • 26
    11-22053 NUT (5/16-24)
    DESIGN I
    NUT (5/16-24)
    DESIGN I
  • 27
    860418T BRACKET
    DESIGN II
    BRACKET
    DESIGN II
  • 28
    860417T CLAMP
    DESIGN II
    CLAMP
    DESIGN II
  • 29
    12-35462 WASHER
    DESIGN II
    WASHER
    DESIGN II
  • 30
    11-8267088 NUT
    DESIGN II
    NUT
    DESIGN II
  • -
    27-806871A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
