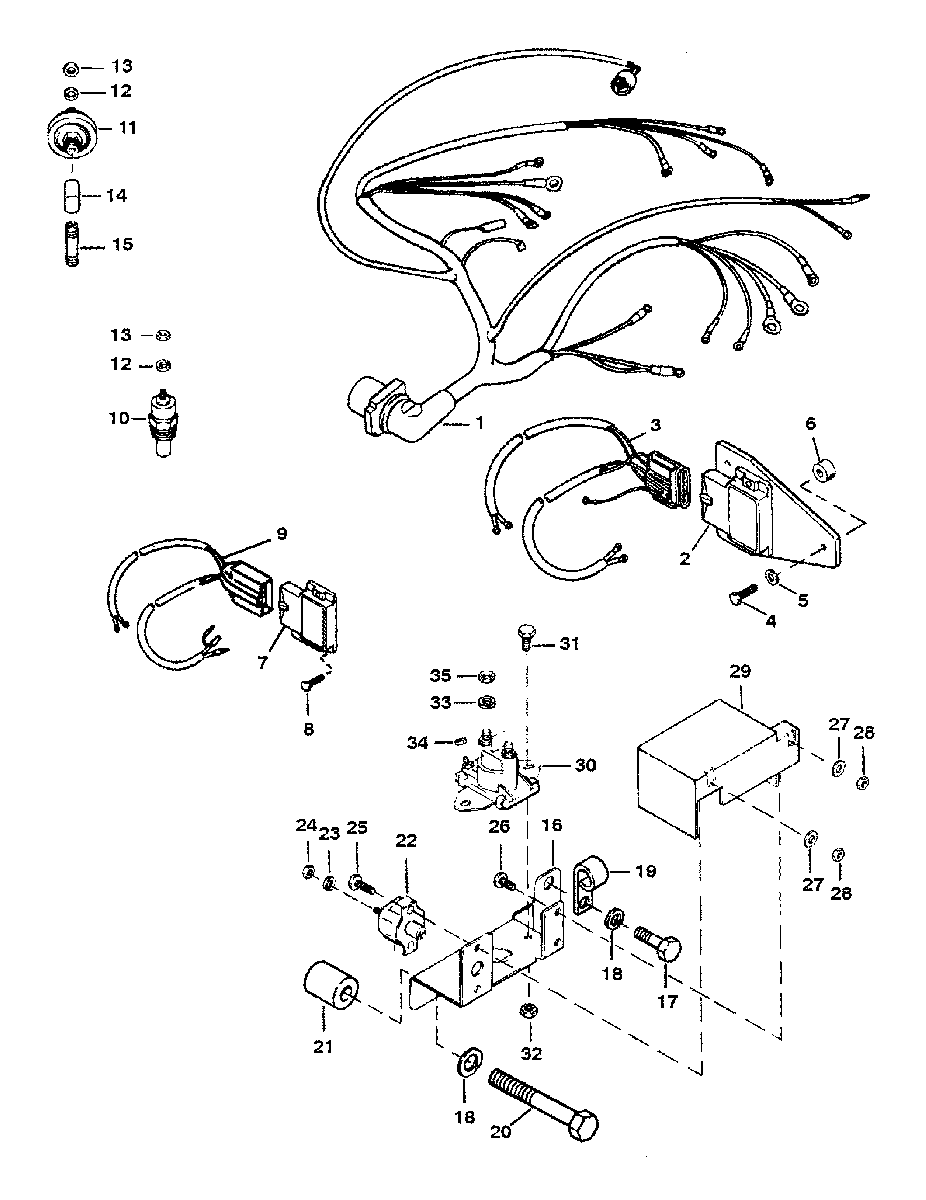

WIRING HARNESS & ELECTRICAL COMPONENTS (THUNDERBOLT IV) для Mercruiser - 350 MAG (SKI) GM 350 V-8 1991-1996 0D505450 THRU 0K040399

  • №
    Артикул
    Название
  • 1
    84-12307T3 WIRING HARNESS
    WIRING HARNESS
  • 2
    821125A1 IGNITION MODULE
    EXHAUST ELBOW MOUNTED IGNITION MODULE
    IGNITION MODULE
    EXHAUST ELBOW MOUNTED IGNITION MODULE
  • 3
    84-15275A1 HARNESS ASSEMBLY
    EXHAUST ELBOW MOUNTED IGNITION MODULE
    HARNESS ASSEMBLY
    EXHAUST ELBOW MOUNTED IGNITION MODULE
  • 4
    10-76630 SCREW
    EXHAUST ELBOW MOUNTED IGNITION MODULE
    SCREW
    EXHAUST ELBOW MOUNTED IGNITION MODULE
  • 5
    13-26992 LOCKWASHER
    EXHAUST ELBOW MOUNTED IGNITION MODULE
    LOCKWASHER
    EXHAUST ELBOW MOUNTED IGNITION MODULE
  • 6
    23-92152T SPACER
    EXHAUST ELBOW MOUNTED IGNITION MODULE
    SPACER
    EXHAUST ELBOW MOUNTED IGNITION MODULE
  • 7
    821125T02 IGNITION MODULE
    DISTRIBUTOR MOUNTED IGNITION MODULE
    IGNITION MODULE
    DISTRIBUTOR MOUNTED IGNITION MODULE
  • 8
    10-12110 SCREW
    DISTRIBUTOR MOUNTED IGNITION MODULE
    SCREW
    DISTRIBUTOR MOUNTED IGNITION MODULE
  • 9
    84-805363A2 HARNESS
    DISTRIBUTOR MOUNTED IGNITION MODULE
    HARNESS
    DISTRIBUTOR MOUNTED IGNITION MODULE
  • 10
    806490T WATER TEMPERATURE SENDER (3/8-18)
    WATER TEMPERATURE SENDER (3/8-18)
  • 10
    49734 WATER TEMPERATURE SENDER
    (DUAL STATION)
    WATER TEMPERATURE SENDER
    (DUAL STATION)
  • 11
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 11
    37293T OIL PRESSURE SENDER
    (DUAL STATION)
    OIL PRESSURE SENDER
    (DUAL STATION)
  • 12
    13-26996 LOCKWASHER
    LOCKWASHER
  • 13
    11-68219 NUT
    NUT
  • 14
    22-46932 ELBOW
    ELBOW
  • 15
    22-885153 NIPPLE
    NIPPLE
  • 16
    41170T MOUNTING BRACKET
    MOUNTING BRACKET
  • 17
    10-37612 SCREW
    SCREW
  • 18
    13-35048 LOCKWASHER
    LOCKWASHER
  • 19
    54-78945 CLAMP
    CLAMP
  • 20
    10-26486 SCREW
    SCREW
  • 21
    23-15895 SPACER (1-1/2")
    SPACER (1-1/2")
  • 21
    23-91034 SPACER (1/2")
    SPACER (1/2")
  • 22
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 23
    13-26996 LOCKWASHER
    LOCKWASHER
  • 24
    11-68219 NUT
    NUT
  • 25
    10-45862 SCREW (7/8")
    SCREW (7/8")
  • 26
    10-71405 SCREW
    SCREW
  • 27
    12-56681 WASHER
    WASHER
  • 28
    11-61356 NUT
    NUT
  • 29
    85-96819T INSULATOR
    INSULATOR
  • 30
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 31
    10-96138 SCREW (5/8")
    SCREW (5/8")
  • 32
    11-20088 NUT
    NUT
  • 33
    13-26992 LOCKWASHER
    LOCKWASHER
  • 34
    11-26419 NUT (8-32)
    NUT (8-32)
  • 35
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
