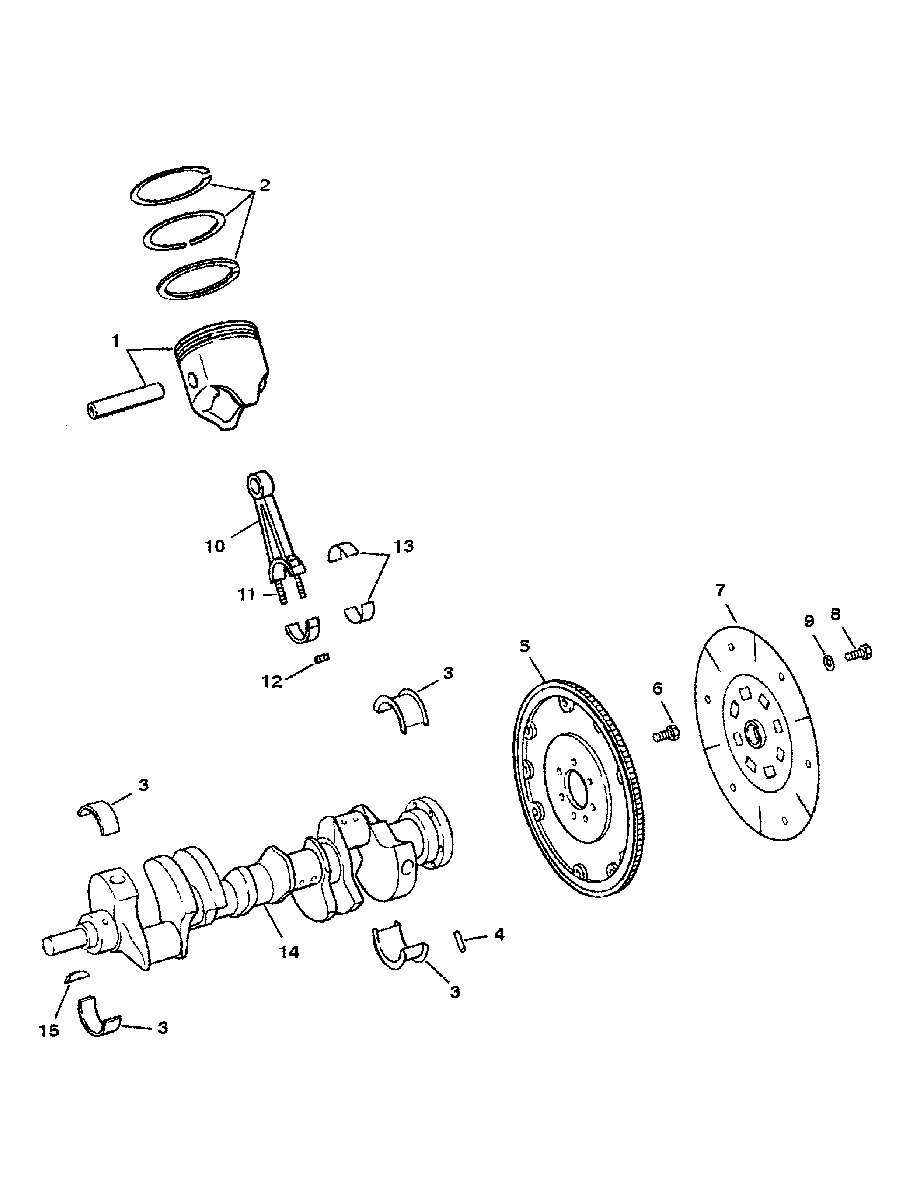

CRANKSHAFT, PISTONS AND CONN. RODS для Mercruiser - 350 MAG (SKI) GM 350 V-8 1991-1996 0D505450 THRU 0K040399

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON/PISTON PIN
    (STANDARD)
    PISTON/PISTON PIN
    (STANDARD)
  • 1
    735-850098 PISTON/PISTON PIN
    (.030 O.S.)
    PISTON/PISTON PIN
    (.030 O.S.)
  • 2
    39-17464 PISTON RING
    (STANDARD)
    PISTON RING
    (STANDARD)
  • 2
    39-17465 PISTON RING
    (.030 O.S.)
    PISTON RING
    (.030 O.S.)
  • 3
    23-818465 BEARING SET
    (STANDARD)
    BEARING SET
    (STANDARD)
  • 3
    23-818466 BEARING SET
    (.001 U.S.)
    BEARING SET
    (.001 U.S.)
  • 3
    23-818467 BEARING SET
    (.010 U.S.)
    BEARING SET
    (.010 U.S.)
  • 3
    23-818468 BEARING SET
    (.020 U.S.)
    BEARING SET
    (.020 U.S.)
  • 4
    17-43504 DOWEL PIN (1/4" DIA.)
    DOWEL PIN (1/4" DIA.)
  • 5
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 6
    10-845757 SCREW
    SCREW
  • 7
    860125T DRIVE PLATE
    DRIVE PLATE
  • 8
    10-35091 SCREW
    SCREW
  • 9
    13-35048 LOCKWASHER
    LOCKWASHER
  • 10
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 11
    10-85802 BOLT
    BOLT
  • 12
    11-37493 NUT
    NUT
  • 13
    23-85701 BEARING UNIT
    (PAIR - STANDARD)
    BEARING UNIT
    (PAIR - STANDARD)
  • 13
    23-85702 BEARING UNIT
    (PAIR - .001 U.S.)
    BEARING UNIT
    (PAIR - .001 U.S.)
  • 13
    23-85703 BEARING UNIT
    (PAIR - .002 U.S.)
    BEARING UNIT
    (PAIR - .002 U.S.)
  • 13
    23-85704 BEARING UNIT
    (PAIR - .010 U.S.)
    BEARING UNIT
    (PAIR - .010 U.S.)
  • 13
    23-85705 BEARING UNIT
    (PAIR - .020 U.S.)
    BEARING UNIT
    (PAIR - .020 U.S.)
  • 14
    429-9521T CRANKSHAFT
    CRANKSHAFT
  • 15
    28-34466 KEY
    KEY
