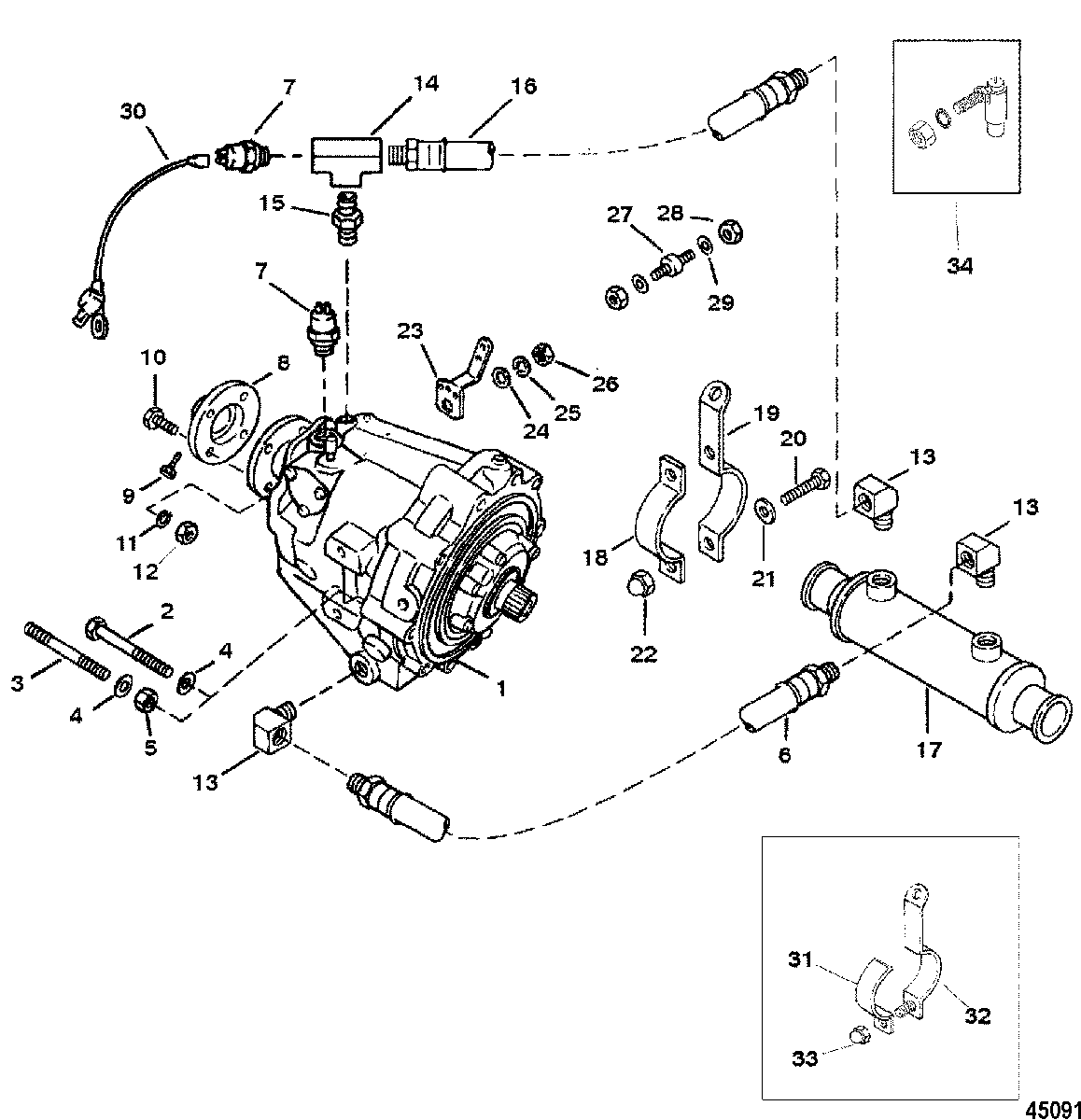

TRANSMISSION AND RELATED PARTS для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION ASSEMBLY (DIRECT DRIVE)
    TRANSMISSION ASSEMBLY (DIRECT DRIVE)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    16-57921 STUD, (.437-14/.437-20 x 4.00)
    STUD, (.437-14/.437-20 x 4.00)
  • 4
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 5
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 6
    32-4751613 HOSE, (49.00 Inches)
    HOSE, (49.00 Inches)
  • 7
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 8
    87917A1 FLANGE ASSEMBLY, (4.00 x 1.00)
    FLANGE ASSEMBLY, (4.00 x 1.00)
  • 9
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 11
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 12
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 13
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 14
    22-806282 TEE
    TEE
  • 15
    22-806286 CONNECTOR
    CONNECTOR
  • 16
    32-81269939 HOSE, (39.00 Inches Bulk)
    HOSE, (39.00 Inches Bulk)
  • 17
    63832A1 COOLER
    COOLER
  • 18
    56328A1 BRACKET
    BRACKET
  • 19
    63820T BRACKET
    BRACKET
  • 20
    10-60300 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 21
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
  • 22
    11-30506 NUT, (.250-28)
    NUT, (.250-28)
  • 23
    43325 LEVER
    LEVER
  • 24
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 25
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 26
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 27
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 28
    12-20533 WASHER
    WASHER
  • 29
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 30
    84-86322A8 CABLE ASSEMBLY, (8.00 Inches) Black
    CABLE ASSEMBLY, (8.00 Inches) Black
  • 31
    807445T CLAMP
    CLAMP
  • 32
    807402T BRACKET
    BRACKET
  • 33
    11-8267088 NUT, (.250-20)
    NUT, (.250-20)
  • 34
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
