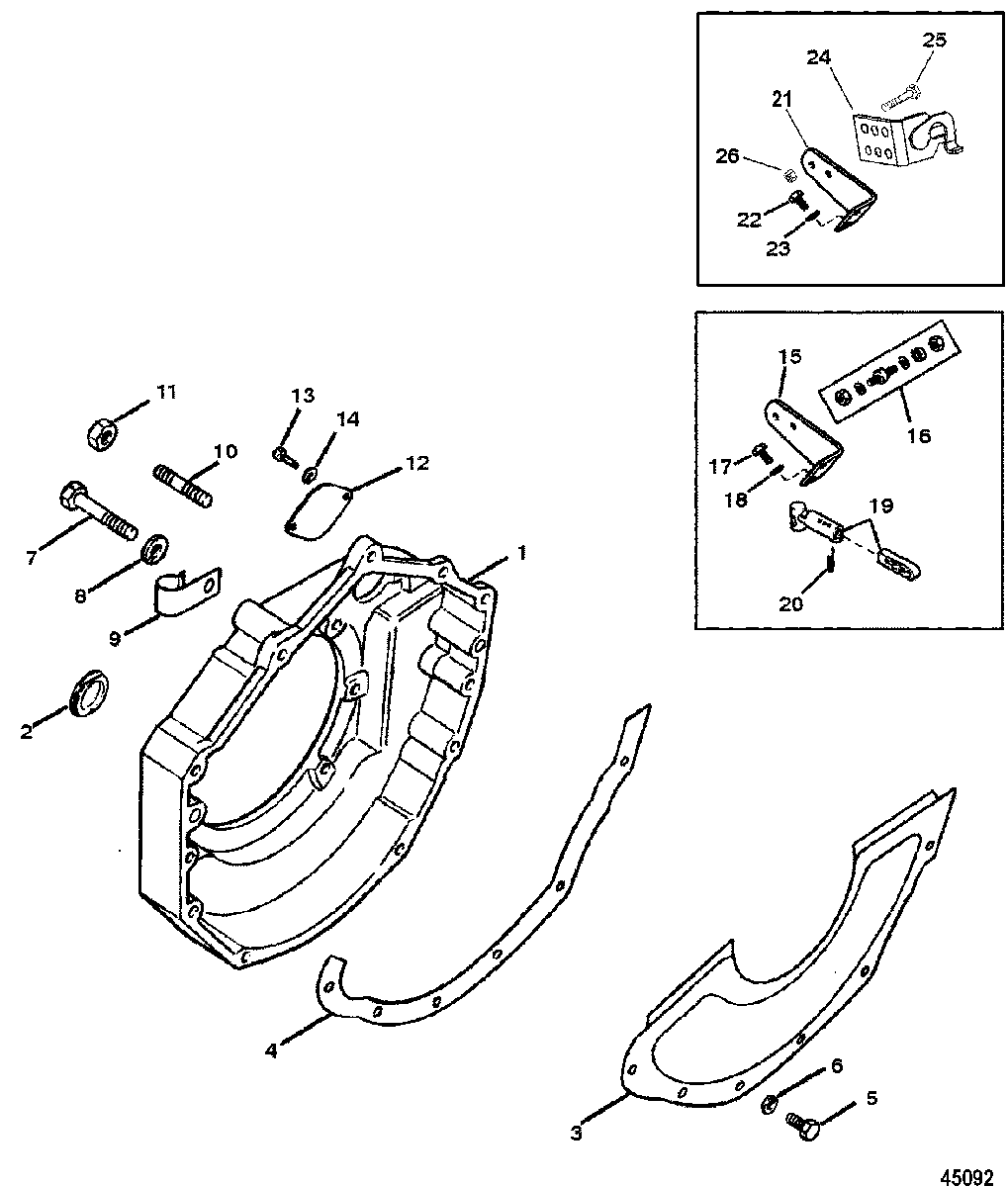

FLYWHEEL HOUSING для Mercruiser - 350 MAG. EFI SKI (TBI) GM 350 V-8 1994-1996 0F215561 THRU 0F820706

  • №
    Артикул
    Название
  • 1
    814309A1 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    19-12304 PLUG
    PLUG
  • 3
    818718A3 COVER KIT
    COVER KIT
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-98253 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • 6
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 7
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 7
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 7
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 8
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 9
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 10
    16-861316 STUD, (.375-16 x 2.750) Special
    STUD, (.375-16 x 2.750) Special
  • 11
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 12
    939201 PLATE
    PLATE
  • 13
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 14
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 15
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 16
    16-97477A3 STUD KIT
    STUD KIT
  • 17
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 18
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 19
    64-892790A01 ADAPTOR KIT
    ADAPTOR KIT
  • 20
    64-892790A01 CLIP
    CLIP
  • 21
    807719T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 22
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 24
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 25
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 26
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
