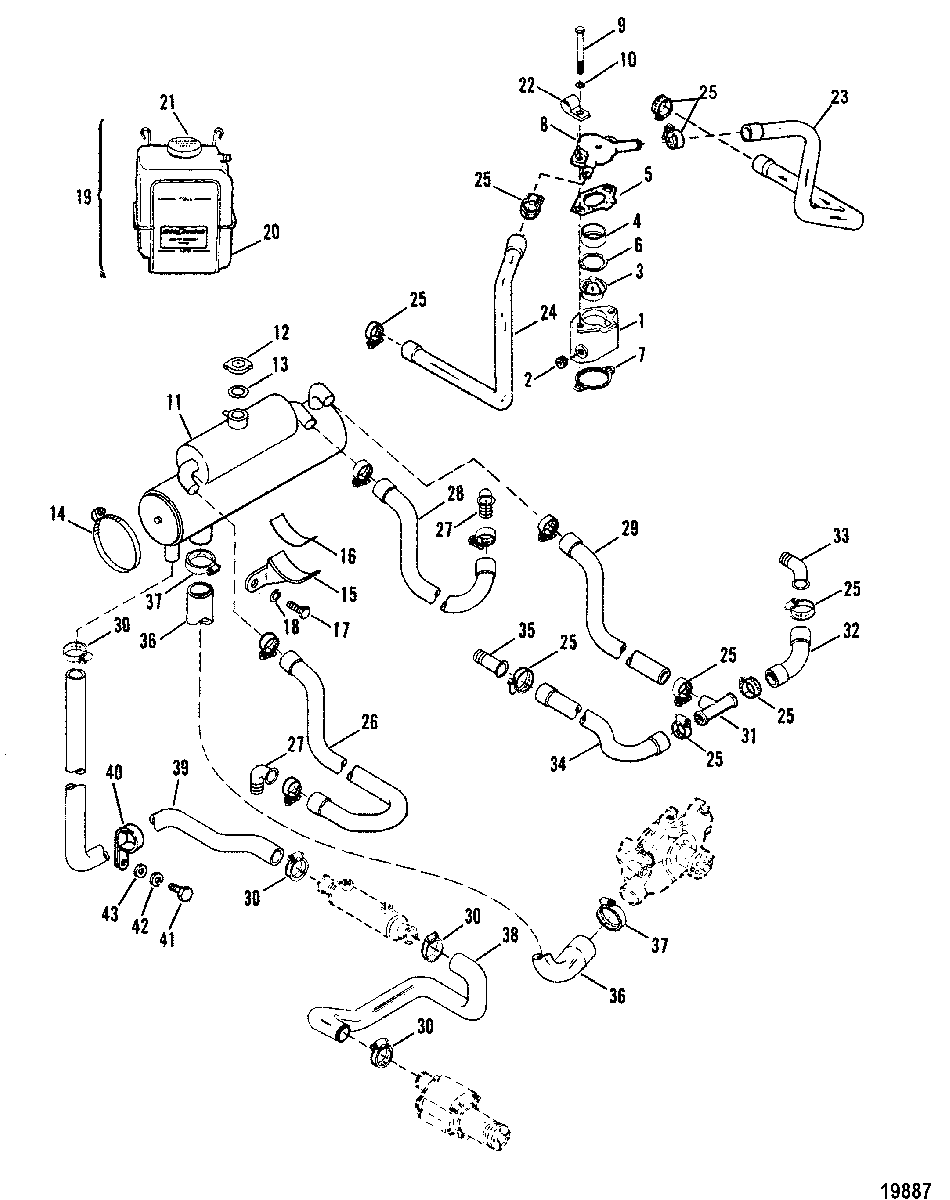

Closed Cooling System для Mercruiser - 260 MIE GM 350 V-8 1987 0B522506 THRU 0B788196
-
№АртикулНазвание
-
155131A5 HOUSING, ThermostatHOUSING, Thermostat
-
222-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
38M0089715 THERMOSTAT, (140 Degrees) (143)THERMOSTAT, (140 Degrees) (143)
-
423-47508T SLEEVE, THERMOSTAT HOUSINGSLEEVE, THERMOSTAT HOUSING
-
527-488181 GASKET, THERMOSTAT HOUSING-UPPERGASKET, THERMOSTAT HOUSING-UPPER
-
627-47510 GASKET, THERMOSTAT HOUSING-MIDDLEGASKET, THERMOSTAT HOUSING-MIDDLE
-
727-530451 GASKET, THERMOSTAT HOUSING-LOWERGASKET, THERMOSTAT HOUSING-LOWER
-
847441A1 COVER, THERMOSTAT HOUSINGCOVER, THERMOSTAT HOUSING
-
910-48115 SCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLDSCREW, (.375-16 x 3.50), THERMOSTAT HOUSING TO INTAKE MANIFOLD
-
1013-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREWLOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
-
1178094A3 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
-22-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
-27-65128 GASKET, End CoverGASKET, End Cover
-
-66221 COVERCOVER
-
-10-66223 SCREW, End CoverSCREW, End Cover
-
-12-75451 WASHERWASHER
-
1236-55143Q CAP, Pressure, PRESSURE-HEAT EXCHANGERCAP, Pressure, PRESSURE-HEAT EXCHANGER
-
1327-71614 GASKET, PRESSURE CAPGASKET, PRESSURE CAP
-
1454-815504372 CLAMP, HEAT EXCHANGER TO MOUNTING BRACKETCLAMP, HEAT EXCHANGER TO MOUNTING BRACKET
-
1579437A2 BRACKET, MTG. (PORT)BRACKET, MTG. (PORT)
-
1578092A1 BRACKET, MTG. (PORT-V-DRIVE)BRACKET, MTG. (PORT-V-DRIVE)
-
1579438A3 BRACKET, MTG. (STBD)BRACKET, MTG. (STBD)
-
1578093A3 BRACKET, MTG.(STBD)(V-DRIVE)BRACKET, MTG.(STBD)(V-DRIVE)
-
16772233 PAD, MOUNTING BRACKETPAD, MOUNTING BRACKET
-
1710-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINESCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
-
1813-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREWLOCKWASHER, (.375), MOUNTING BRACKET SCREW
-
1971587A10 COOLANT RECOVERY KIT
(Sold as a complete kit only)COOLANT RECOVERY KIT
(Sold as a complete kit only) -
2071587A11 BOTTLE, PLASTICBOTTLE, PLASTIC
-
2172058 CAP, PLASTIC BOTTLECAP, PLASTIC BOTTLE
-
2254-97862 CLAMP, THERMOSTAT HOUSING SCREWCLAMP, THERMOSTAT HOUSING SCREW
-
2332-160211 HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)HOSE, THERMOSTAT COVER TO MANIFOLD (PORT)
-
2432-871171 HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)HOSE, THERMOSTAT COVER TO MANIFOLD (STARBOARD)
-
2554-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
2632-19403 HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)
-
2632-919541 HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)(V-DRIVE)HOSE, RESERVOIR TO EXH. MANIFOLD (STARBOARD)(V-DRIVE)
-
2722-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD-TOP (90)ELBOW, (90 Degrees), EXHAUST MANIFOLD-TOP (90)
-
2722-865159 FITTING, (45 Degrees), EXHAUST MANIFOLD-TOP (45)(V-DRIVE)FITTING, (45 Degrees), EXHAUST MANIFOLD-TOP (45)(V-DRIVE)
-
2832-19404 HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)HOSE, RESERVOIR TO EXHAUST MANIFOLD (STARBOARD)
-
2832-97558 HOSE, RESERVOIR TO EXH. MANIFOLD (PORT)(V-DRIVE)HOSE, RESERVOIR TO EXH. MANIFOLD (PORT)(V-DRIVE)
-
2932-8M0062665 HOSE, TEE TO RESERVOIRHOSE, TEE TO RESERVOIR
-
2932-807405 HOSE, TEE TO RESERVOIR (V-DRIVE)HOSE, TEE TO RESERVOIR (V-DRIVE)
-
3054-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3122-55133 TEE, FITTINGTEE, FITTING
-
3232-93634 HOSE, TEE TO EXHAUST ELBOW (PORT)HOSE, TEE TO EXHAUST ELBOW (PORT)
-
3232-48132 HOSE, TEE TO EXHAUST ELBOW (PORT)(V-DRIVE)HOSE, TEE TO EXHAUST ELBOW (PORT)(V-DRIVE)
-
3322-865159 FITTING, (45 Degrees), EXHAUST ELBOW-PORT (45)FITTING, (45 Degrees), EXHAUST ELBOW-PORT (45)
-
3432-8M0062614 HOSE, TEE TO EXHAUST ELBOW (STARBOARD)HOSE, TEE TO EXHAUST ELBOW (STARBOARD)
-
3432-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)(V-DRIVE)HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOW (STARBOARD)(V-DRIVE)
-
3522-866725 FITTING, Straight, EXHAUST ELBOW-STARBOARD (STRAIGHT)FITTING, Straight, EXHAUST ELBOW-STARBOARD (STRAIGHT)
-
3632-97525 HOSE, RESERVOIR TO WATER PUMPHOSE, RESERVOIR TO WATER PUMP
-
3754-815504228 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
3832-92833 HOSE, WATER PUMP TO OIL COOLERHOSE, WATER PUMP TO OIL COOLER
-
3932-92837 HOSE, RESERVOIR TO OIL COOLERHOSE, RESERVOIR TO OIL COOLER
-
4054-47715 CLIP, HOSECLIP, HOSE
-
4110-47277 SCREW, (.312-24 x .750), HOSE CLIPSCREW, (.312-24 x .750), HOSE CLIP
-
4213-39107 LOCKWASHER, (.312-24), CLIP SCREWLOCKWASHER, (.312-24), CLIP SCREW
-
4312-26825 WASHER, (.328 x .750 x .06), CLIP SCREWWASHER, (.328 x .750 x .06), CLIP SCREW
-
-27-75611A88 GASKET SET, EngineGASKET SET, Engine
