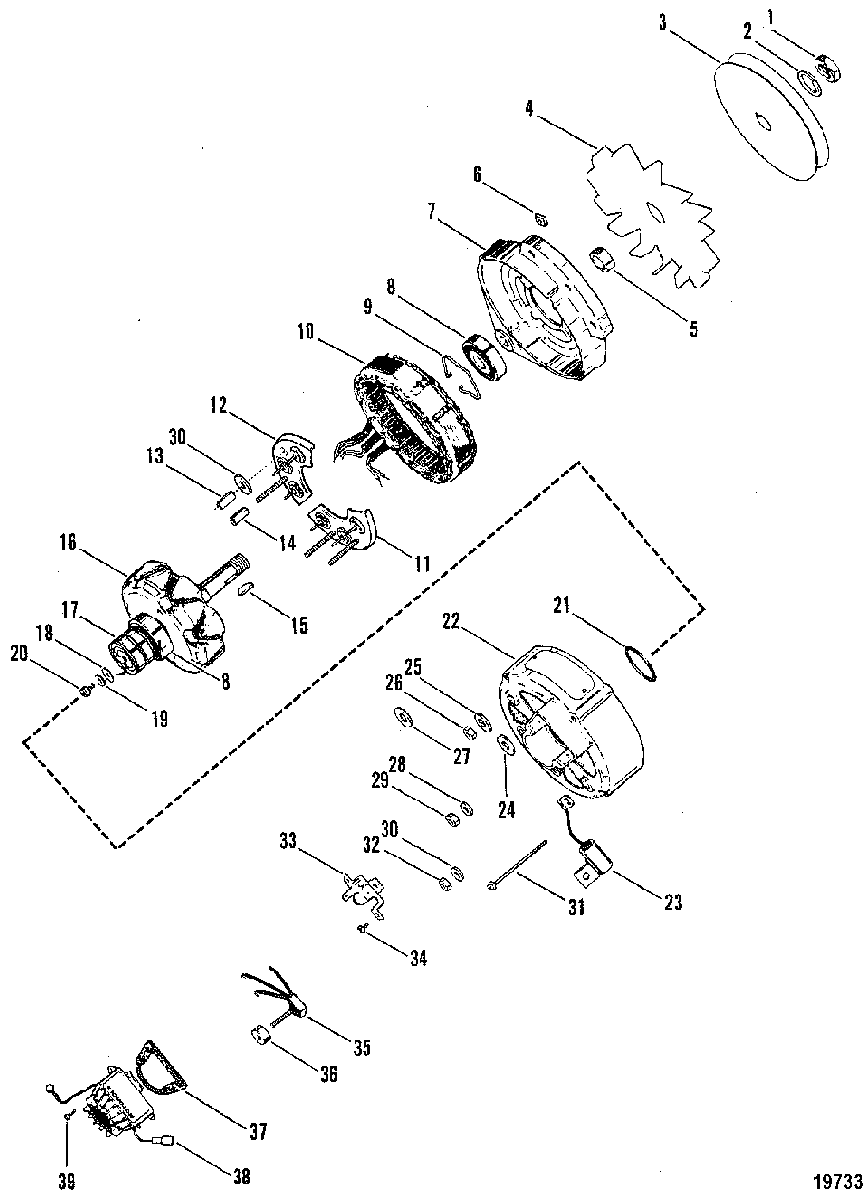

Alternator (55 AMPS)(Motorola #8MR2039K) для Mercruiser - 260 MIE GM 350 V-8 1987 0B522506 THRU 0B788196
-
№АртикулНазвание
-
-817119A4 ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP)ALTERNATOR ASSEMBLY, (55 Ampere) (55 AMP)
-
1390-7027 NUT, FAN AND PULLEY TO ROTORNUT, FAN AND PULLEY TO ROTOR
-
2390-7033 LOCKWASHER, FAN AND PULLEY NUTLOCKWASHER, FAN AND PULLEY NUT
-
3390-8637 PULLEY, DRIVE END FRAMEPULLEY, DRIVE END FRAME
-
4390-7004 FAN, DRIVE END FRAMEFAN, DRIVE END FRAME
-
5813969 SPACER, FAN TO DRIVE END FRAMESPACER, FAN TO DRIVE END FRAME
-
6390-7028 NUT, THRU BOLT ATTACHINGNUT, THRU BOLT ATTACHING
-
7390-7000 COVER ASSEMBLY, FRONTCOVER ASSEMBLY, FRONT
-
8390-7005 BEARING, Ball, DRIVE ENDBEARING, Ball, DRIVE END
-
9390-7006 RING, DRIVE END BALL BEARINGRING, DRIVE END BALL BEARING
-
10390-8636 STATOR ASSEMBLYSTATOR ASSEMBLY
-
11390-7009 DIODE, NEGATIVEDIODE, NEGATIVE
-
12390-7010 HEAT SINK, POSITIVEHEAT SINK, POSITIVE
-
13390-7020 SLEEVE, INSULATORSLEEVE, INSULATOR
-
14390-7018 SLEEVE, INSULATORSLEEVE, INSULATOR
-
15390-7034 KEY, ROTORKEY, ROTOR
-
16390-8635 ROTOR ASSEMBLYROTOR ASSEMBLY
-
17390-7014 SLIP RINGSLIP RING
-
18390-7206 WASHER, ROTOR SCREWWASHER, ROTOR SCREW
-
19390-7207 LOCKWASHER, ROTOR SCREWLOCKWASHER, ROTOR SCREW
-
20390-7029 SCREW, (5/8 In.), ROTOR SHAFT (5/8")SCREW, (5/8 In.), ROTOR SHAFT (5/8")
-
21390-7007 RETAINER, ROTOR SHAFT BEARINGRETAINER, ROTOR SHAFT BEARING
-
22390-7003 HOUSING, REARHOUSING, REAR
-
23813972 CONDENSERCONDENSER
-
24390-7023 INSULATOR, REGULATOR TERMINAL STUDINSULATOR, REGULATOR TERMINAL STUD
-
25390-7024 WASHER, CONDENSER TERMINAL STUDWASHER, CONDENSER TERMINAL STUD
-
26390-7025 NUT, TERMINAL STUDNUT, TERMINAL STUD
-
27390-7208 WASHER, TERMINAL STUDWASHER, TERMINAL STUD
-
28390-7032 LOCKWASHER, TERMINAL STUDLOCKWASHER, TERMINAL STUD
-
29390-7026 NUT, TERMINAL ATTACHINGNUT, TERMINAL ATTACHING
-
30390-7022 WASHER, CONDENSER TERMINAL STUDWASHER, CONDENSER TERMINAL STUD
-
31390-8638 THRU BOLTTHRU BOLT
-
32390-7021 NUT, CONDENSER TERMINAL ATTACHINGNUT, CONDENSER TERMINAL ATTACHING
-
33390-7011 HOLDER ASSEMBLY, BrushHOLDER ASSEMBLY, Brush
-
34390-7030 SCREW, (1/2 In.), BRUSH HOLDER (1/2")SCREW, (1/2 In.), BRUSH HOLDER (1/2")
-
35390-7008 DIODE TRIODIODE TRIO
-
36390-7019 SPACER, DIODE TRIOSPACER, DIODE TRIO
-
37390-7013 GASKET, VOLTAGE REGULATORGASKET, VOLTAGE REGULATOR
-
38808534T REGULATOR, VoltageREGULATOR, Voltage
-
39390-7015 SCREW, VOLTAGE REGULATOR ATTACHINGSCREW, VOLTAGE REGULATOR ATTACHING
