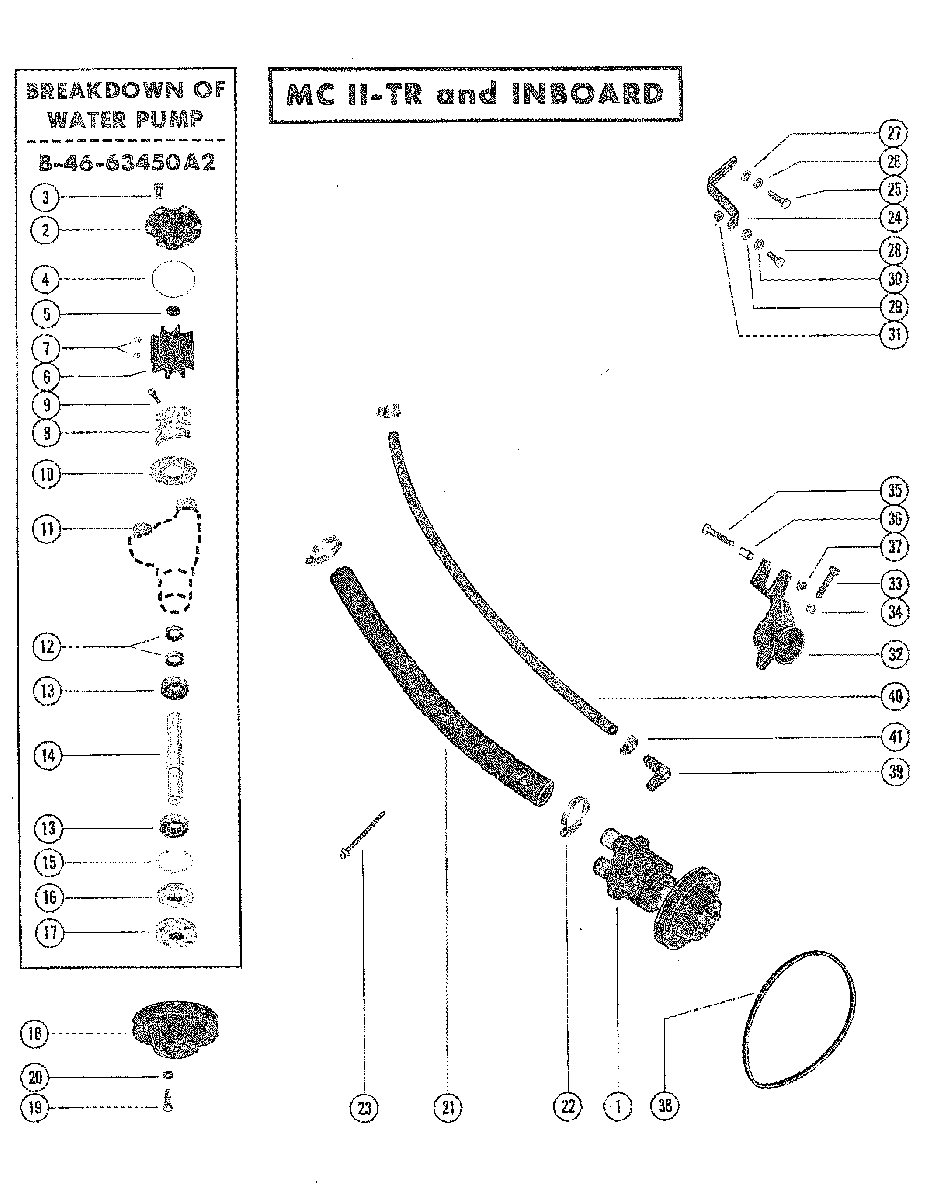

WATER PUMP ASSEMBLY, COMPLETE MC 11-TR AND INBOARD для Mercruiser - 225 MIE FORD 302 V-8 1973-1974 3385721 THRU 4176999
-
№АртикулНазвание
-
146-72774A32 WATER PUMP ASSEMBLY, COMPLETEWATER PUMP ASSEMBLY, COMPLETE
-
259155 COVER, WATER PUMPCOVER, WATER PUMP
-
310-28635 SCREW, WATER PUMP COVER ATTACHING (5/8")SCREW, WATER PUMP COVER ATTACHING (5/8")
-
425-53421 "O" RING, WATER PUMP COVER"O" RING, WATER PUMP COVER
-
519-59504 PLUG, IMPELLERPLUG, IMPELLER
-
647-59362T1 IMPELLER ASSEMBLYIMPELLER ASSEMBLY
-
728-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
859363A1 CAM SEGMENT ASSEMBLY, WATER PUMPCAM SEGMENT ASSEMBLY, WATER PUMP
-
910-60777 SCREW, CAM SEGMENT ATTACHING (1/2")SCREW, CAM SEGMENT ATTACHING (1/2")
-
1059503 WEAR PLATEWEAR PLATE
-
1123-47511 SLEEVE, WATER PUMP COVERSLEEVE, WATER PUMP COVER
-
1226-90562 OIL SEAL, WATER PUMP SHAFTOIL SEAL, WATER PUMP SHAFT
-
1330-72961 BALL BEARING, WATER PUMP SHAFTBALL BEARING, WATER PUMP SHAFT
-
1459501A1 SHAFT, WATER PUMPSHAFT, WATER PUMP
-
1553-23720 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
1626-72785 OIL SEAL, WATER PUMP SHAFTOIL SEAL, WATER PUMP SHAFT
-
1747530 HUB, WATER PUMP PULLEYHUB, WATER PUMP PULLEY
-
1859762T PULLEY, WATER PUMPPULLEY, WATER PUMP
-
1910-47277 SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
-
2013-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
2132-8M0062665 HOSE, PUMP TO OIL COOLER INBOARDHOSE, PUMP TO OIL COOLER INBOARD
-
2254-815504220 CLAMP, WATER PUMP HOSE INBOARDCLAMP, WATER PUMP HOSE INBOARD
-
2361990 STA STRAP, HOSE ATTACHINGSTA STRAP, HOSE ATTACHING
-
2461860 BRACKE, WATER PUMP ADJUSTING (MC 11-TR0)BRACKE, WATER PUMP ADJUSTING (MC 11-TR0)
-
2454478 BRACE, WATER PUMP ADJUSTING INBOARDBRACE, WATER PUMP ADJUSTING INBOARD
-
2510-35353 SCREW, ADJUSTING BRACE TO OIL PAN (1") INBOARDSCREW, ADJUSTING BRACE TO OIL PAN (1") INBOARD
-
2613-35048 LOCKWASHER, ADJUSTING BRACE SCREWLOCKWASHER, ADJUSTING BRACE SCREW
-
2712-34714 WASHER, ADJUSTING BRACE SCREW (INBOARD)WASHER, ADJUSTING BRACE SCREW (INBOARD)
-
2810-37612 SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4") - MC 11-TRSCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4") - MC 11-TR
-
2810-37612 SCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4") - INBOARDSCREW, ADJUSTING BRACE TO WATER PUMP (1 1/4") - INBOARD
-
2912-34714 WASHER, ADJUSTING BRACE SCREW (MC 11-TR)WASHER, ADJUSTING BRACE SCREW (MC 11-TR)
-
2912-20553 WASHER, ADJUSTING BRACE SCREW (INBOARD)WASHER, ADJUSTING BRACE SCREW (INBOARD)
-
3013-35048 LOCKWASHER, ADJUSTING BRACE SCREWLOCKWASHER, ADJUSTING BRACE SCREW
-
3111-32219 NUT, ADJUSTING BRACE SCREW (MC 11-TR)NUT, ADJUSTING BRACE SCREW (MC 11-TR)
-
3111-32219 NUT, ADJUSTING BRACE SCREW (INBOARD)NUT, ADJUSTING BRACE SCREW (INBOARD)
-
3249581 BRACKET, WATER PUMPBRACKET, WATER PUMP
-
3310-34354 SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")SCREW, WATER PUMP BRACKET CLAMPING (1 1/2")
-
3413-35048 LOCKWASHER, WATER PUMP BRACKET CLAMPING SCREWLOCKWASHER, WATER PUMP BRACKET CLAMPING SCREW
-
3510-52409 SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET (3 1/4")SCREW, WATER PUMP BRACKET TO ALTERNATOR BRACKET (3 1/4")
-
3623-33186 BUSHING, WATER PUMP BRACKET SCREWBUSHING, WATER PUMP BRACKET SCREW
-
3711-23161 NUT, WATER PUMP BRACKET SCREWNUT, WATER PUMP BRACKET SCREW
-
3857-60327Q BELT, WATER PUMPBELT, WATER PUMP
-
3922-328022 PLUG, WATER PUMP BODY (INBOARD) - NOT AS SHOWNPLUG, WATER PUMP BODY (INBOARD) - NOT AS SHOWN
-
3922-629101 FITTING, WATER PUMP BODY MC 11-TRFITTING, WATER PUMP BODY MC 11-TR
-
4032-629872 HOSE, PUMP TO TRANSMISSION COOLER MC 11-TRHOSE, PUMP TO TRANSMISSION COOLER MC 11-TR
-
4154-815504310 CLAMP, HOSE ATTACHING MC 11-TRCLAMP, HOSE ATTACHING MC 11-TR
