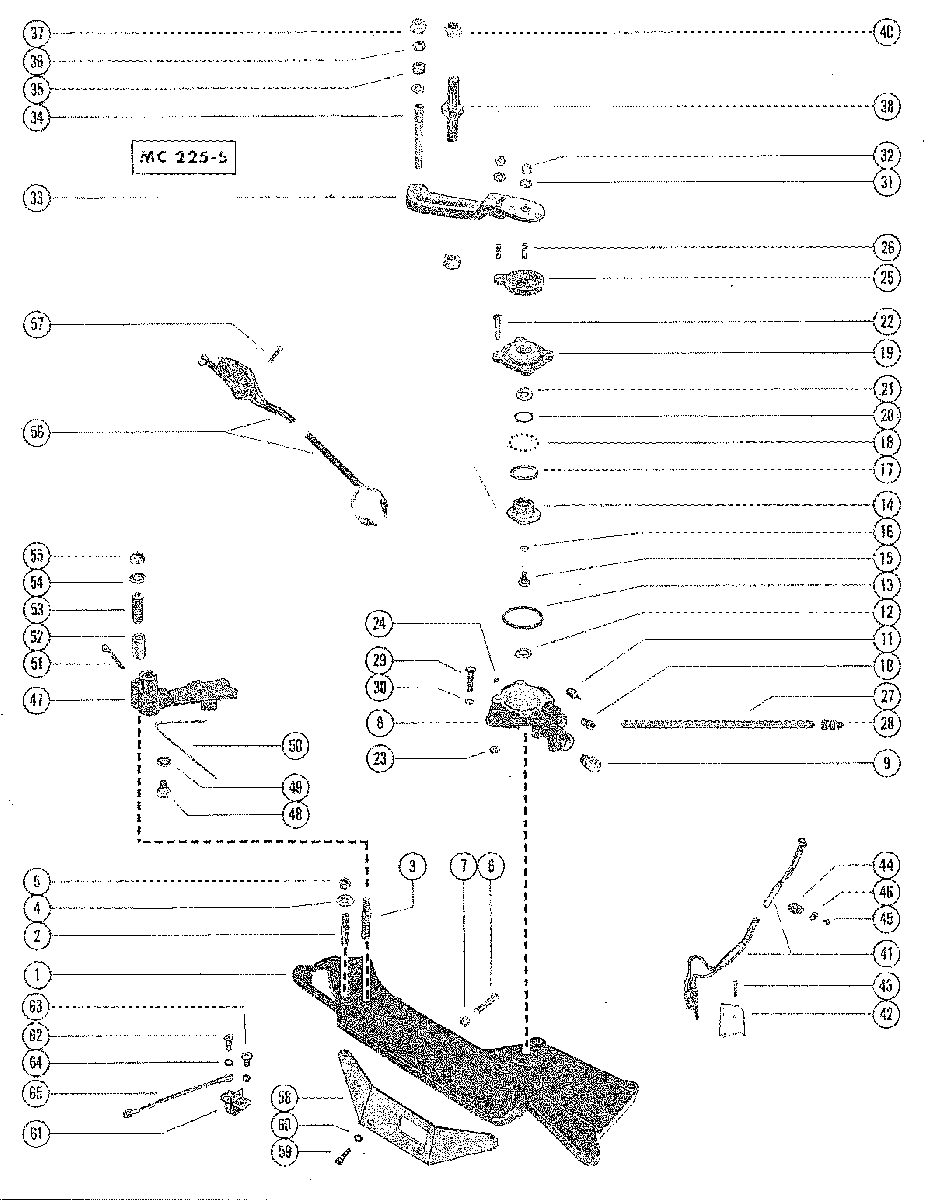

SHIFT BRACKET, REVERSE LOCK VALVE AND ARM ASSEMBLY -MC 225-S для Mercruiser - 225 MIE FORD 302 V-8 1973-1974 3385721 THRU 4176999

  • №
    Артикул
    Название
  • 1
    66057A3 SHIFT BRACKET ASSEMBLY
    SHIFT BRACKET ASSEMBLY
  • 2
    16-79661 STUD, SHIFT CABLE TO BRACKET (1 3/4")
    STUD, SHIFT CABLE TO BRACKET (1 3/4")
  • 3
    16-66373 STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
    STUD, SWITCH ACTUATING ARM TO SHIFT BRACKET (2 5/16")
  • 4
    12-39143 WASHER, SHIFT CABLE TO LEVER STUD
    WASHER, SHIFT CABLE TO LEVER STUD
  • 5
    11-8267089 NUT, SHIFT BRACKET STUD
    NUT, SHIFT BRACKET STUD
  • 6
    10-47651 SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")
    SCREW, SHIFT BRACKET TO FLYWHEEL HOUSING (1 1/2")
  • 7
    13-32993 LOCKWASHER, SHIFT BRACKET ATTACHING SCREW
    LOCKWASHER, SHIFT BRACKET ATTACHING SCREW
  • 8
    76812T4 REVERSE LOCK VALVE ASSEMBLY
    REVERSE LOCK VALVE ASSEMBLY
  • 9
    22-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
    ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
  • 10
    22-48167 CONNECTOR, ELBOW
    CONNECTOR, ELBOW
  • 11
    45709 FOLLOWER, CAM
    FOLLOWER, CAM
  • 12
    13-25906 WASHER, WAVE - REVERSE LOCK VALVE
    WASHER, WAVE - REVERSE LOCK VALVE
  • 13
    25-457101 "O" RING, REVERSE LOCK VALVE
    "O" RING, REVERSE LOCK VALVE
  • 14
    45526 CAM, REVERSE LOCK VALVE
    CAM, REVERSE LOCK VALVE
  • 15
    10-46736 SCREW, CAM TO CAM LEVER (1/2")
    SCREW, CAM TO CAM LEVER (1/2")
  • 16
    13-26996 LOCKWASHER, CAM SCREW
    LOCKWASHER, CAM SCREW
  • 17
    12-45713 WASHER, RETAINING - BALL TO VALVE COVER
    WASHER, RETAINING - BALL TO VALVE COVER
  • 18
    30-45712 BALL, VALVE COVER
    BALL, VALVE COVER
  • 19
    45528A2 COVER ASSEMBLY, REVERSE LOCK VALVE
    COVER ASSEMBLY, REVERSE LOCK VALVE
  • 20
    25-45711 "O" RING, VALVE COVER
    "O" RING, VALVE COVER
  • 21
    12-59570 WASHER, VALVE COVER
    WASHER, VALVE COVER
  • 22
    10-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")
    SCREW, COVER TO REVERSE LOCK VALVE (15/16")
  • 23
    11-20110 NUT, COVER SCREW
    NUT, COVER SCREW
  • 24
    22-390721 PLUG, PIPE - REVERSE LOCK VALVE
    PLUG, PIPE - REVERSE LOCK VALVE
  • 25
    46732A1 LEVER ASSEMBLY, CAM
    LEVER ASSEMBLY, CAM
  • 26
    16-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
    STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
  • 27
    32-52951A1 TUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDER
    TUBING ASSEMBLY, REVERSE LOCK VALVE TO TRIM SENDER
  • 28
    22-49718 NUT, TUBING ATTACHING
    NUT, TUBING ATTACHING
  • 29
    10-23703 SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")
    SCREW, REVERSE LOCK VALVE TO SHIFT SUPPORT BRACKET (7/8")
  • 30
    13-39107 LOCKWASHER, REVERSE LOCK VALVE SCREW
    LOCKWASHER, REVERSE LOCK VALVE SCREW
  • 31
    12-21273 WASHER, CAM LEVER STUD
    WASHER, CAM LEVER STUD
  • 32
    11-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
    NUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
  • 33
    66397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
  • 34
    16-63081 STUD, SHIFT CABLE TO LEVER
    STUD, SHIFT CABLE TO LEVER
  • 35
    23-31866 SPACER, SHIFT LEVER STUD
    SPACER, SHIFT LEVER STUD
  • 36
    12-39143 WASHER, SHIFT LEVER STUD
    WASHER, SHIFT LEVER STUD
  • 37
    11-8267089 NUT, SHIFT CABLE TO LEVER STUD
    NUT, SHIFT CABLE TO LEVER STUD
  • 38
    16-63335 STUD, SHIFT CABLE TO SHIFT LEVER
    STUD, SHIFT CABLE TO SHIFT LEVER
  • 40
    11-63341 TEE NUT, SHIFT CABLE STUD
    TEE NUT, SHIFT CABLE STUD
  • 41
    60556A3 SWITCH ASSEMBLY, REVERSE INTERLOCK
    SWITCH ASSEMBLY, REVERSE INTERLOCK
  • 42
    45717 SHIELD, REVERSE INTERLOCK SWITCH
    SHIELD, REVERSE INTERLOCK SWITCH
  • 43
    10-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
    SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
  • 44
    54-648552 "J" CLAMP, REVERSE INTEROCK SWITCH LEAD
    "J" CLAMP, REVERSE INTEROCK SWITCH LEAD
  • 45
    10-21643 SCREW, REVERSE INTERLOCK SWITH LEAD CLIP ATTACHING (1/2")
    SCREW, REVERSE INTERLOCK SWITH LEAD CLIP ATTACHING (1/2")
  • 46
    8M0084613 "D" WASHER, CLIP ATTACHING SCREW
    "D" WASHER, CLIP ATTACHING SCREW
  • 47
    13051A4 ARM ASSEMBLY, SWITCH ACTUATING
    ARM ASSEMBLY, SWITCH ACTUATING
  • 48
    10-98257 SCREW, TENSION SPRING TO ARM
    SCREW, TENSION SPRING TO ARM
  • 49
    12-26825 WASHER, TENSION SPRING SCREW
    WASHER, TENSION SPRING SCREW
  • 50
    24-862850 SPRING, TENSION - SWITCH ACTUATING ARM
    SPRING, TENSION - SWITCH ACTUATING ARM
  • 51
    18-328571 COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
    COTTER PIN, SHIFT ACTUATING CABLE TO ACTUATING ARM
  • 52
    23-45600 SLEEVE, SWITCH ACTUATING ARM STUD
    SLEEVE, SWITCH ACTUATING ARM STUD
  • 53
    23-37981 SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
    SPACER, SWITCH ACTUATING ARM TO TRANSOM PLATE
  • 54
    12-26825 WASHER, SWITCH ACTUATING ARM STUD
    WASHER, SWITCH ACTUATING ARM STUD
  • 55
    11-82670911 NUT, SWITCH ACTUATING ARM STUD
    NUT, SWITCH ACTUATING ARM STUD
  • 56
    39670A28 SWITCH ASSEMBLY, CUT-OUT - TRANSOM PLATE
    SWITCH ASSEMBLY, CUT-OUT - TRANSOM PLATE
  • 57
    10-30902 SCREW, SWITCH ASSEMBLY TO TRAMSOM PLATE (3/4")
    SCREW, SWITCH ASSEMBLY TO TRAMSOM PLATE (3/4")
  • 58
    66059A5 BRACKET MOUNTING - SHIFT
    BRACKET MOUNTING - SHIFT
  • 59
    10-35386 SCREW, SHIFT BRACKET ATTACHING
    SCREW, SHIFT BRACKET ATTACHING
  • 60
    13-39107 LOCKWASHER, SHIFT BRACKET ATTACHING SCREW
    LOCKWASHER, SHIFT BRACKET ATTACHING SCREW
  • 61
    86-66986 TERMINAL BLOCK, SHIFT BRACKET
    TERMINAL BLOCK, SHIFT BRACKET
  • 62
    10-24637 SCREW, TERMINAL BLOCK (7/8")
    SCREW, TERMINAL BLOCK (7/8")
  • 63
    10-45218 SCREW, TERMINAL BLOCK (3/8")
    SCREW, TERMINAL BLOCK (3/8")
  • 64
    13-26996 LOCKWASHER, TERMINAL BLOCK SCREW
    LOCKWASHER, TERMINAL BLOCK SCREW
  • 65
    84-60871A9 WIRE, TERMINAL BLOCK (BLACK - 13")
    WIRE, TERMINAL BLOCK (BLACK - 13")
