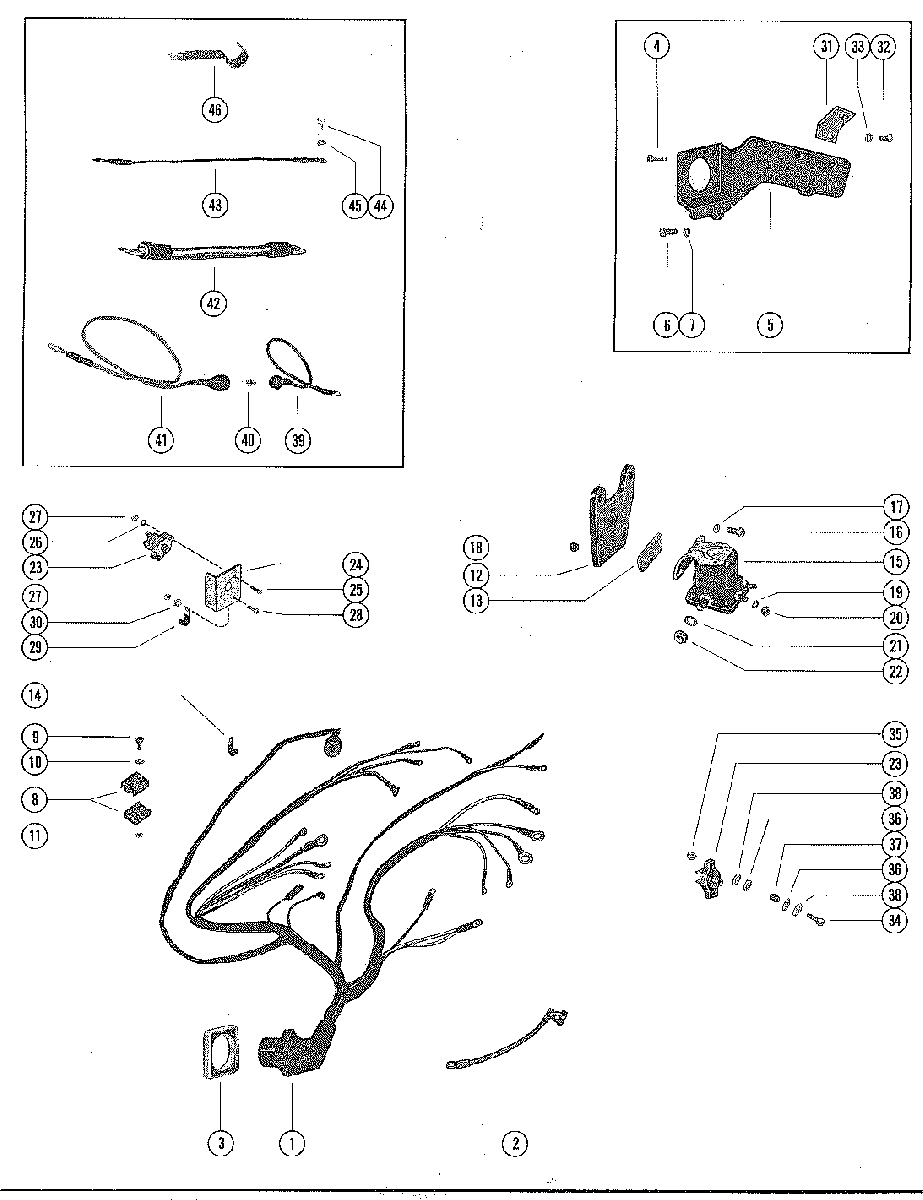

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 215 MIE FORD 302 V-8 1970-1972 2781153 THRU 3563181
-
№АртикулНазвание
-
157815 WIRING HARNESS (STERN DRIVE - HYDRAULIC SHIFT)WIRING HARNESS (STERN DRIVE - HYDRAULIC SHIFT)
-
156388 WIRING HARNESS (STERN DRIVE - ELECTRIC SHIFT)WIRING HARNESS (STERN DRIVE - ELECTRIC SHIFT)
-
156385 WIRING HARNESS (INBOARD)
SERIAL 00000000-03040410WIRING HARNESS (INBOARD)
SERIAL 00000000-03040410 -
159811 WIRING HARNESS (INBOARD
SERIAL 03040411-03085036WIRING HARNESS (INBOARD
SERIAL 03040411-03085036 -
184-64600 WIRING HARNESS (INBOARD)
SERIAL 03258182-09999999WIRING HARNESS (INBOARD)
SERIAL 03258182-09999999 -
245108 BATTERY CABLE, POSITIVE
LUG TYPEBATTERY CABLE, POSITIVE
LUG TYPE -
245107 BATTERY CABLE, NEGATIVE
LUG TYPEBATTERY CABLE, NEGATIVE
LUG TYPE -
326079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKETPLATE, WIRING HARNESS TO MOUNTING BRACKET
-
410-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
-
554227 BRACKET, MOUNTING - STARTER SOLENOID
HYDRAULIC SHIFTBRACKET, MOUNTING - STARTER SOLENOID
HYDRAULIC SHIFT -
610-20359 SCREW, MOUNTING BRACKET ATTACHING (1") STERN DRIVE
HYDRAULIC SHIFTSCREW, MOUNTING BRACKET ATTACHING (1") STERN DRIVE
HYDRAULIC SHIFT -
610-37612 SCREW, MOUNTING BRACKET ATTACHING (1 1/4") STERN DRIVE
HYDRAULIC SHIFTSCREW, MOUNTING BRACKET ATTACHING (1 1/4") STERN DRIVE
HYDRAULIC SHIFT -
610-21077 SCREW, MOUNTING BRACKET ATTACHING (7/8") - INBOARD
HYDRAULIC SHIFTSCREW, MOUNTING BRACKET ATTACHING (7/8") - INBOARD
HYDRAULIC SHIFT -
713-35048 LOCKWASHER, MOUNTING BRACKET SCREW - INBOARD
HYDRAULIC SHIFTLOCKWASHER, MOUNTING BRACKET SCREW - INBOARD
HYDRAULIC SHIFT -
839974 CONNECTOR, TRIM LEADS - MOUNTING BRACKET
HYDRAULIC SHIFTCONNECTOR, TRIM LEADS - MOUNTING BRACKET
HYDRAULIC SHIFT -
910-46718 SCREW, CONNECTOR TO MOUNTING BRACKET (15/16")
HYDRAULIC SHIFTSCREW, CONNECTOR TO MOUNTING BRACKET (15/16")
HYDRAULIC SHIFT -
839974 CONNECTOR, TRIM LEADS - MOUNTING BRACKET
ELECTRIC SHIFTCONNECTOR, TRIM LEADS - MOUNTING BRACKET
ELECTRIC SHIFT -
910-23702 SCREW, CONNECTOR TO MOUNTING BRACKET
ELECTRIC SHIFTSCREW, CONNECTOR TO MOUNTING BRACKET
ELECTRIC SHIFT -
1012-26013 WASHER, CONNECTOR SCREW
ELECTRIC SHIFTWASHER, CONNECTOR SCREW
ELECTRIC SHIFT -
1111-46438 NUT, CONNECTOR SCREW
ELECTRIC SHIFTNUT, CONNECTOR SCREW
ELECTRIC SHIFT -
1254869 BRACKET, MOUNTING - STARTER SOLENOID
ELECTRIC SHIFTBRACKET, MOUNTING - STARTER SOLENOID
ELECTRIC SHIFT -
1336177 INSULATOR, SOLENOID TO MOUNTING BRACKET
ELECTRIC SHIFTINSULATOR, SOLENOID TO MOUNTING BRACKET
ELECTRIC SHIFT -
1454-54457 "J" CLIP, WIRING HARNESS TO ROCKER COVER (FRONT)"J" CLIP, WIRING HARNESS TO ROCKER COVER (FRONT)
-
1454-55098 "J" CLIP, WIRING HARNESS TO ROCKER COVER (REAR)"J" CLIP, WIRING HARNESS TO ROCKER COVER (REAR)
-
1525661T1 STARTER SOLENOID
HYDRAULIC SHIFT AND INBOARDSTARTER SOLENOID
HYDRAULIC SHIFT AND INBOARD -
1610-69054 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
HYDRAULIC SHIFT AND INBOARDSCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
HYDRAULIC SHIFT AND INBOARD -
1713-26992 LOCKWASHER, STARTER SOLENOID SCREW
HYDRAULIC SHIFT AND INBOARDLOCKWASHER, STARTER SOLENOID SCREW
HYDRAULIC SHIFT AND INBOARD -
1565057T1 STARTER SOLENOID
ELECTRIC SHIFTSTARTER SOLENOID
ELECTRIC SHIFT -
1610-22956 SCREW, STARTER SOLENOID TO MOUNTING BRACKET
ELECTRIC SHIFTSCREW, STARTER SOLENOID TO MOUNTING BRACKET
ELECTRIC SHIFT -
1712-22937 WASHER, STARTER SOLENOID SCREW
ELECTRIC SHIFTWASHER, STARTER SOLENOID SCREW
ELECTRIC SHIFT -
1811-826709109 NUT, STARTER SOLENOID SCREW
ELECTRIC SHIFTNUT, STARTER SOLENOID SCREW
ELECTRIC SHIFT -
1913-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
2011-68219 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
2113-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
2211-22053 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
2359816 CIRCUIT BREAKER
SERIAL 03040411-09999999CIRCUIT BREAKER
SERIAL 03040411-09999999 -
2310-36046 SCREW, CIRCUIT BREAKER
SERIAL 03040411-09999999SCREW, CIRCUIT BREAKER
SERIAL 03040411-09999999 -
2459815 BRACKET, CIRCUIT BREAKER
INBOARD SERIAL 03040411-03085036BRACKET, CIRCUIT BREAKER
INBOARD SERIAL 03040411-03085036 -
2510-24637 SCREW, CIRCUIT BREAKER TO BRACKET
INBOARDSCREW, CIRCUIT BREAKER TO BRACKET
INBOARD -
2613-26996 LOCKWASHER, BRACKET AND CLIP SCREW
INBOARDLOCKWASHER, BRACKET AND CLIP SCREW
INBOARD -
2711-68219 NUT, CABLE CLIP AND BREAKER SCREW
INBOARDNUT, CABLE CLIP AND BREAKER SCREW
INBOARD -
2810-48591 SCREW, CABLE CLIP TO BRACKET
INBOARDSCREW, CABLE CLIP TO BRACKET
INBOARD -
2954-22740 CLIP, CABLE ATTACHING TO BRACKET
INBOARDCLIP, CABLE ATTACHING TO BRACKET
INBOARD -
308M0084613 "C" WASHER, CABLE CLIP
INBOARD"C" WASHER, CABLE CLIP
INBOARD -
3165940 BRACKET, CIRCUIT BREAKER
INBOARD SERIAL 03258182-09999999BRACKET, CIRCUIT BREAKER
INBOARD SERIAL 03258182-09999999 -
3210-37656 SCREW, CIRCUIT BREAKER BRACKET ATTACHING
INBOARDSCREW, CIRCUIT BREAKER BRACKET ATTACHING
INBOARD -
3313-26996 LOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
INBOARDLOCKWASHER, CIRCUIT BREAKER BRACKET SCREW
INBOARD -
3410-47618 SCREW, CIRCUIT BREAKER TO BRACKET
INBOARDSCREW, CIRCUIT BREAKER TO BRACKET
INBOARD -
3511-46438 NUT, CIRCUIT BREAKER SCREW
INBOARDNUT, CIRCUIT BREAKER SCREW
INBOARD -
3625-61999 GROMMET, CIRCUIT BREAKER SCREW
INBOARDGROMMET, CIRCUIT BREAKER SCREW
INBOARD -
3723-61998 SPACER, CIRCUIT BREAKER SCREW
INBOARDSPACER, CIRCUIT BREAKER SCREW
INBOARD -
3812-47960 WASHER, CIRCUIT BREAKER SCREW
INBOARDWASHER, CIRCUIT BREAKER SCREW
INBOARD -
3955863 JUMPER WIRE, FUSE HOLDER - MALE
ELECTRIC SHIFTJUMPER WIRE, FUSE HOLDER - MALE
ELECTRIC SHIFT -
4055864 FUSE
ELECTRIC SHIFTFUSE
ELECTRIC SHIFT -
4155862 JUMPER WIRE, FUSE HOLDER - FEMALE
ELECTRIC SHIFTJUMPER WIRE, FUSE HOLDER - FEMALE
ELECTRIC SHIFT -
4254979 CABLE, STARTER (YELLOW - 9 1/2")
ELECTRIC SHIFTCABLE, STARTER (YELLOW - 9 1/2")
ELECTRIC SHIFT -
4358465 GROUND WIRE (BLACK - 12")
ELECTRIC SHIFTGROUND WIRE (BLACK - 12")
ELECTRIC SHIFT -
4410-92913 SCREW, GROUND WIRE ATTACHING
ELECTRIC SHIFTSCREW, GROUND WIRE ATTACHING
ELECTRIC SHIFT -
4513-32993 LOCKWASHER, GROUND WIRE SCREW
ELECTRIC SHIFTLOCKWASHER, GROUND WIRE SCREW
ELECTRIC SHIFT -
4658501A1 JUMPER ASSEMBLY, EMERGENCY START
ELECTRIC SHIFTJUMPER ASSEMBLY, EMERGENCY START
ELECTRIC SHIFT
