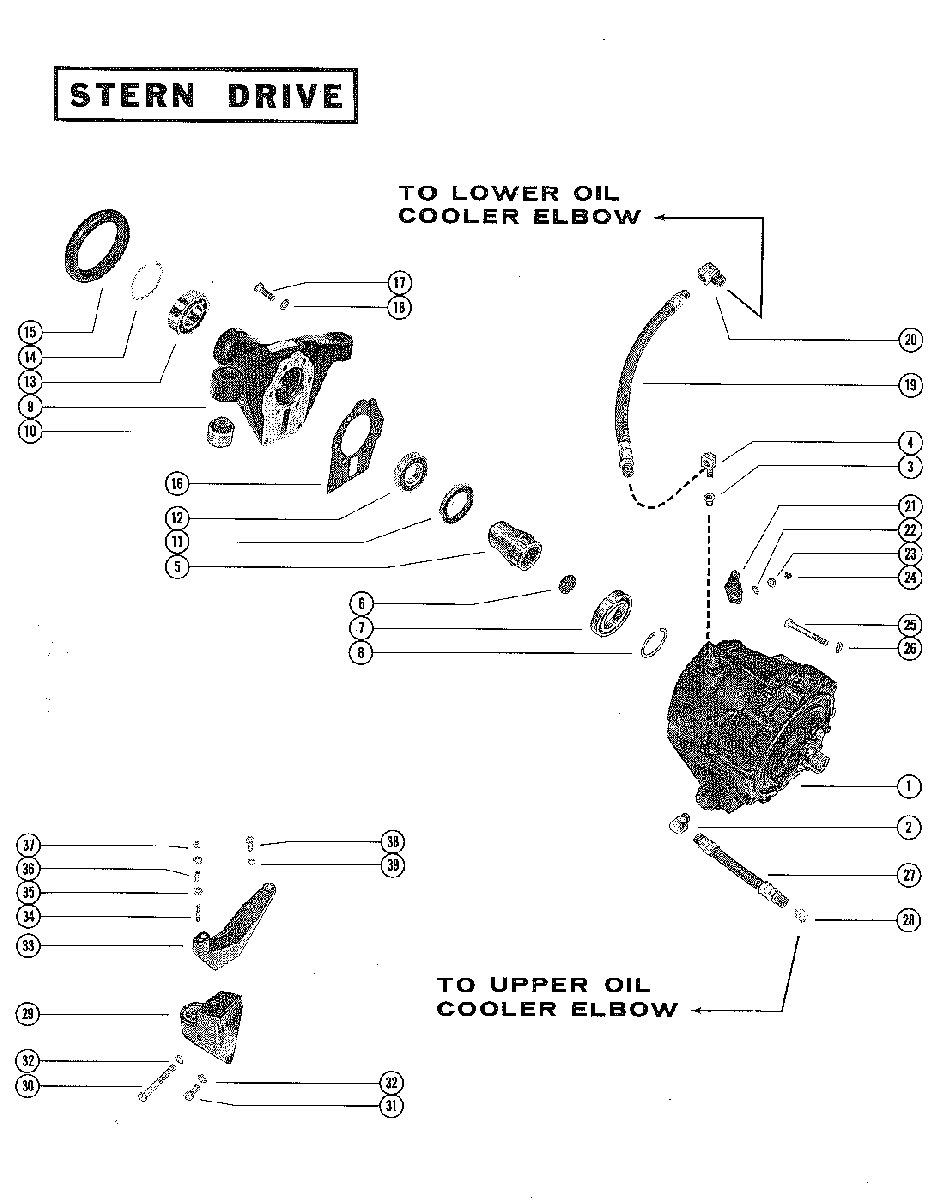

TRANSMISSION ASSEMBLY (STERN DRIVE) для Mercruiser - 215 MIE FORD 302 V-8 1970-1972 2781153 THRU 3563181

  • №
    Артикул
    Название
  • 1
    47753A6 TRANSMISSION ASSEMBLY
    TRANSMISSION ASSEMBLY
  • 2
    22-47629 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 3
    23-36159 BUSHING, REDUCER - TRANSMISSION ELBOW
    BUSHING, REDUCER - TRANSMISSION ELBOW
  • 4
    32-57631 ELBOW, TRANSMISSION TO OIL HOSE
    ELBOW, TRANSMISSION TO OIL HOSE
  • 5
    57758A2 ENGINE COUPLING ASSEMLBY, TRANSMISSION
    ENGINE COUPLING ASSEMLBY, TRANSMISSION
  • 6
    19-47463 PLUG, EXPANSION - ENGINE COUPLING
    PLUG, EXPANSION - ENGINE COUPLING
  • 7
    30-47470 BALL BEARING, ENGINE COUPLING
    BALL BEARING, ENGINE COUPLING
  • 8
    53-47469 RING, SNAP - BALL BEARING TO ENGINE COUPLING
    RING, SNAP - BALL BEARING TO ENGINE COUPLING
  • 9
    98322A2 TAILSTOCK ASSEMBLY, BEARING SUPPORT
    TAILSTOCK ASSEMBLY, BEARING SUPPORT
  • 10
    35852 MOUNT, RUBBER - TAILSTOCK
    MOUNT, RUBBER - TAILSTOCK
  • 11
    26-47465 OIL SEAL, TAILSTOCK
    OIL SEAL, TAILSTOCK
  • 12
    30-57762T BALL BEARING, TAILSTOCK (3 5/32" O.D.)
    BALL BEARING, TAILSTOCK (3 5/32" O.D.)
  • 13
    30-32537T BALL BEARING, TAILSTOCK (2 27/32" O.D.)
    BALL BEARING, TAILSTOCK (2 27/32" O.D.)
  • 14
    53-54481 RING, SNAP - BALL BEARING TO TAILSTOCK
    RING, SNAP - BALL BEARING TO TAILSTOCK
  • 15
    25-54067 SEAL, TAILSTOCK
    SEAL, TAILSTOCK
  • 16
    27-47903 GASKET, TAILSTOCK
    GASKET, TAILSTOCK
  • 17
    10-29081 SCREW, TAILSTOCK TO TRANSMISSION (1 1/4")
    SCREW, TAILSTOCK TO TRANSMISSION (1 1/4")
  • 17
    10-54847 SCREW, TAIL STOCK TO TRANSMISSION (2")
    SCREW, TAIL STOCK TO TRANSMISSION (2")
  • 18
    13-30381 LOCKWASHER, TAILSTOCK SCREW
    LOCKWASHER, TAILSTOCK SCREW
  • 19
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (15")
    HOSE, TRANSMISSION TO OIL COOLER (15")
  • 20
    22-47630 ELBOW, TRANSMISSION HOSE
    ELBOW, TRANSMISSION HOSE
  • 21
    12128 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 22
    12-20722 WASHER, SHIFT LEVER TO TRANSMISSION
    WASHER, SHIFT LEVER TO TRANSMISSION
  • 23
    13-26993 LOCKWASHER, SHIFT LEVER TO TRAMSMISSION
    LOCKWASHER, SHIFT LEVER TO TRAMSMISSION
  • 24
    11-22053 NUT, SHIFT LEVER TO TRANSMISSION
    NUT, SHIFT LEVER TO TRANSMISSION
  • 25
    10-47724 SCREW, TRANSMISSION TO ENGINE (3")
    SCREW, TRANSMISSION TO ENGINE (3")
  • 26
    13-32993 LOCKWASHER, TRANSMISSION SCREW
    LOCKWASHER, TRANSMISSION SCREW
  • 27
    32-475163 HOSE, TRANSMISSION TO OIL COOLER (7 7/8")
    HOSE, TRANSMISSION TO OIL COOLER (7 7/8")
  • 28
    22-47630 ELBOW, HOSE TO OIL COOLER
    ELBOW, HOSE TO OIL COOLER
  • 29
    47336A1 BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARBOARD)
    BRACKET ASSEMBLY, TRANSMISSION MOUNT (STARBOARD)
  • 30
    10-38197 SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")
    SCREW, MOUNT BRACKET TO TRANSMISSION (3 1/2")
  • 31
    10-47462 SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
    SCREW, MOUNT BRACKET TO TRANSMISSION (1 1/4")
  • 32
    13-32993 LOCKWASHER, MOUNT BRACKET SCREW
    LOCKWASHER, MOUNT BRACKET SCREW
  • 33
    47335A1 BRACKET ASSEMBLY, SHIFT SUPPORT
    BRACKET ASSEMBLY, SHIFT SUPPORT
  • 34
    16-728091 STUD, SHIFT SUPPORT BRACKET
    STUD, SHIFT SUPPORT BRACKET
  • 35
    12-69056 WASHER, SHIFT SUPPORT BRACKET STUD
    WASHER, SHIFT SUPPORT BRACKET STUD
  • 36
    23-31866 SPACER, SHIFT SUPPORT BRACKET STUD
    SPACER, SHIFT SUPPORT BRACKET STUD
  • 37
    11-826709109 NUT, SHIFT SUPPORT BRACKET STUD
    NUT, SHIFT SUPPORT BRACKET STUD
  • 38
    10-35386 SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")
    SCREW, SHIFT SUPPORT BRACKET TO MOUNT BRACKET (1")
  • 39
    13-26993 LOCKWASHER, SHIFT SUPPORT BRACKET SCREW
    LOCKWASHER, SHIFT SUPPORT BRACKET SCREW
