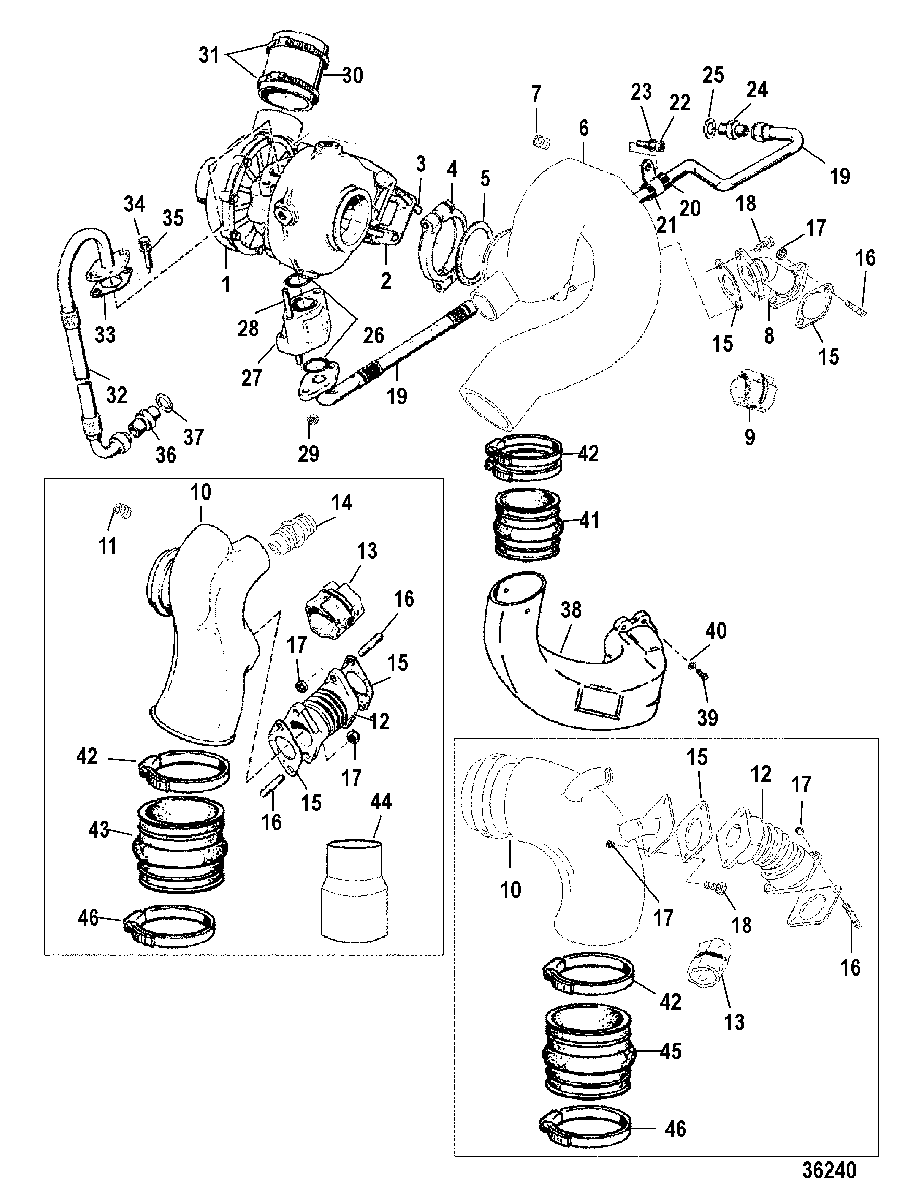

TURBO CHARGER/EXHAUST ELBOW для Mercruiser - D4.2L/250 D-TRONIC VM 254 I/L6 0K144114 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    854212 TURBOCHARGER
    (2.8L)
    TURBOCHARGER
    (2.8L)
  • 1
    854128 TURBOCHARGER
    (4.2L)
    TURBOCHARGER
    (4.2L)
  • 2
    27-8M0094247 GASKET
    GASKET
  • 3
    16-8M0073963 STUD, (M10 x 30)
    STUD, (M10 x 30)
  • 4
    54-864148A01 CLAMP
    CLAMP
  • 5
    27-817089 GASKET
    GASKET
  • 6
    805265A1 ELBOW, Exhaust
    (STERNDRIVE)
    ELBOW, Exhaust
    (STERNDRIVE)
  • 7
    22-36382 FITTING, (.250-18 x .62) Brass
    (STERNDRIVE)
    FITTING, (.250-18 x .62) Brass
    (STERNDRIVE)
  • 8
    807049T FLEX TUBE
    (STERNDRIVE)
    FLEX TUBE
    (STERNDRIVE)
  • 9
    855483 BLANKET
    (STERNDRIVE)
    BLANKET
    (STERNDRIVE)
  • 10
    805602A2 ELBOW, Exhaust
    (INBOARD DESIGN 1)
    ELBOW, Exhaust
    (INBOARD DESIGN 1)
  • 10
    8M0086902 ELBOW, 65 Degree, Exhaust
    (65 DEG. DOWN ANGLE)(INBOARD DESIGN 2)
    ELBOW, 65 Degree, Exhaust
    (65 DEG. DOWN ANGLE)(INBOARD DESIGN 2)
  • 10
    803609001 ELBOW, Exhaust (33 Degree)
    (DOWN ANGLE)(INBOARD DESIGN 2)
    ELBOW, Exhaust (33 Degree)
    (DOWN ANGLE)(INBOARD DESIGN 2)
  • 11
    22-91016 PLUG
    (INBOARD DESIGN 1)
    PLUG
    (INBOARD DESIGN 1)
  • 12
    807050T FLEX TUBE
    (INBOARD DESIGN 1)
    FLEX TUBE
    (INBOARD DESIGN 1)
  • 12
    879172157 FLEX TUBE
    (INBOARD DESIGN 2)
    FLEX TUBE
    (INBOARD DESIGN 2)
  • 13
    817078 BLANKET
    (INBOARD DESIGN 1)
    BLANKET
    (INBOARD DESIGN 1)
  • 13
    855483 BLANKET
    (INBOARD DESIGN 2)
    BLANKET
    (INBOARD DESIGN 2)
  • 14
    22-805315 CONNECTOR
    (INBOARD DESIGN 1)
    CONNECTOR
    (INBOARD DESIGN 1)
  • 15
    27-879721 GASKET
    GASKET
  • 16
    16-898101517 STUD, (M8 x 20)
    STUD, (M8 x 20)
  • 17
    11-854037 NUT, (M8)
    NUT, (M8)
  • 18
    10-898101555 SCREW, (M8 x 20)
    (STERNDRIVE)
    SCREW, (M8 x 20)
    (STERNDRIVE)
  • 18
    10-898101556 SCREW, (M8 x 25)
    (INBOARD DESIGN 2)
    SCREW, (M8 x 25)
    (INBOARD DESIGN 2)
  • 19
    32-855480 PIPE
    (2.8L)
    PIPE
    (2.8L)
  • 19
    32-854130 PIPE
    (4.2L)
    PIPE
    (4.2L)
  • 20
    23-811466 SLEEVE
    SLEEVE
  • 21
    54-811467 CLIP
    CLIP
  • 22
    10-811463 SCREW
    SCREW
  • 23
    13-811460 LOCKWASHER
    LOCKWASHER
  • 24
    22-801333464 FITTING
    FITTING
  • 25
    25-809963342 O-RING
    O-RING
  • 26
    25-811461 O-RING
    O-RING
  • 27
    889919 HOUSING
    HOUSING
  • 28
    16-801333451 STUD, (M8 x 90)
    STUD, (M8 x 90)
  • 29
    11-854037 NUT, (M8)
    NUT, (M8)
  • 30
    32-891889 HOSE
    HOSE
  • 31
    54-811435 CLAMP
    CLAMP
  • 32
    32-854132 PIPE
    PIPE
  • 33
    27-854133 GASKET
    GASKET
  • 34
    10-898101555 SCREW
    SCREW
  • 35
    13-811460 LOCKWASHER
    LOCKWASHER
  • 36
    22-801763389 FITTING
    FITTING
  • 37
    12-889153 WASHER
    WASHER
  • 38
    805013T1 PIPE, Exhaust
    (STERNDRIVE)
    PIPE, Exhaust
    (STERNDRIVE)
  • 39
    10-8M0113174 SCREW, (.375-16 x 1.25)
    (STERNDRIVE)
    SCREW, (.375-16 x 1.25)
    (STERNDRIVE)
  • 40
    13-41471 LOCKWASHER, (.375)
    (STERNDRIVE)
    LOCKWASHER, (.375)
    (STERNDRIVE)
  • 41
    32-44348001 TUBE
    (STERNDRIVE)
    TUBE
    (STERNDRIVE)
  • 42
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 43
    32-815529 TUBE, Exhaust
    (INBOARD DESIGN 1)
    TUBE, Exhaust
    (INBOARD DESIGN 1)
  • 44
    818184T ADAPTOR, Exhaust
    (INBOARD DESIGN 1)
    ADAPTOR, Exhaust
    (INBOARD DESIGN 1)
  • 45
    32-860602 TUBE, Exhaust
    (INBOARD DESIGN 2)
    TUBE, Exhaust
    (INBOARD DESIGN 2)
  • 46
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    27-898300001 GASKET SET, Overhaul
    (2.8L) SN# 0K098059 THRU 0L098059
    GASKET SET, Overhaul
    (2.8L) SN# 0K098059 THRU 0L098059
  • -
    27-879684 GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
    GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
  • -
    27-898300006 GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
    GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
  • -
    27-898272016 GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
    GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
