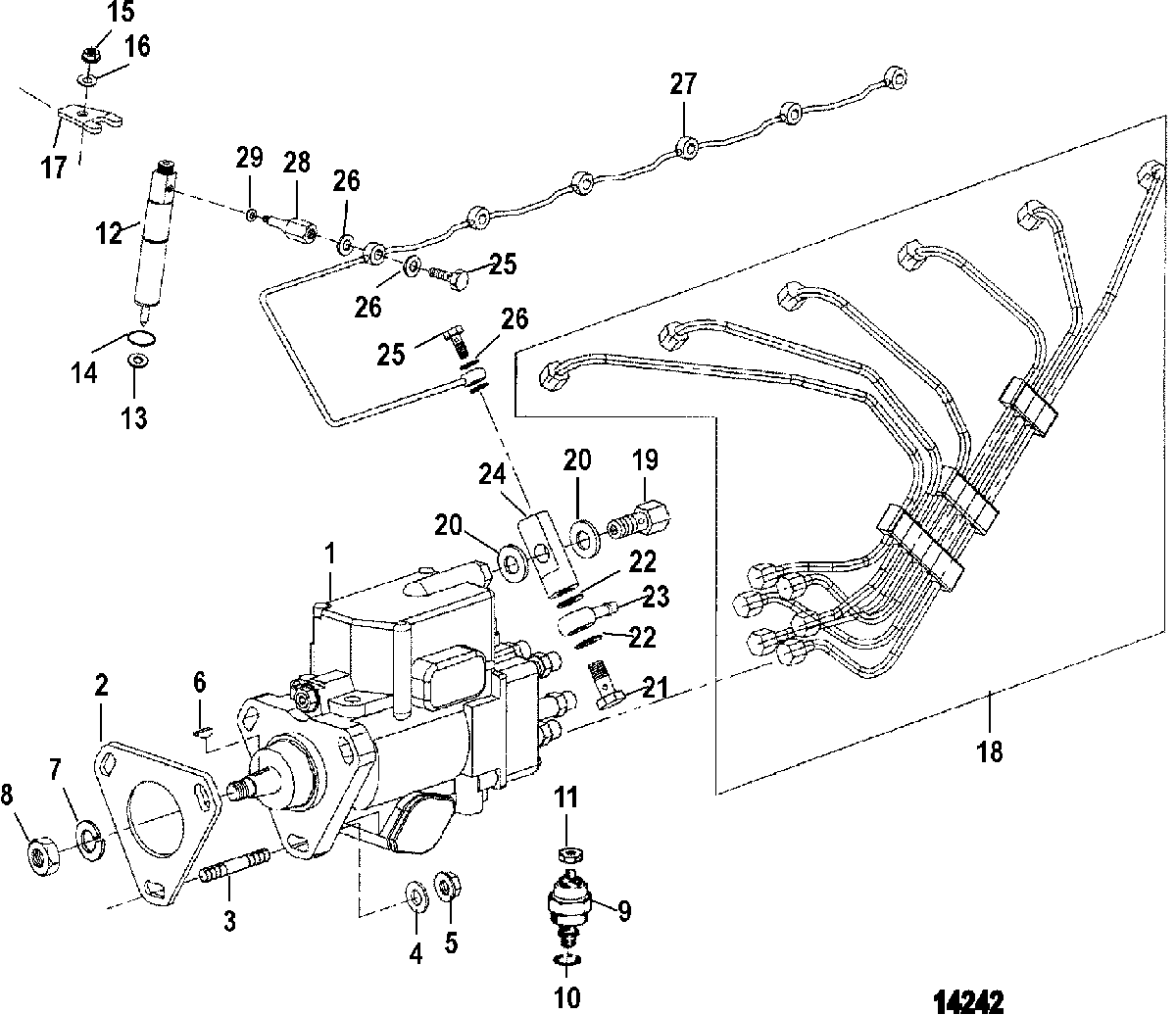

INJECTION PUMP, NOZZLE AND LINES для Mercruiser - D4.2L/250 D-TRONIC VM 254 I/L6 0K144114 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    854213 PUMP, Injection
    (2.8L)
    PUMP, Injection
    (2.8L)
  • 1
    854134 PUMP, Injection
    (4.2L)
    PUMP, Injection
    (4.2L)
  • 2
    27-898101487 GASKET
    GASKET
  • 3
    16-854135 STUD, (M8 x 30)
    STUD, (M8 x 30)
  • 4
    12-811409 WASHER
    WASHER
  • 5
    11-854037 NUT, (M8)
    NUT, (M8)
  • 6
    28-854136 KEY
    KEY
  • 7
    13-879194375 LOCKWASHER
    LOCKWASHER
  • 8
    11-854137 NUT
    NUT
  • 9
    803623001 VALVE
    VALVE
  • 10
    12-811407 WASHER
    WASHER
  • 11
    11-809922038 NUT
    NUT
  • 12
    854138 INJECTION NOZZLE
    INJECTION NOZZLE
  • 12
    886056001 INJECTION NOZZLE (#1 CYLINDER)
    INJECTION NOZZLE (#1 CYLINDER)
  • 13
    27-854142 GASKET, Injector Nozzle
    (2.8L)
    GASKET, Injector Nozzle
    (2.8L)
  • 13
    27-854142 GASKET, Injector Nozzle
    (4.2L)
    GASKET, Injector Nozzle
    (4.2L)
  • 14
    25-854143 O-RING
    (2.8L)
    O-RING
    (2.8L)
  • 14
    25-854143 O-RING
    (4.2L)
    O-RING
    (4.2L)
  • 15
    11-854037 NUT, (M8)
    NUT, (M8)
  • 16
    12-811455 WASHER
    WASHER
  • 17
    854140 BRACKET
    BRACKET
  • 18
    32-855484 PRESSURE PIPES ASSEMBLY
    (2.8L)
    PRESSURE PIPES ASSEMBLY
    (2.8L)
  • 18
    32-855383 PRESSURE PIPES ASSEMBLY
    (4.2L)
    PRESSURE PIPES ASSEMBLY
    (4.2L)
  • 19
    10-801761166 SCREW
    SCREW
  • 20
    25-809963129 WASHER
    WASHER
  • 21
    10-879194176 SCREW, (M14)
    SCREW, (M14)
  • 22
    12-889153 WASHER
    WASHER
  • 23
    22-898272043 FITTING
    FITTING
  • 24
    801761163 CONNECTOR, Return
    CONNECTOR, Return
  • 25
    10-801761165 BOLT, Banjo (M8 x 1.00)
    BOLT, Banjo (M8 x 1.00)
  • 26
    25-809963042 O-RING
    (2.8L)
    O-RING
    (2.8L)
  • 26
    25-809963042 O-RING
    (4.2L)
    O-RING
    (4.2L)
  • 27
    32-855485 PIPE
    (2.8L)
    PIPE
    (2.8L)
  • 27
    32-854141 PIPE
    (4.2L)
    PIPE
    (4.2L)
  • 28
    22-879704 ADAPTOR, Injector Nozzle
    ADAPTOR, Injector Nozzle
  • 29
    12-811411 WASHER, Sealing
    (2.8L)
    WASHER, Sealing
    (2.8L)
  • 29
    12-811411 WASHER, Sealing
    (4.2L)
    WASHER, Sealing
    (4.2L)
  • -
    27-898300001 GASKET SET, Overhaul
    (2.8L) SN# 0K144109 THRU 0L098058
    GASKET SET, Overhaul
    (2.8L) SN# 0K144109 THRU 0L098058
  • -
    27-879684 GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
    GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
  • -
    27-898300006 GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
    GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
  • -
    27-898272016 GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
    GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
  • -
    27-898300 GASKET SET, Cylinder Head
    (2.8L) SN# 0K144109 THRU 0L098058
    GASKET SET, Cylinder Head
    (2.8L) SN# 0K144109 THRU 0L098058
  • -
    27-883962 GASKET SET, Cylinder Head
    (2.8L) SN# 0L098059 & Up
    GASKET SET, Cylinder Head
    (2.8L) SN# 0L098059 & Up
  • -
    27-898300005 GASKET SET, Cylinder Head
    (4.2L) SN# 0K144114 THRU 0L098231
    GASKET SET, Cylinder Head
    (4.2L) SN# 0K144114 THRU 0L098231
  • -
    27-898272018 GASKET SET, Cylinder Head
    (4.2L) SN# 0L0980232 & Up
    GASKET SET, Cylinder Head
    (4.2L) SN# 0L0980232 & Up
