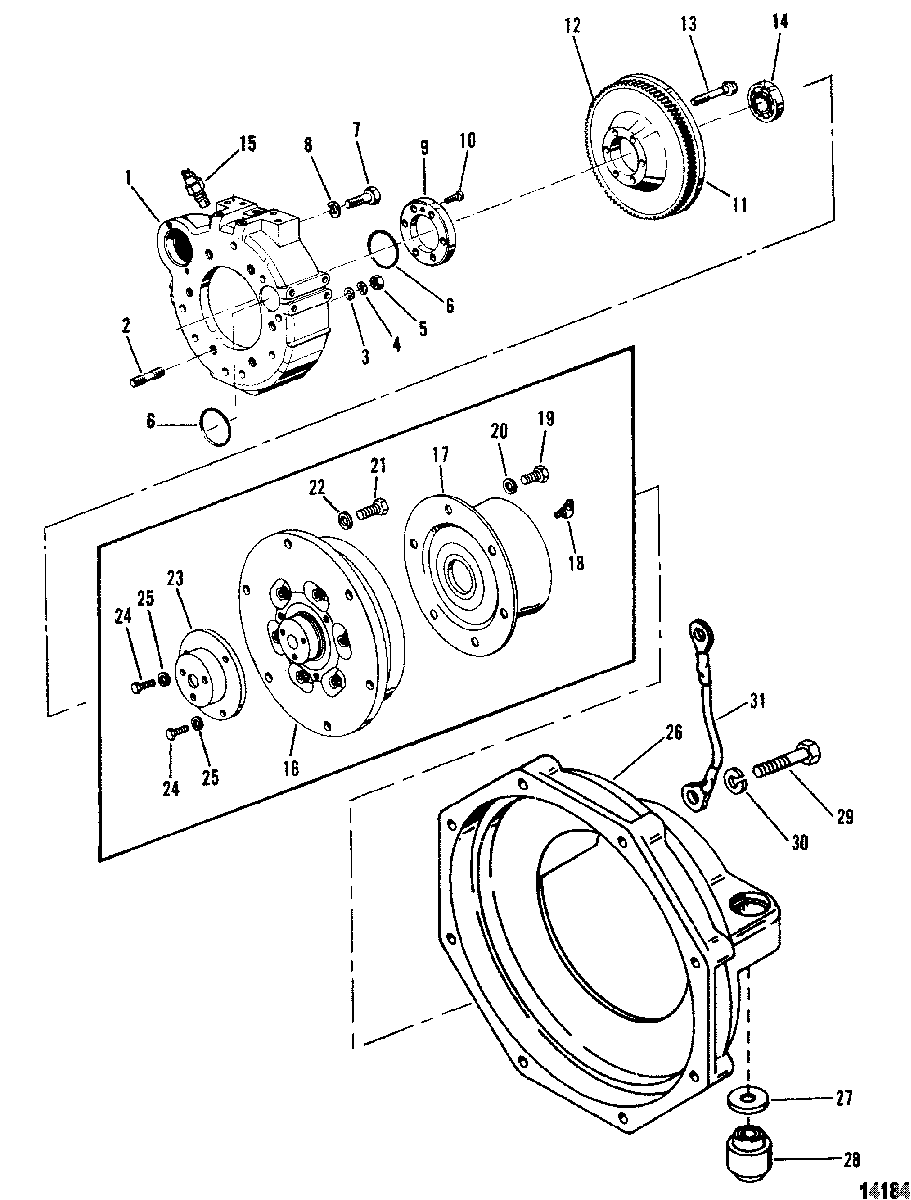

Flywheel Housing(Sterndrive) для Mercruiser - D3.6L VM 219 I/L6 0D850128 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    801331695 HOUSING, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    HOUSING, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 2
    16-8M0048120 STUD
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    STUD
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 3
    12-4002217 WASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    WASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 4
    13-811460 LOCKWASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 5
    11-400213 NUT, (M8) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    NUT, (M8) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 6
    25-801331619 O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 7
    10-809913837 SCREW
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
    SCREW
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
  • 8
    13-809932112 LOCKWASHER
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
    LOCKWASHER
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
  • 9
    855452 SPACER, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SPACER, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 10
    10-801331698 SCREW, (M4 x 10)
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SCREW, (M4 x 10)
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 11
    265-801331699 FLYWHEEL
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    FLYWHEEL
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 12
    43-801331701 RING GEAR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    RING GEAR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 13
    10-879711 BOLT
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    BOLT
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 14
    30-801331702 BEARING, Ball
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    BEARING, Ball
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 15
    806553 SENDER, Tachometer, Pick-Up
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SENDER, Tachometer, Pick-Up
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 16
    18311A9 COUPLING ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    COUPLING ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 17
    805684A2 COUPLING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    COUPLING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 18
    22-49099 FITTING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    FITTING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 19
    10-40001189 SCREW, (M10 x 20)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    SCREW, (M10 x 20)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 20
    13-400248 LOCKWASHER, (M10)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER, (M10)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 21
    10-40001134 SCREW, (M8 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    SCREW, (M8 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 22
    13-400247 LOCKWASHER, (M8)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER, (M8)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 23
    805731 COUPLER
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    COUPLER
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 24
    10-4000175 SCREW, (M6 x 20)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    SCREW, (M6 x 20)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER, (.250) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 26
    898272024 HOUSING ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    HOUSING ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 27
    23-99322 SPACER
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    SPACER
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 28
    865330A02 MOUNT
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    MOUNT
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 29
    10-40001206 SCREW, (M10 x 50)
    (Quantities (5 CYL) - 7; (6 CYL) - 7)
    SCREW, (M10 x 50)
    (Quantities (5 CYL) - 7; (6 CYL) - 7)
  • 30
    13-879194382 LOCKWASHER
    (Quantities (5 CYL) - 7; (6 CYL) - 7)
    LOCKWASHER
    (Quantities (5 CYL) - 7; (6 CYL) - 7)
  • 31
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 32
    27-898300008 GASKET SET
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
    GASKET SET
    (Quantities (5 CYL) - 1; (6 CYL) - 0)
  • 33
    27-822570A1 GASKET SET, Overhaul
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
    GASKET SET, Overhaul
    (Quantities (5 CYL) - 0; (6 CYL) - 1)
