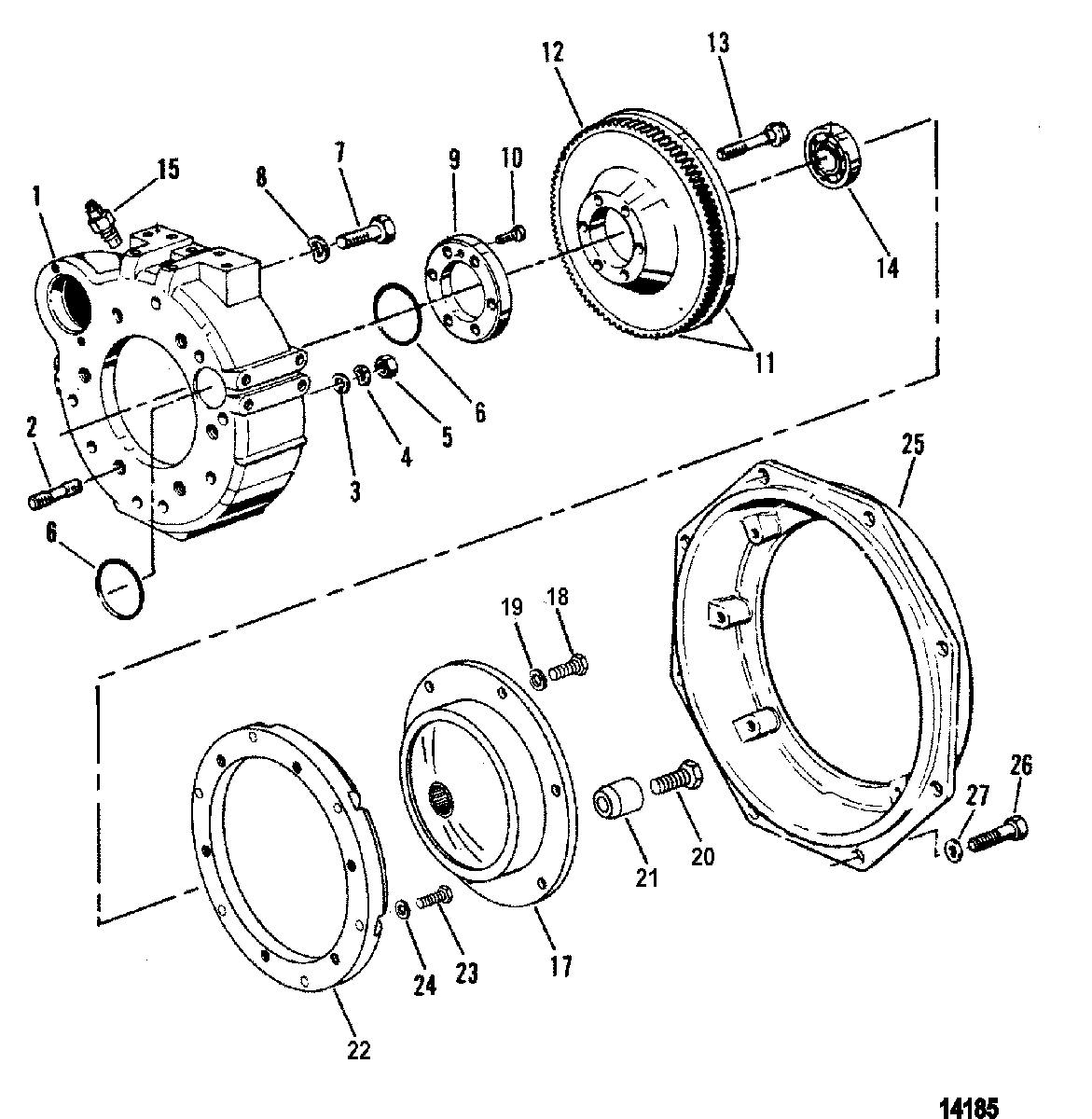

Flywheel Housing(Inboard) для Mercruiser - D3.6L VM 219 I/L6 0D850128 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    801331695 HOUSING, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    HOUSING, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 2
    16-8M0048120 STUD
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    STUD
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 3
    12-4002217 WASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    WASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 4
    13-811460 LOCKWASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 5
    11-400213 NUT, (M8) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    NUT, (M8) Stainless Steel
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 6
    25-801331619 O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
    O-RING
    (Quantities (5 CYL) - 2; (6 CYL) - 2)
  • 7
    10-809913837 SCREW
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
    SCREW
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
  • 8
    13-809932112 LOCKWASHER
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
    LOCKWASHER
    (Quantities (5 CYL) - 9; (6 CYL) - 9)
  • 9
    855452 SPACER, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SPACER, Flywheel
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 10
    10-801331698 SCREW, (M4 x 10)
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SCREW, (M4 x 10)
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 11
    265-801331699 FLYWHEEL
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    FLYWHEEL
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 12
    43-801331701 RING GEAR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    RING GEAR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 13
    10-879711 BOLT
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    BOLT
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 14
    30-801331702 BEARING, Ball
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    BEARING, Ball
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 15
    806553 SENDER, Tachometer
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    SENDER, Tachometer
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 17
    803610 COUPLER ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    COUPLER ASSEMBLY
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 18
    10-40001192 SCREW, (M10 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    SCREW, (M10 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 19
    13-400248 LOCKWASHER, (M10)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER, (M10)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 20
    10-80510915 SCREW
    (Quantity (5 CYL) - 4; (6 CYL) - 4) SN# 0F306781 & Below
    SCREW
    (Quantity (5 CYL) - 4; (6 CYL) - 4) SN# 0F306781 & Below
  • 21
    805110 SNUBBER
    (Quantity (5 CYL) - 4; (6 CYL) - 4) SN# 0F306781 & Below
    SNUBBER
    (Quantity (5 CYL) - 4; (6 CYL) - 4) SN# 0F306781 & Below
  • 22
    805064 ADAPTOR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    ADAPTOR
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 23
    10-40001134 SCREW, (M8 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    SCREW, (M8 x 25)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 24
    13-400247 LOCKWASHER, (M8)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
    LOCKWASHER, (M8)
    (Quantities (5 CYL) - 6; (6 CYL) - 6)
  • 25
    801333891 HOUSING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
    HOUSING
    (Quantities (5 CYL) - 1; (6 CYL) - 1)
  • 26
    10-809913837 SCREW
    (Quantities (5 CYL) - 8; (6 CYL) - 8)
    SCREW
    (Quantities (5 CYL) - 8; (6 CYL) - 8)
  • 27
    13-879194382 LOCKWASHER
    (Quantities (5 CYL) - 8; (6 CYL) - 8)
    LOCKWASHER
    (Quantities (5 CYL) - 8; (6 CYL) - 8)
