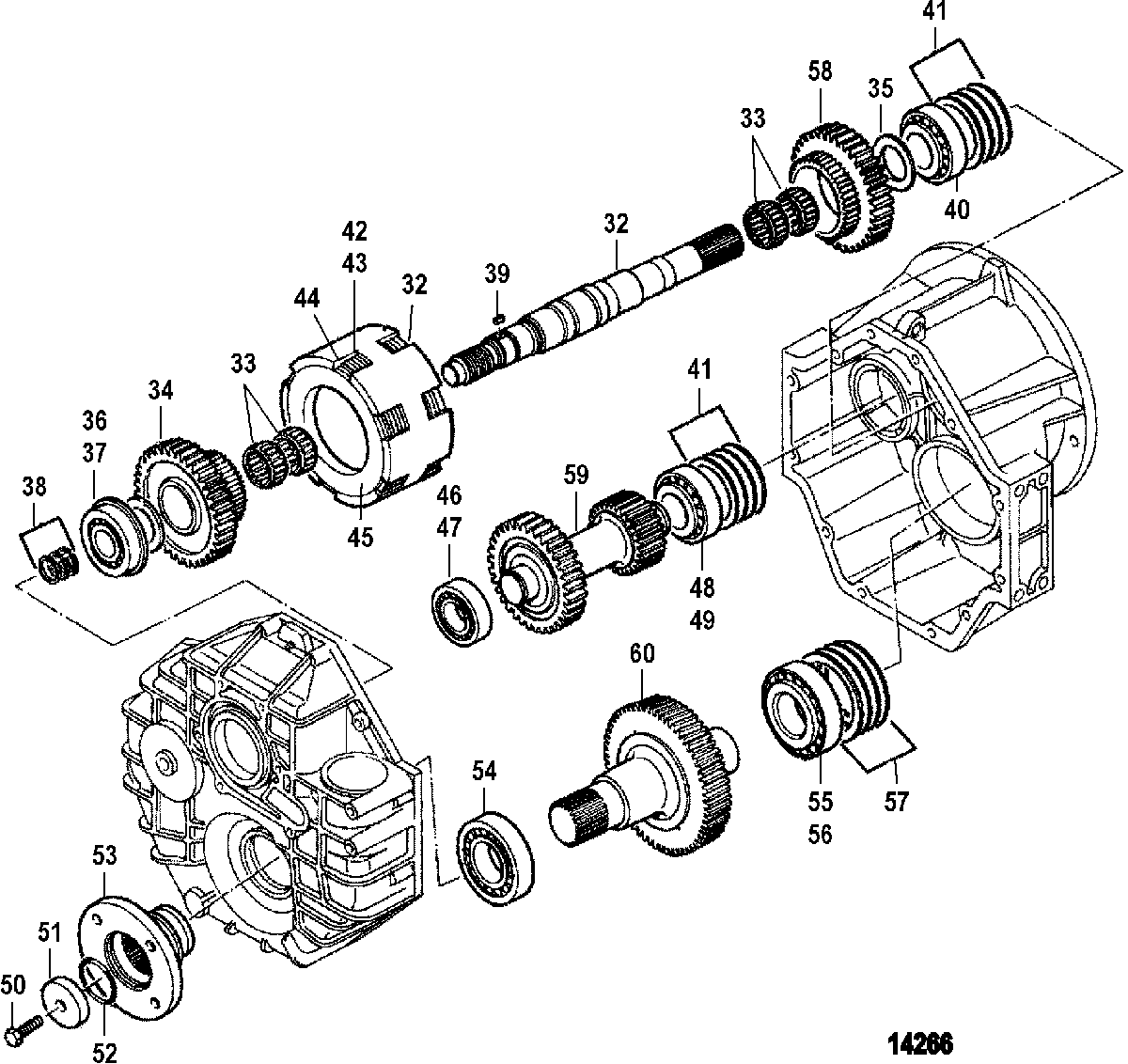

TRANSMISSION(DOWN ANGLE)(INBOARD) для Mercruiser - D2.8L/165 D-TRONIC VM 169 I/L4 0K144109 THRU 0M999999

  • №
    Артикул
    Название
  • -
    863744T2 TRANSMISSION, (1.5:1 Ratio)
    TRANSMISSION, (1.5:1 Ratio)
  • -
    863744T3 TRANSMISSION, (2.0:1 Ratio)
    TRANSMISSION, (2.0:1 Ratio)
  • -
    863744T4 TRANSMISSION, (2.50:1 Ratio)
    TRANSMISSION, (2.50:1 Ratio)
  • 32
    813306 SHAFT, Input
    Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Input
    Refer to MerCruiser Parts Bulletin 95-24
  • 33
    31-813307 BEARING, Roller
    Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Roller
    Refer to MerCruiser Parts Bulletin 95-24
  • 34
    43-813308 GEAR
    Refer to MerCruiser Parts Bulletin 95-24
    GEAR
    Refer to MerCruiser Parts Bulletin 95-24
  • 35
    12-813309 WASHER
    Refer to MerCruiser Parts Bulletin 95-24
    WASHER
    Refer to MerCruiser Parts Bulletin 95-24
  • 36
    31-852066 BEARING
    (INNER)
    BEARING
    (INNER)
  • 37
    28-853066 KEY
    (OUTER)
    KEY
    (OUTER)
  • 38
    53-813312 RING
    RING
  • 39
    28-813313 KEY
    Refer to MerCruiser Parts Bulletin 95-24
    KEY
    Refer to MerCruiser Parts Bulletin 95-24
  • 40
    30-813314 BEARING
    BEARING
  • 41
    15-813315 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 41
    15-813316 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 41
    15-813317 SHIM, (.20 mm)
    SHIM, (.20 mm)
  • 41
    15-813318 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 42
    813319 DISC (INNER)
    DISC (INNER)
  • 43
    813320 DISC (OUTER)
    DISC (OUTER)
  • 44
    53-813321 RING
    RING
  • 45
    813322 PRESSURE DISC
    Refer to MerCruiser Parts Bulletin 95-24
    PRESSURE DISC
    Refer to MerCruiser Parts Bulletin 95-24
  • 46
    31-813323 BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
  • 47
    31-813324 BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
  • 48
    31-813325 BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
  • 49
    31-813326 BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
  • 50
    10-813327 SCREW
    Refer to MerCruiser Parts Bulletin 95-24
    SCREW
    Refer to MerCruiser Parts Bulletin 95-24
  • 51
    23-813328 SPACER
    Refer to MerCruiser Parts Bulletin 95-24
    SPACER
    Refer to MerCruiser Parts Bulletin 95-24
  • 52
    25-813329 O-RING
    Refer to MerCruiser Parts Bulletin 95-24
    O-RING
    Refer to MerCruiser Parts Bulletin 95-24
  • 53
    813330 FLANGE, Output
    FLANGE, Output
  • 54
    31-813331 BEARING, Tapered Roller
    Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    Refer to MerCruiser Parts Bulletin 95-24
  • 55
    31-813332 BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (INNER) Refer to MerCruiser Parts Bulletin 95-24
  • 56
    31-813333 BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
    BEARING, Tapered Roller
    (OUTER) Refer to MerCruiser Parts Bulletin 95-24
  • 57
    15-813334 SHIM, (.10 mm)
    SHIM, (.10 mm)
  • 57
    15-813335 SHIM, (.15 mm)
    SHIM, (.15 mm)
  • 57
    15-813336 SHIM, (.30 mm)
    SHIM, (.30 mm)
  • 57
    15-813337 SHIM, (.50 mm)
    SHIM, (.50 mm)
  • 58
    43-813338 GEAR
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    GEAR
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 58
    43-813341 GEAR
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    GEAR
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 58
    43-813344 GEAR
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    GEAR
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 59
    813339 SHAFT, Intermediate
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Intermediate
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 59
    813342 SHAFT, Intermediate
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Intermediate
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 59
    813345 SHAFT, Intermediate
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Intermediate
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 60
    813340 SHAFT, Output
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Output
    1.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 60
    813343 SHAFT, Output
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Output
    2.0:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
  • 60
    813346 SHAFT, Output
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
    SHAFT, Output
    2.5:1 RATIO Refer to MerCruiser Parts Bulletin 95-24
