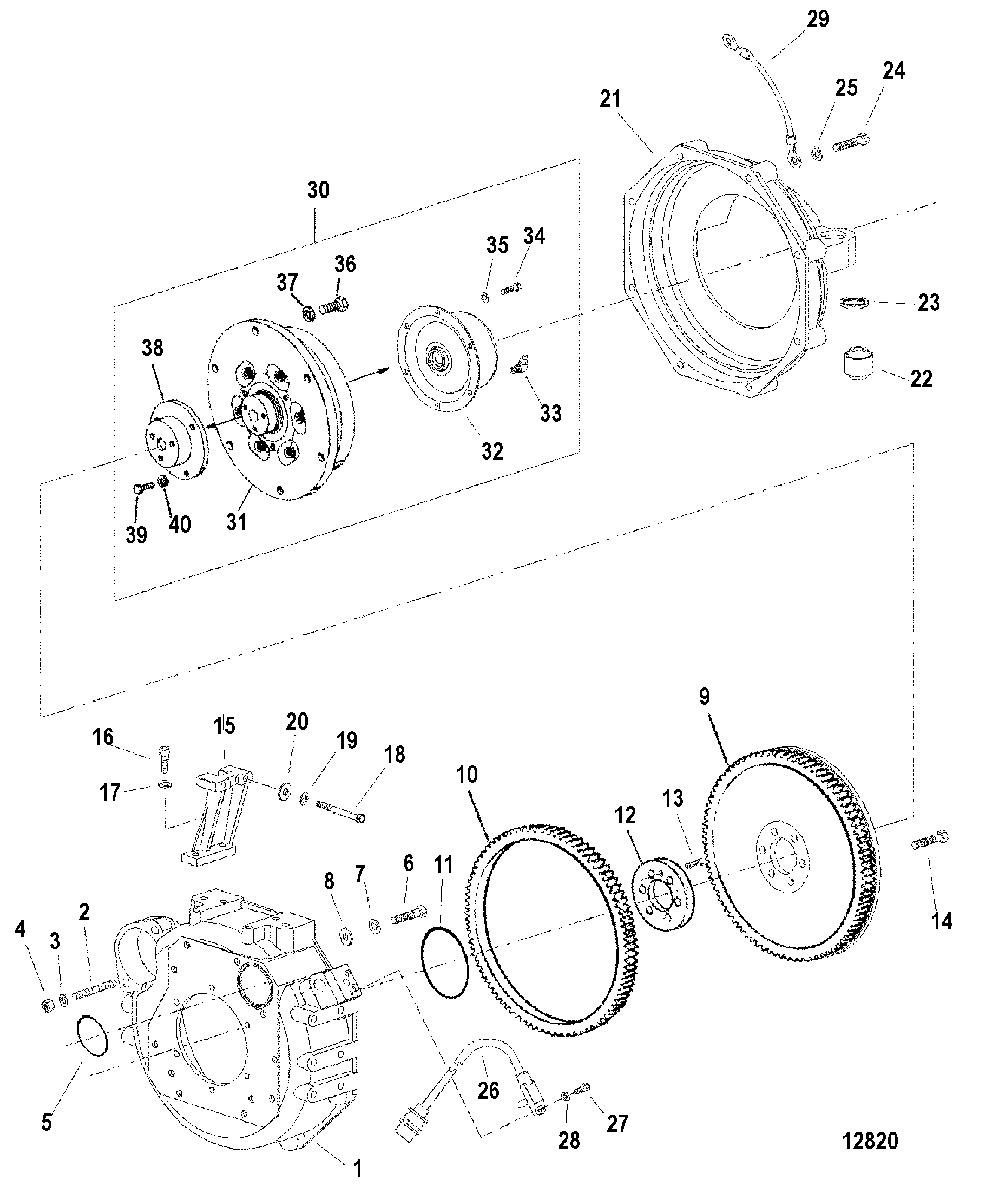

FLYWHEEL HOUSING(STERN DRIVE) для Mercruiser - D2.8L/165 D-TRONIC VM 169 I/L4 0K144109 THRU 0M999999

  • №
    Артикул
    Название
  • 1
    879710 HOUSING
    HOUSING
  • 2
    16-8M0048120 STUD
    STUD
  • 3
    13-8M0049895 LOCKWASHER
    LOCKWASHER
  • 4
    11-8M0048118 NUT
    NUT
  • 5
    25-801331619 O-RING
    O-RING
  • 6
    10-898101563 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 7
    13-809932112 LOCKWASHER
    LOCKWASHER
  • 8
    12-811459 WASHER
    WASHER
  • 9
    265-855468 FLYWHEEL
    (2.8L)
    FLYWHEEL
    (2.8L)
  • 9
    265-854107 FLYWHEEL
    (4.2L)
    FLYWHEEL
    (4.2L)
  • 10
    43-801331701 RING GEAR
    RING GEAR
  • 11
    25-811498 O-RING
    (2.8L) SN# 0L098203 & Below
    O-RING
    (2.8L) SN# 0L098203 & Below
  • 11
    25-811498 O-RING
    (4.2L) SN# 0L099524 & Below
    O-RING
    (4.2L) SN# 0L099524 & Below
  • 11
    25-884028 O-RING
    (2.8L) SN# 0L098204 & Up
    O-RING
    (2.8L) SN# 0L098204 & Up
  • 11
    25-884028 O-RING
    (4.2L) SN# 0L099525 & Up
    O-RING
    (4.2L) SN# 0L099525 & Up
  • 12
    855452 SPACER
    (2.8L)(4.2L) SN# 0L098203 & Below
    SPACER
    (2.8L)(4.2L) SN# 0L098203 & Below
  • 12
    855452 SPACER
    (4.2L) SN# 0L099524 & Below
    SPACER
    (4.2L) SN# 0L099524 & Below
  • 12
    889030 SPACER, Flywheel
    (2.8L) SN# 0L098204 & Up
    SPACER, Flywheel
    (2.8L) SN# 0L098204 & Up
  • 12
    889030 SPACER, Flywheel
    (4.2L) SN# 0L099525 & Up
    SPACER, Flywheel
    (4.2L) SN# 0L099525 & Up
  • 13
    10-801331698 SCREW, (M4 x 10)
    SCREW, (M4 x 10)
  • 14
    10-879711 SCREW
    SCREW
  • 15
    889922 BRACKET
    BRACKET
  • 16
    10-898101534 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 17
    13-809932110 LOCKWASHER
    LOCKWASHER
  • 18
    10-811456 SCREW
    SCREW
  • 19
    13-811460 LOCKWASHER
    LOCKWASHER
  • 20
    12-811455 WASHER
    WASHER
  • 21
    898272024 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 22
    865330A02 MOUNT, Rubber
    MOUNT, Rubber
  • 23
    23-99322 SPACER
    SPACER
  • 24
    10-40001206 SCREW, (M10 x 50)
    SCREW, (M10 x 50)
  • 25
    13-879194382 LOCKWASHER
    LOCKWASHER
  • 26
    87-854109 SENSOR, Engine RPM
    SENSOR, Engine RPM
  • 27
    10-898101524 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 28
    12-8M0129782 WASHER
    WASHER
  • 29
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black
    CABLE ASSEMBLY, Ground (13.00 Inches) Black
  • 30
    18311A10 COUPLING ASSEMBLY
    (Hub + 2 stage coupler)
    COUPLING ASSEMBLY
    (Hub + 2 stage coupler)
  • 31
    805735A6 COUPLING ASSEMBLY
    (2 Stage Coupler)
    COUPLING ASSEMBLY
    (2 Stage Coupler)
  • 32
    805684A2 COUPLING
    COUPLING
  • 33
    22-49099 FITTING
    FITTING
  • 34
    10-40001189 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 35
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 36
    10-898101564 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 37
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 38
    805731 COUPLER
    COUPLER
  • 39
    10-4000175 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 40
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • -
    27-898300001 GASKET SET, Overhaul
    (2.8L) SN# 0K144109 THRU 0L098058
    GASKET SET, Overhaul
    (2.8L) SN# 0K144109 THRU 0L098058
  • -
    27-879684 GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
    GASKET SET, Overhaul
    (2.8L) SN# 0L098059 & Up
  • -
    27-898300006 GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
    GASKET SET, Overhaul
    (4.2L) SN# 0K144114 THRU 0L098231
  • -
    27-898272016 GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
    GASKET SET, Overhaul
    (4.2L) SN# 0L098032 & Up
