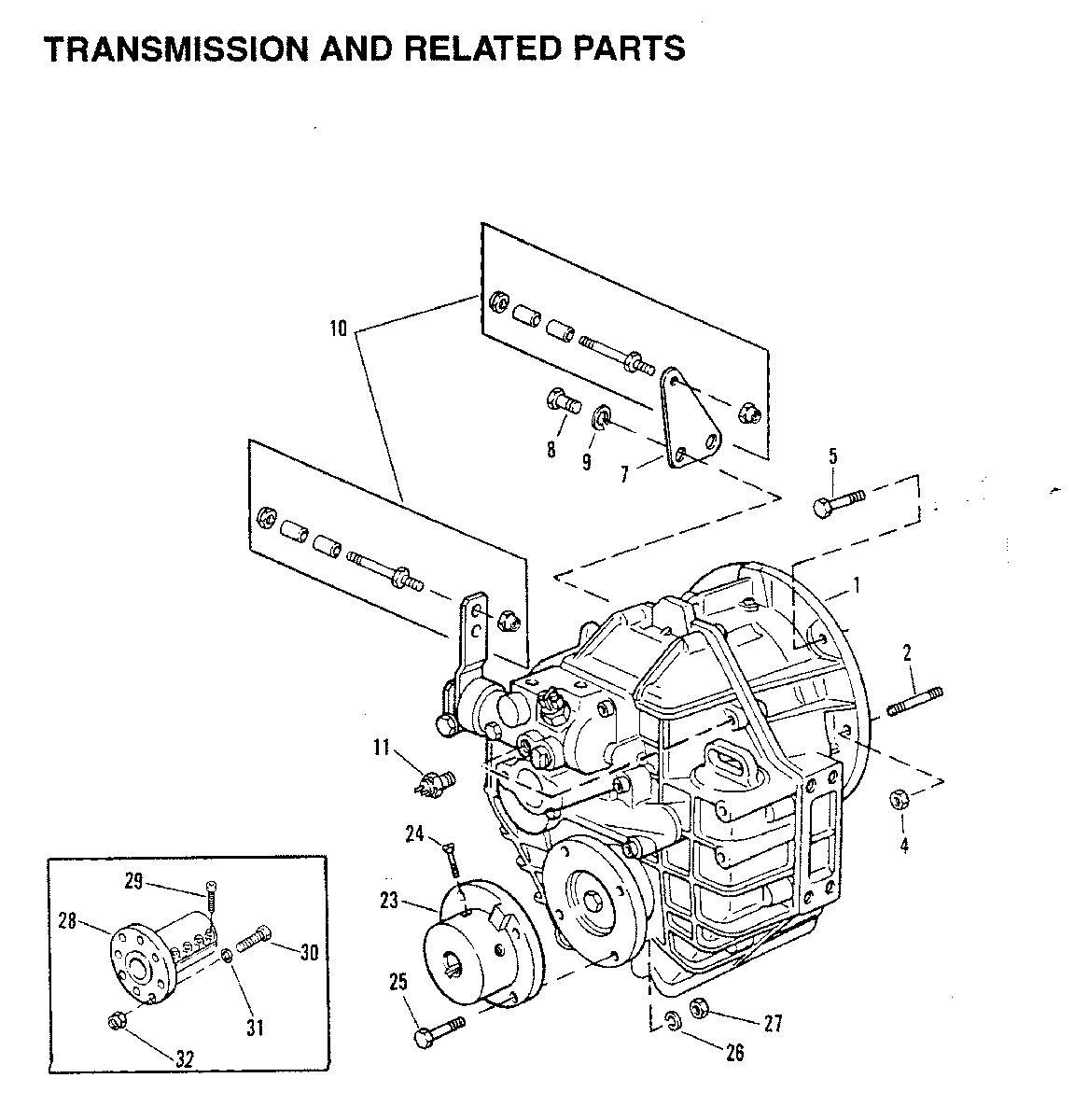

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - D254 TURBO AC VM 254 I/L6 1990-1993 0C849461 THRU 0D554731

  • №
    Артикул
    Название
  • 1
    863744T2 TRANSMISSION (1.5:1 RATIO) (DIRECT DRIVE)
    TRANSMISSION (1.5:1 RATIO) (DIRECT DRIVE)
  • 1
    863744T3 TRANSMISSION (2.0:1 RATIO) (DIRECT DRIVE)
    TRANSMISSION (2.0:1 RATIO) (DIRECT DRIVE)
  • 1
    863744T4 TRANSMISSION (2.5:1 RATIO) (DIRECT DRIVE)
    TRANSMISSION (2.5:1 RATIO) (DIRECT DRIVE)
  • 1
    863745T2 TRANSMISSION (1.5:1 RATIO) (V-DRIVE)
    TRANSMISSION (1.5:1 RATIO) (V-DRIVE)
  • 1
    863745T3 TRANSMISSION (2.0:1 RATIO) (V-DRIVE)
    TRANSMISSION (2.0:1 RATIO) (V-DRIVE)
  • 1
    863745T4 TRANSMISSION (2.5:1 RATIO) (V-DRIVE)
    TRANSMISSION (2.5:1 RATIO) (V-DRIVE)
  • 2
    16-910002 STUD
    STUD
  • 4
    11-809922113 NUT
    NUT
  • 5
    10-809913837 SCREW
    SCREW
  • 7
    806238 BRACKET
    BRACKET
  • 8
    10-809919969 SCREW
    SCREW
  • 9
    12-879194141 LOCKWASHER
    LOCKWASHER
  • 10
    16-97477A3 STUD KIT
    STUD KIT
  • 11
    87-88031 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 23
    79476A1 FLANGE ASSEMBLY (1") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1") (USE WITH ENGLISH SHAFT)
  • 23
    79476A2 FLANGE ASSEMBLY (1-1/8") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1-1/8") (USE WITH ENGLISH SHAFT)
  • 23
    79476A3 FLANGE ASSEMBLY (1-1/4") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1-1/4") (USE WITH ENGLISH SHAFT)
  • 23
    79476A4 FLANGE ASSEMBLY (1-3/8") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1-3/8") (USE WITH ENGLISH SHAFT)
  • 23
    79476A5 FLANGE ASSEMBLY (1-1/2") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1-1/2") (USE WITH ENGLISH SHAFT)
  • 23
    79476A6 FLANGE ASSEMBLY (1-3/4") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (1-3/4") (USE WITH ENGLISH SHAFT)
  • 23
    79476A7 FLANGE ASSEMBLY (2") (USE WITH ENGLISH SHAFT)
    FLANGE ASSEMBLY (2") (USE WITH ENGLISH SHAFT)
  • 24
    10-60171 SCREW (1-1/4") (USE WITH ENGLISH SHAFT)
    SCREW (1-1/4") (USE WITH ENGLISH SHAFT)
  • 24
    10-60169 SCREW (3/4") (USE WITH ENGLISH SHAFT)
    SCREW (3/4") (USE WITH ENGLISH SHAFT)
  • 25
    10-805159 SCREW (1-1/2") (USE WITH ENGLISH SHAFT)
    SCREW (1-1/2") (USE WITH ENGLISH SHAFT)
  • 26
    13-32993 LOCKWASHER (USE WITH ENGLISH SHAFT)
    LOCKWASHER (USE WITH ENGLISH SHAFT)
  • 27
    11-22024 NUT (USE WITH ENGLISH SHAFT)
    NUT (USE WITH ENGLISH SHAFT)
  • 28
    19559A1 FLANGE (30MM) (USE WITH METRIC SHAFT)
    FLANGE (30MM) (USE WITH METRIC SHAFT)
  • 28
    19560A1 FLANGE (35MM) (USE WITH METRIC SHAFT)
    FLANGE (35MM) (USE WITH METRIC SHAFT)
  • 28
    19561A1 FLANGE (40MM) (USE WITH METRIC SHAFT)
    FLANGE (40MM) (USE WITH METRIC SHAFT)
  • 28
    19562A1 FLANGE (45MM) (USE WITH METRIC SHAFT)
    FLANGE (45MM) (USE WITH METRIC SHAFT)
  • 29
    10-4007640 SCREW (USE WITH METRIC SHAFT)
    SCREW (USE WITH METRIC SHAFT)
  • 30
    10-40001260 SCREW (USE WITH METRIC SHAFT)
    SCREW (USE WITH METRIC SHAFT)
  • 31
    13-400249 LOCKWASHER (USE WITH METRIC SHAFT)
    LOCKWASHER (USE WITH METRIC SHAFT)
  • 32
    11-4002016 NUT (USE WITH METRIC SHAFT)
    NUT (USE WITH METRIC SHAFT)
