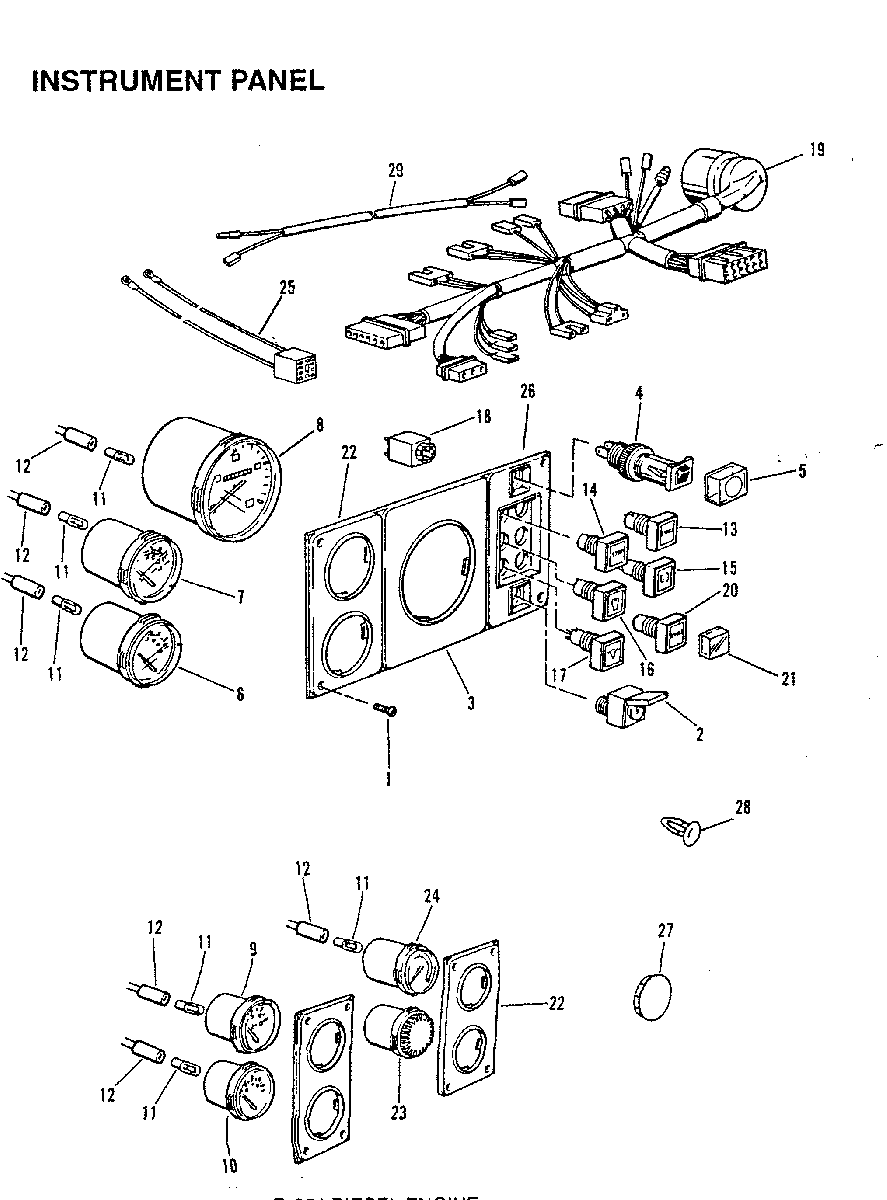

INSTRUMENT PANEL для Mercruiser - D254 TURBO AC VM 254 I/L6 1990-1993 0C849461 THRU 0D554731

  • №
    Артикул
    Название
  • -
    801764122 INSTRUMENT PANEL ASSEMBLY
    QUANTITIES: (STRN DRV) - 1; (INB) - 0
    INSTRUMENT PANEL ASSEMBLY
    QUANTITIES: (STRN DRV) - 1; (INB) - 0
  • -
    801764123 INSTRUMENT PANEL ASSEMBLY
    QUANTIITES: (STRN DRV) - ; (INB) - 1
    INSTRUMENT PANEL ASSEMBLY
    QUANTIITES: (STRN DRV) - ; (INB) - 1
  • 1
    10-809902520 SCREW
    QUANTITIES: (STRN DRV)-20; (INB) - 20
    SCREW
    QUANTITIES: (STRN DRV)-20; (INB) - 20
  • 2
    87-801334117 IGNITION SWITCH (SEE CHART FOR KEY)
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    IGNITION SWITCH (SEE CHART FOR KEY)
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 3
    801334100 INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 4
    87-816401 CIRCUIT BREAKER
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    CIRCUIT BREAKER
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 5
    801334308 COVER
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    COVER
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 6
    79-801334121 WATER TEMPERATURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    WATER TEMPERATURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 7
    79-801334120 VOLTMETER GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    VOLTMETER GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 8
    79-817489 TACHOMETER GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    TACHOMETER GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 9
    79-801334126 OIL TEMPERATURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    OIL TEMPERATURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 10
    79-801334125 OIL PRESSURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) -1
    OIL PRESSURE GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) -1
  • 11
    809978254 LIGHT BULB
    QUANTITIES: (STRN DRV) - 6; (INB) -5
    LIGHT BULB
    QUANTITIES: (STRN DRV) - 6; (INB) -5
  • 11
    809978254 LIGHT BULB
    QUANTITIES: (STRN DRV) - 6; (INB) - 6
    LIGHT BULB
    QUANTITIES: (STRN DRV) - 6; (INB) - 6
  • 12
    802982204 SOCKET
    QUANTITIES: (STRN DRV) -6; (INB) - 6
    SOCKET
    QUANTITIES: (STRN DRV) -6; (INB) - 6
  • 12
    802982204 SOCKET
    QUANTITIES: (STRN DRV) -6; (INB) - 6
    SOCKET
    QUANTITIES: (STRN DRV) -6; (INB) - 6
  • 13
    87-801334110 START SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
    START SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB) - 1
  • 14
    87-801334114 STOP SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    STOP SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 15
    816404 PREHEATER INDICATOR LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    PREHEATER INDICATOR LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 16
    816402 CHARGING INDICATOR LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    CHARGING INDICATOR LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 17
    816403 OIL PRESSURE WARNING LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    OIL PRESSURE WARNING LAMP
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 18
    801334113 TOUCH CONTACTOR
    QUANTITIES: (STRN DRV) - 3; (INB)- 3
    TOUCH CONTACTOR
    QUANTITIES: (STRN DRV) - 3; (INB)- 3
  • 19
    84-801764124 HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 20
    87-801764125 TRAILERING SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB) -
    TRAILERING SWITCH
    QUANTITIES: (STRN DRV) - 1; (INB) -
  • 21
    87-801334110 COVER
    QUANTITIES: (STRN DRV) - 3; (INB) -3
    COVER
    QUANTITIES: (STRN DRV) - 3; (INB) -3
  • 22
    801334124 INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 3; (INB) -3
    INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 3; (INB) -3
  • 23
    801334129 BUZZER
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    BUZZER
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 24
    79-812391 TRIM INDICATOR GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) -
    TRIM INDICATOR GAUGE
    QUANTITIES: (STRN DRV) - 1; (INB) -
  • 25
    84-812694 OVERRIDE HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB) -
    OVERRIDE HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB) -
  • 26
    813905 INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    INSTRUMENT PANEL
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 27
    801334216 COVER
    QUANTITIES: (STRN DRV) - ; (INB) -1
    COVER
    QUANTITIES: (STRN DRV) - ; (INB) -1
  • 28
    19-812390 PLUG
    QUANTITIES: (STRN DRV) - ; (INB) -1
    PLUG
    QUANTITIES: (STRN DRV) - ; (INB) -1
  • 29
    32-801764018 HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
    HARNESS
    QUANTITIES: (STRN DRV) - 1; (INB)- 1
  • 801334401 KEY 93401
    KEY 93401
  • 801334402 KEY 93402
    KEY 93402
  • 801334403 KEY 93403
    KEY 93403
  • 801334404 KEY 93404
    KEY 93404
  • 801334405 KEY 93405
    KEY 93405
  • 801334406 KEY 93406
    KEY 93406
  • 801334407 KEY 93407
    KEY 93407
  • 801334408 KEY 93408
    KEY 93408
  • 801334409 KEY 93409
    KEY 93409
  • 801334410 KEY 93410
    KEY 93410
  • 801334411 KEY 93411
    KEY 93411
  • 801334412 KEY 93412
    KEY 93412
  • 801334413 KEY 93413
    KEY 93413
  • 801334414 KEY 93414
    KEY 93414
  • 801334415 KEY 93415
    KEY 93415
  • 801334416 KEY 93416
    KEY 93416
  • 801334417 KEY 93417
    KEY 93417
  • 801334418 KEY 93418
    KEY 93418
  • 801334419 KEY 93419
    KEY 93419
  • 801334420 KEY 93420
    KEY 93420
  • 801334421 KEY 93421
    KEY 93421
  • 801334422 KEY 93422
    KEY 93422
  • 801334423 KEY 93423
    KEY 93423
  • 801334424 KEY 93424
    KEY 93424
  • 801334425 KEY 93425
    KEY 93425
