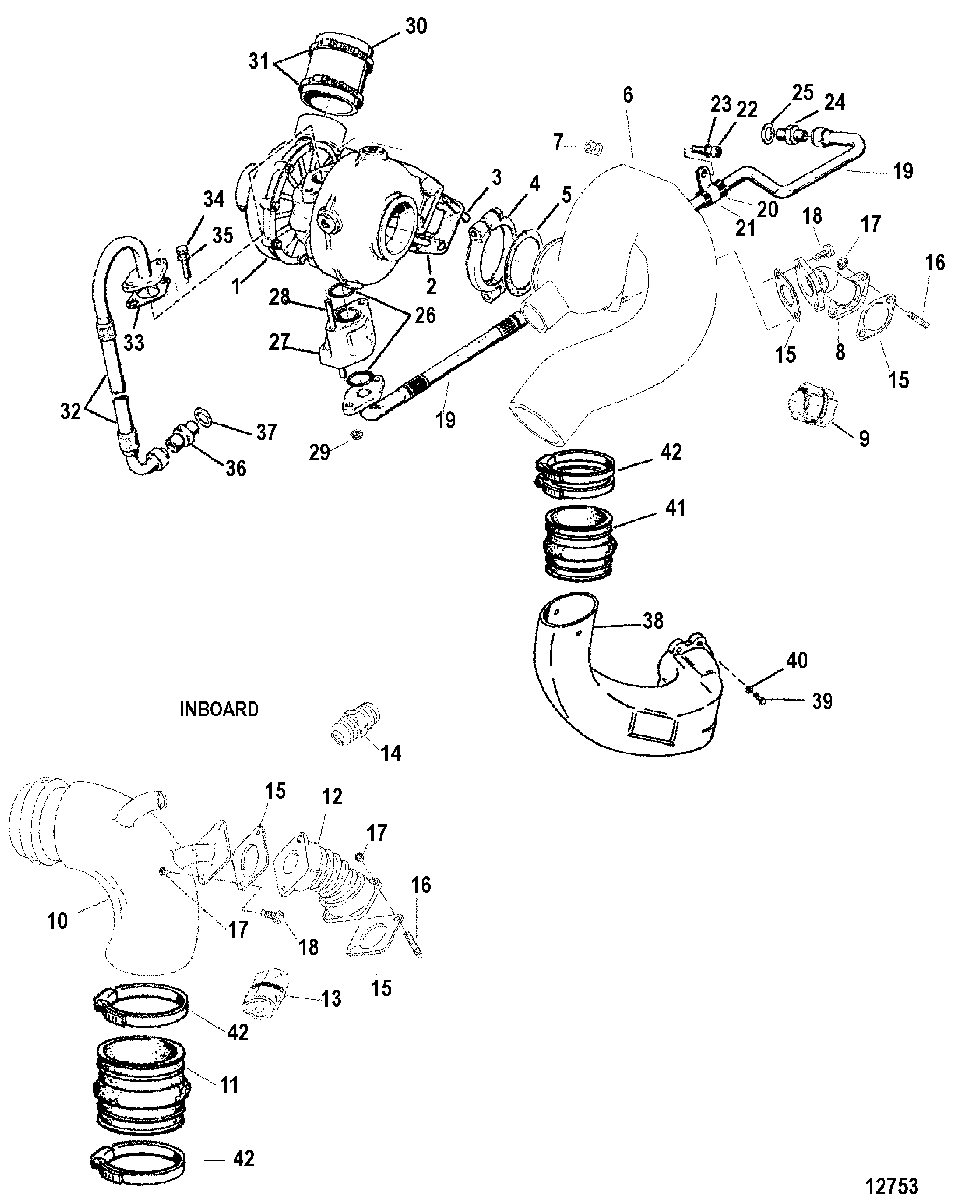

Turbocharger and Exhaust Elbow для Mercruiser - CMD 4.2 EI 300 VM 254 I/L6 88050001 THRU 88050643
-
№АртикулНазвание
-
18M0098619 TURBOCHARGERTURBOCHARGER
-
227-8M0094247 GASKETGASKET
-
316-8M0073963 STUD, (M10 x 30)STUD, (M10 x 30)
-
454-864148A01 CLAMPCLAMP
-
527-817089 GASKETGASKET
-
6805265A1 ELBOW, Exhaust
(STERNDRIVE)ELBOW, Exhaust
(STERNDRIVE) -
722-36382 FITTING, (.250-18 x .62) Brass, Plug
(STERNDRIVE)FITTING, (.250-18 x .62) Brass, Plug
(STERNDRIVE) -
8807049T FLEX TUBE
(STERNDRIVE)FLEX TUBE
(STERNDRIVE) -
9855483 BLANKET
(STERNDRIVE)BLANKET
(STERNDRIVE) -
10803609001 ELBOW, Exhaust (33 Degree), Down Angle
(Inboard)ELBOW, Exhaust (33 Degree), Down Angle
(Inboard) -
1132-860602 TUBE, Exhaust, RubberTUBE, Exhaust, Rubber
-
12879172157 FLEX TUBEFLEX TUBE
-
13855483 BLANKETBLANKET
-
1422-805315 CONNECTORCONNECTOR
-
1527-879721 GASKETGASKET
-
1616-898101517 STUD, (M8 x 20)STUD, (M8 x 20)
-
1711-854037 NUT, (M8)NUT, (M8)
-
1810-898101555 SCREW, (M8 x 20)
(STERNDRIVE)SCREW, (M8 x 20)
(STERNDRIVE) -
1810-898101556 SCREW, (M8 x 25)
(INBOARD)SCREW, (M8 x 25)
(INBOARD) -
1932-854130 PIPE, Oil, ReturnPIPE, Oil, Return
-
2023-811466 SLEEVESLEEVE
-
2154-811467 CLIPCLIP
-
2210-811463 SCREWSCREW
-
2313-811460 LOCKWASHERLOCKWASHER
-
2422-801333464 FITTINGFITTING
-
2525-809963342 O-RINGO-RING
-
2625-811461 O-RINGO-RING
-
27889919 SPACER, Oil LineSPACER, Oil Line
-
2816-801333451 STUD, (M8 x 90)STUD, (M8 x 90)
-
2911-854037 NUT, (M8)NUT, (M8)
-
3032-811464 HOSEHOSE
-
3154-811435 CLAMPCLAMP
-
3232-889883 PIPE, Oil, DeliveryPIPE, Oil, Delivery
-
3327-854133 GASKETGASKET
-
3410-898101555 SCREWSCREW
-
3513-811460 LOCKWASHERLOCKWASHER
-
3622-801763389 FITTINGFITTING
-
3712-889153 WASHERWASHER
-
38805013T1 PIPE, Exhaust
(STERNDRIVE)PIPE, Exhaust
(STERNDRIVE) -
3910-8M0113174 SCREW, (.375-16 x 1.25)
(STERNDRIVE)SCREW, (.375-16 x 1.25)
(STERNDRIVE) -
4013-41471 LOCKWASHER, (.375)
(STERNDRIVE)LOCKWASHER, (.375)
(STERNDRIVE) -
4132-44348001 TUBE, Exhaust, Rubber
(STERNDRIVE)TUBE, Exhaust, Rubber
(STERNDRIVE) -
4254-815504272 CLAMP, Worm GearCLAMP, Worm Gear
-
-27-898272016 GASKET SET, OverhaulGASKET SET, Overhaul
