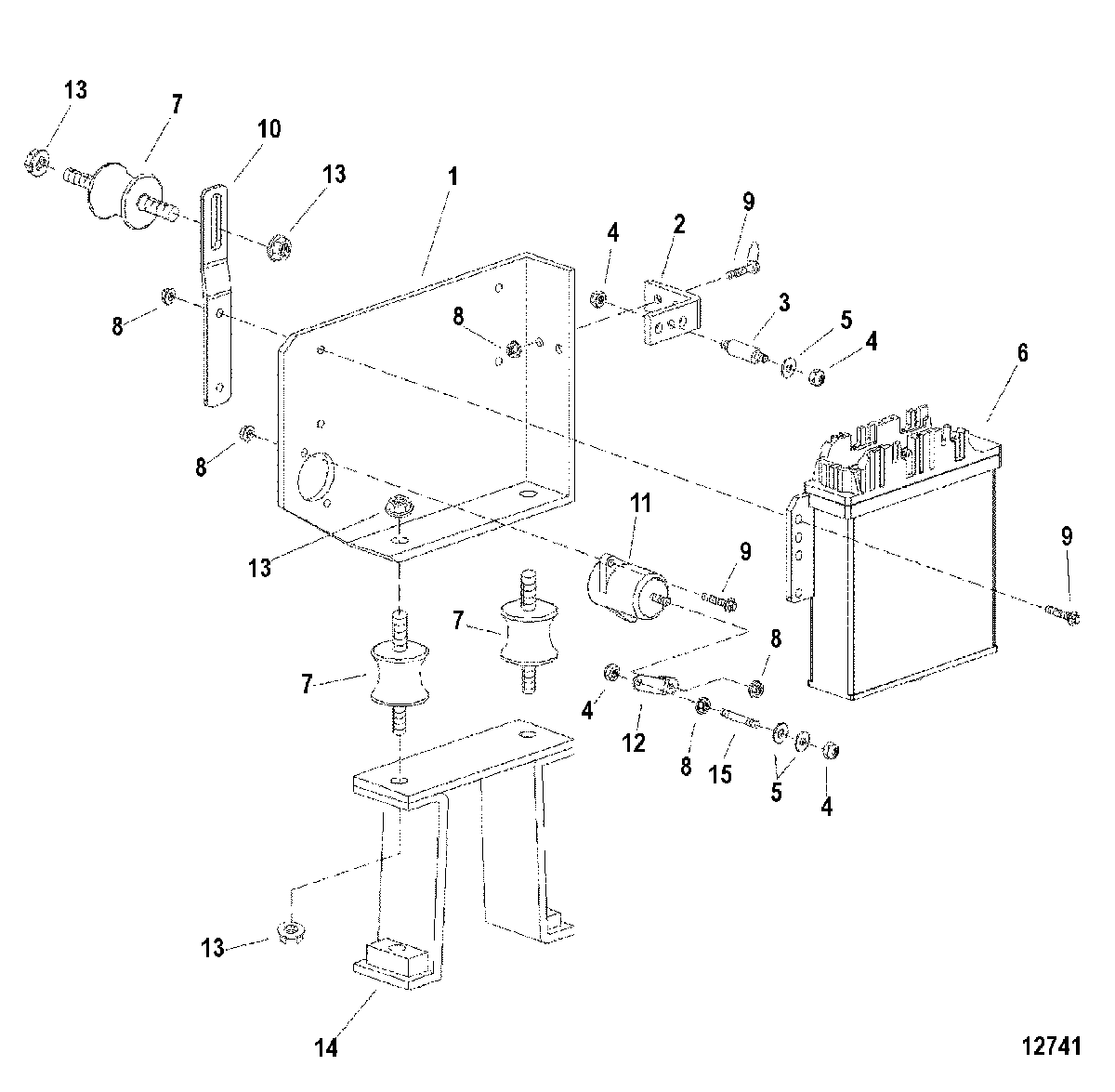

Control Unit and Bracket , Old Design For ECM Location для Mercruiser - CMD 4.2 EI 300 VM 254 I/L6 88050001 THRU 88050643

  • №
    Артикул
    Название
  • 1
    854025 BRACKET, Control Unit
    BRACKET, Control Unit
  • 2
    854026 BRACKET, Remote Control Unit
    BRACKET, Remote Control Unit
  • 3
    16-854027 STUD, Remote Control Cable
    STUD, Remote Control Cable
  • 4
    11-854028 LOCKNUT
    LOCKNUT
  • 5
    12-854029 WASHER
    WASHER
  • 6
    889891002 CONTROL ASSEMBLY, Engine
    CONTROL ASSEMBLY, Engine
  • 6
    889891002 CONTROL ASSEMBLY, Engine
    CONTROL ASSEMBLY, Engine
  • 7
    854031 SUPPORT
    SUPPORT
  • 8
    11-898101541 NUT, (M6)
    NUT, (M6)
  • 9
    10-855511 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 10
    854034 BRACKET, Upper Control Unit
    BRACKET, Upper Control Unit
  • 11
    854035 TPS
    TPS
  • 12
    854036 LEVER, Throttle Position Sensor
    LEVER, Throttle Position Sensor
  • 13
    11-854037 NUT, (M8)
    NUT, (M8)
  • 14
    854038 SUPPORT, Control Unit Bracket
    (STERNDRIVE)
    SUPPORT, Control Unit Bracket
    (STERNDRIVE)
  • 14
    860598 SUPPORT, Control Unit Bracket
    (INBOARD)
    SUPPORT, Control Unit Bracket
    (INBOARD)
  • 15
    16-854039 STUD, TPS Lever
    STUD, TPS Lever
